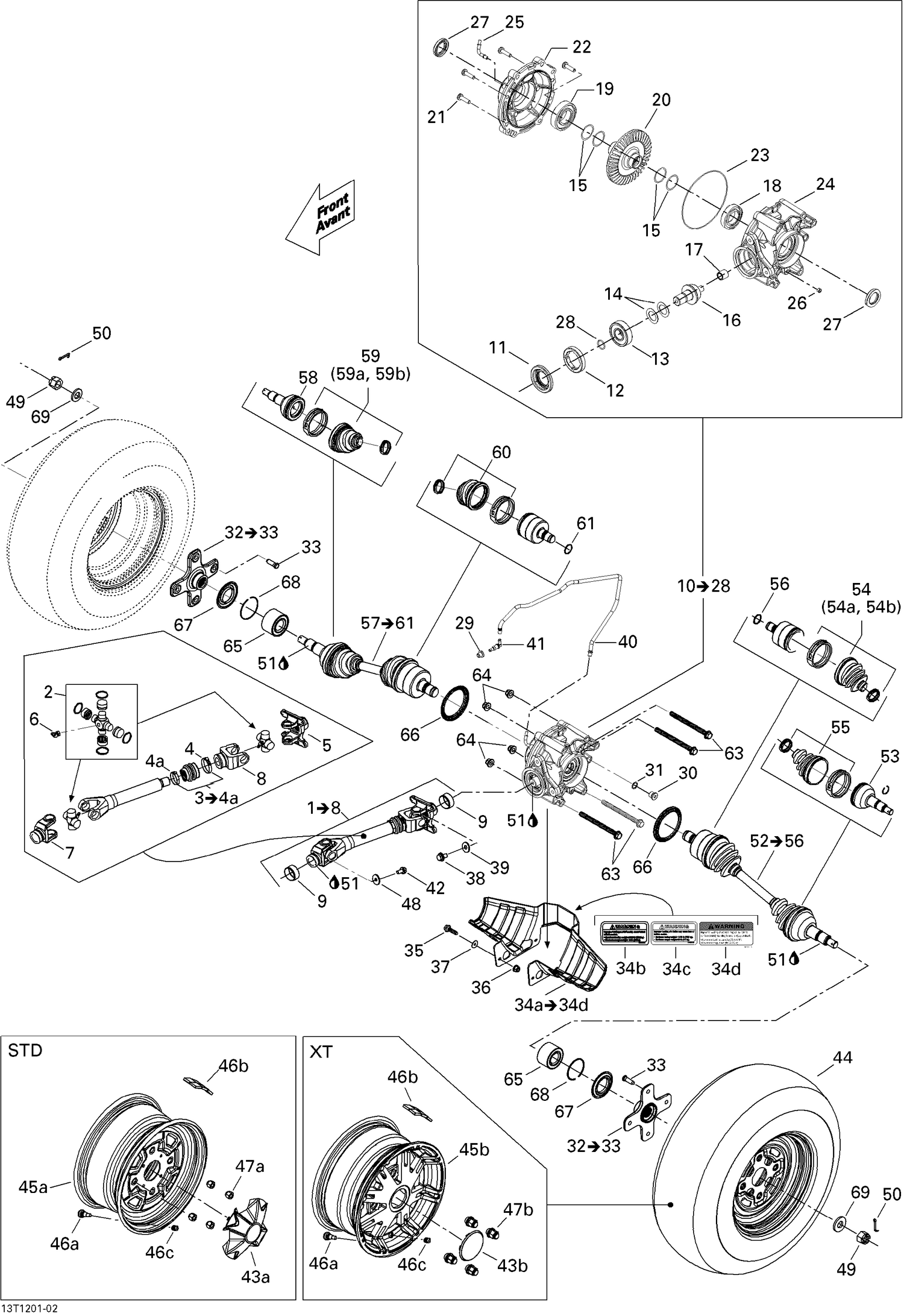

| Ref | Part Number | Description |
|---|
| 2 |
715900325 |
Ens. Croix*U-Joint Cross Kit This part replaces 703000024. |
| 3 |
715900067 |
GREASE FITTING - Call your local BRP dealership |
| 4 |
703500255 |
Rubber Boot Kit |
| 4a |
293650138 |
Oetiker Gear Clamp 44.0MM |
| 5 |
705500351 |
DISC JOINT - Call your local BRP dealership |
| 6 |
715900067 |
GREASE FITTING - Call your local BRP dealership |
| 7 |
715900116 |
Fixed Yoke Joint This part replaces 705500348. |
| 8 |
705500762 |
Slip Joint |
| 9 |
705400036 |
Wear Ring |
| 11 |
705401481 |
Oil Seal This part replaces 705400027. |
| 12 |
705502059 |
Nut This part replaces 705500987. |
| 13 |
705500260 |
Ball Bearing |
| 14 |
705500075 |
Pinion Gear Shim .022" |
| 14 |
705501162 |
Pinion Gear Shim This part replaces 705501163. |
| 14 |
705502061 |
Pinion Gear Shim 1.67 mm This part replaces 703500049. |
| 15 |
705502060 |
Differential Shim 0.02 mm This part replaces 703500548. |
| 16 |
703500873 |
Gear-10/36 Too Kit This part replaces 705501570. |
| 17 |
705501408 |
Needle Bearing |
| 18 |
705502737 |
Ball Bearing This part replaces 705500749. |
| 19 |
705502738 |
Ball Bearing This part replaces 705501389. |
| 20 |
703500873 |
Gear-10/36 Too Kit This part replaces 705501403. |
| 21 |
705401601 |
Screw This part replaces 705500892. |
| 22 |
705501507 |
REAR DIFFERENTIAL COVER - Call your local BRP dealership |
| 23 |
705500265 |
Seal |
| 24 |
705501395 |
PINION REAR COVER - Call your local BRP dealership |
| 25 |
705500893 |
VENT VALVE - Call your local BRP dealership |
| 26 |
705500894 |
Drain Plug |
| 27 |
705501996 |
Oil Seal This part replaces 705501196. |
| 28 |
705500267 |
O-Ring |
| 29 |
293720029 |
Grommet |
| 30 |
705500504 |
Fill Level Plug This part replaces 250400041. |
| 31 |
705500506 |
Copper Washer |
| 33 |
250300055 |
Wheel Stud M10 X 1.25 This part replaces 250300034. |
| 34b |
704900766 |
WARNING DECAL-ENGLISH-TRAILER - Call your local BRP dealership This part replaces 704900009. |
| 34c |
Not |
Available As Spare Part - French Warning Label |
| 34d |
704901905 |
WARNING DECAL, TRAILER - Call your local BRP dealership This part replaces 704901489. |
| 35 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 36 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 37 |
250200082 |
Flat Washer |
| 38 |
250000378 |
HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership |
| 39 |
250200102 |
Flat Washer M12 |
| 40 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 41 |
414580600 |
Elbow Male Connector |
| 42 |
207581646 |
Hex. Flange Screw M8 X 16, Scotch Grip |
| 46a |
705400193 |
Rim Valve With Cap |
| 46c |
293000110 |
Valve Cap |
| 48 |
211200041 |
Washer |
| 49 |
232291413 |
Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 50 |
250400036 |
Cotter Pin |
| 53 |
705500978 |
CV JOINT - Call your local BRP dealership |
| 54a |
293650192 |
OETIKER CLAMP 23MM - Call your local BRP dealership |
| 54b |
715900139 |
OETIKER CLAMP 71,1MM - Call your local BRP dealership |
| 55 |
705500907 |
Wheel Boot Kit |
| 56 |
705500845 |
CIRCLIP - Call your local BRP dealership |
| 58 |
705500978 |
CV JOINT - Call your local BRP dealership |
| 59a |
293650192 |
OETIKER CLAMP 23MM - Call your local BRP dealership |
| 59b |
715900139 |
OETIKER CLAMP 71,1MM - Call your local BRP dealership |
| 60 |
705500929 |
Wheel Boot Kit |
| 61 |
705500845 |
CIRCLIP - Call your local BRP dealership |
| 63 |
250001041 |
Hex. Flange Screw M10 X 135 This part replaces 250000508. |
| 64 |
233201434 |
Hex. Flange Elastic Nut M10 |
| 65 |
293350150 |
Ball Bearing This part replaces 293350040. |
| 66 |
705500901 |
WEAR SLEEVE - Call your local BRP dealership |
| 67 |
705501121 |
Wear Sleeve |
| 68 |
293370019 |
Circlip |
