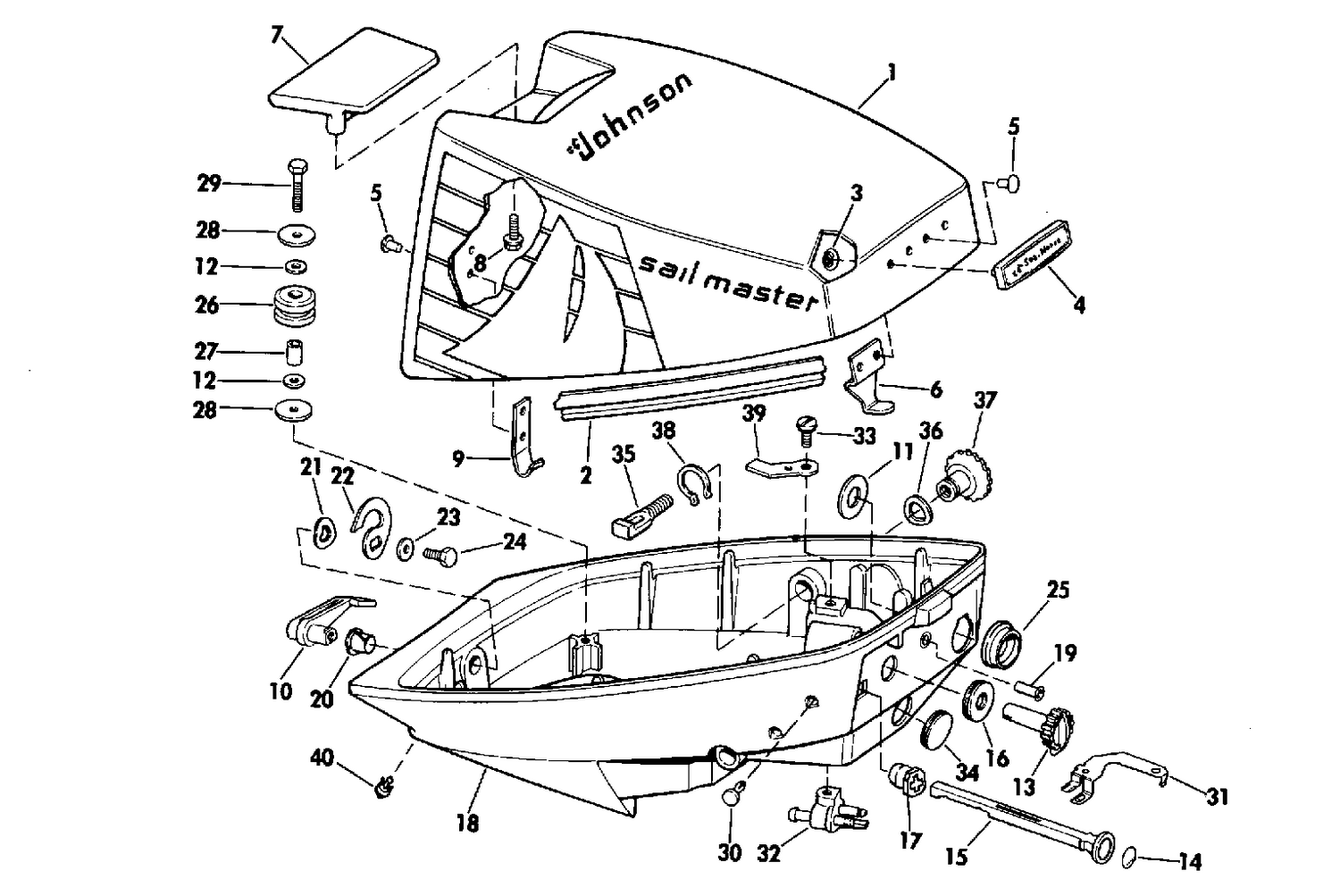

| Ref | Part Number | Description |
|---|
| 1 |
0390288 |
MOTOR COVER ASSEMBLY |
| 1 |
0390289 |
MOTOR COVER ASSEMBLY |
| 1 |
0390293 |
MOTOR COVER ASSEMBLY |
| 2 |
0331867 |
SEAL Engine cover This part replaces 0207843. |
| 4 |
0325763 |
APPLIQUE, Front This part replaces 0317087. |
| 5 |
0314135 |
RIVER, Locating bracket |
| 6 |
0391123 |
HOOK, Front This part replaces 0318880. |
| 9 |
0391124 |
HOOK, Rear This part replaces 0318881. |
| 10 |
0328767 |
HANDLE LATCH This part replaces 0318948. |
| 11 |
0319057 |
WASHER, Shorting switch |
| 13 |
0319152 |
ADJUSTING KNOB, Slow speed |
| 14 |
0323043 |
INSERT |
| 15 |
0319291 |
CHOKE KNOB |
| 16 |
0319131 |
GROMMET, Knob |
| 17 |
0320731 |
BUSHING, Choke knob |
| 18 |
0388887 |
ENGINE COVER, Lower |
| 19 |
0312979 |
EYELET |
| 20 |
0305581 |
BEARING, Thrust |
| 22 |
0319064 |
LATCH, Rear engine cover, lower |
| 24 |
0312241 |
SCREW, Trim/Tilt relay bracket |
| 26 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 27 |
0302406 |
SLEEVE |
| 29 |
0303398 |
VIS, support This part replaces 0302030. |
| 31 |
0336395 |
DETENT, Choke knob This part replaces 0324434. |
| 32 |
0393334 |
CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 33 |
0551706 |
SCREW |
| 35 |
0321996 |
SCREW, Idle adjustment |
| 36 |
0319058 |
SPRING WASHER, Idle adj |
| 37 |
0387272 |
KNOB & RETAINING RING, Idle adjustment |
| 38 |
0911316 |
RETAINING RING This part replaces 0313238. |
| 39 |
0320802 |
STOP, Idle adjustment |
| 40 |
0321885 |
NIPPLE |
| 0390337 |
0390337 |
DECAL SET |
| 0390338 |
0390338 |
DECAL SET |
| 0390339 |
0390339 |
DECAL SET |
