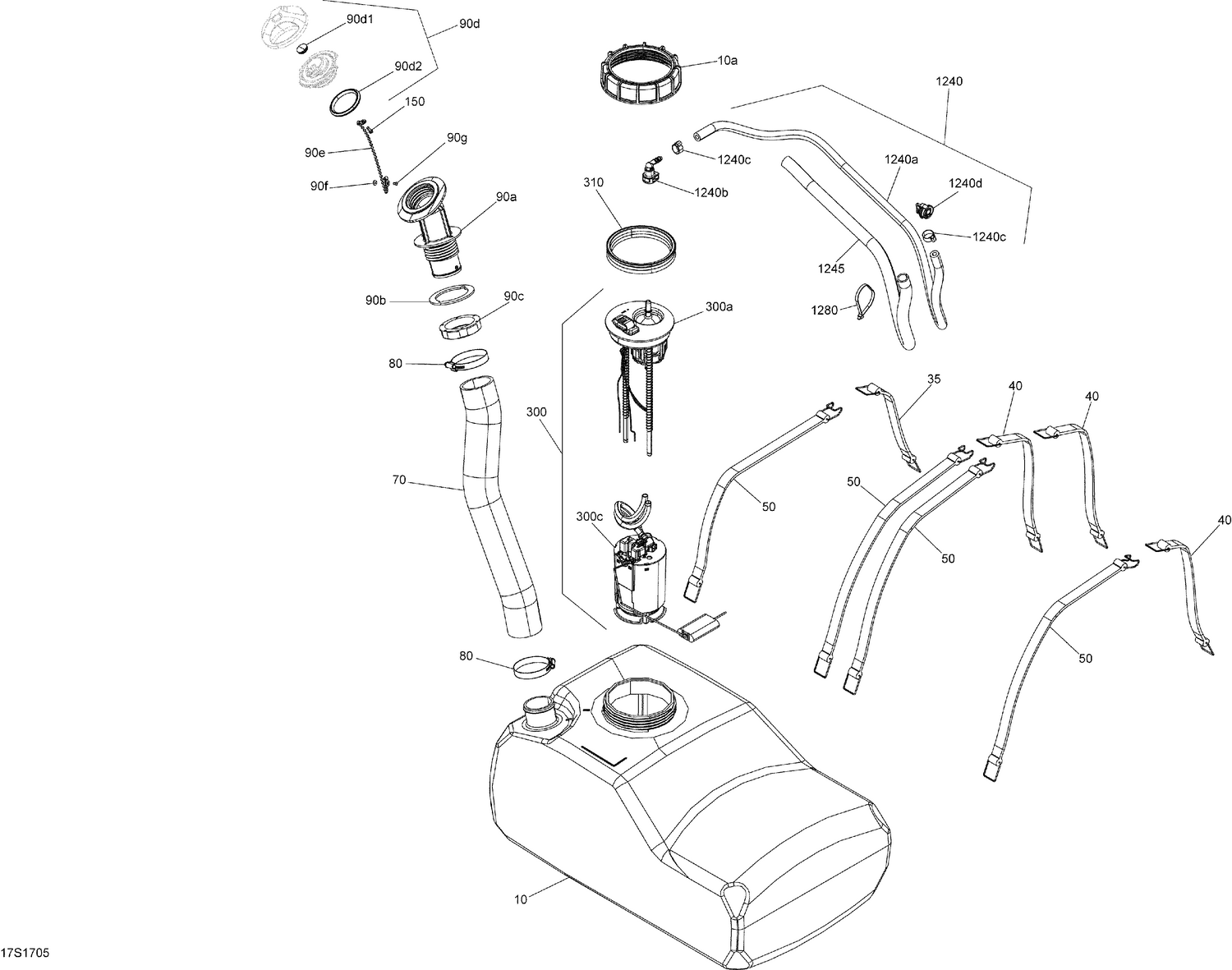

02- Fuel System - All Models
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 250100062 | Special Nut M130 |
| 35 | 293850087 | Fuel Tank Strap |
| 40 | 293850093 | Fuel Tank Strap |
| 50 | 293850101 | Fuel Tank Strap |
| 70 | 275500918 | Hose |
| 80 | 293650081 | Norma Clamp |
| 90a | 275500845 | Filler Neck |
| 90b | 293250029 | Gasket |
| 90c | 211100012 | Filler Neck Nut, Fuel |
| 90d1 | 293000034 | Black, Snap Cap |
| 90d2 | 293250417 | Gasket |
| 90e | 275500972 | Fuel Cap Chain |
| 90f | 234032600 | Flat Washer M3, Stainless |
| 90g | 390407900 | Pop Rivet 1/8" |
| 150 | 241140060 | Screw K40 X 10 |
| 300a | 275500780 | Sensor Lever |
| 300c | 270600113 | Fuel Filter This part replaces 270600108. |
| 310 | 293250173 | Gasket |
| 1240a | 219704395 | HOSE I.D. 7.9MM 3000MM LONG - Call your local BRP dealership |
| 1240b | 275500921 | Quick Disconnect |
| 1240c | 293650053 | Crimp Clamp |
| 1240d | 293710105 | Elbow Fitting 90° |
| 1245 | 219704408 | Tubing 16 Mm 1000Mm Long |
