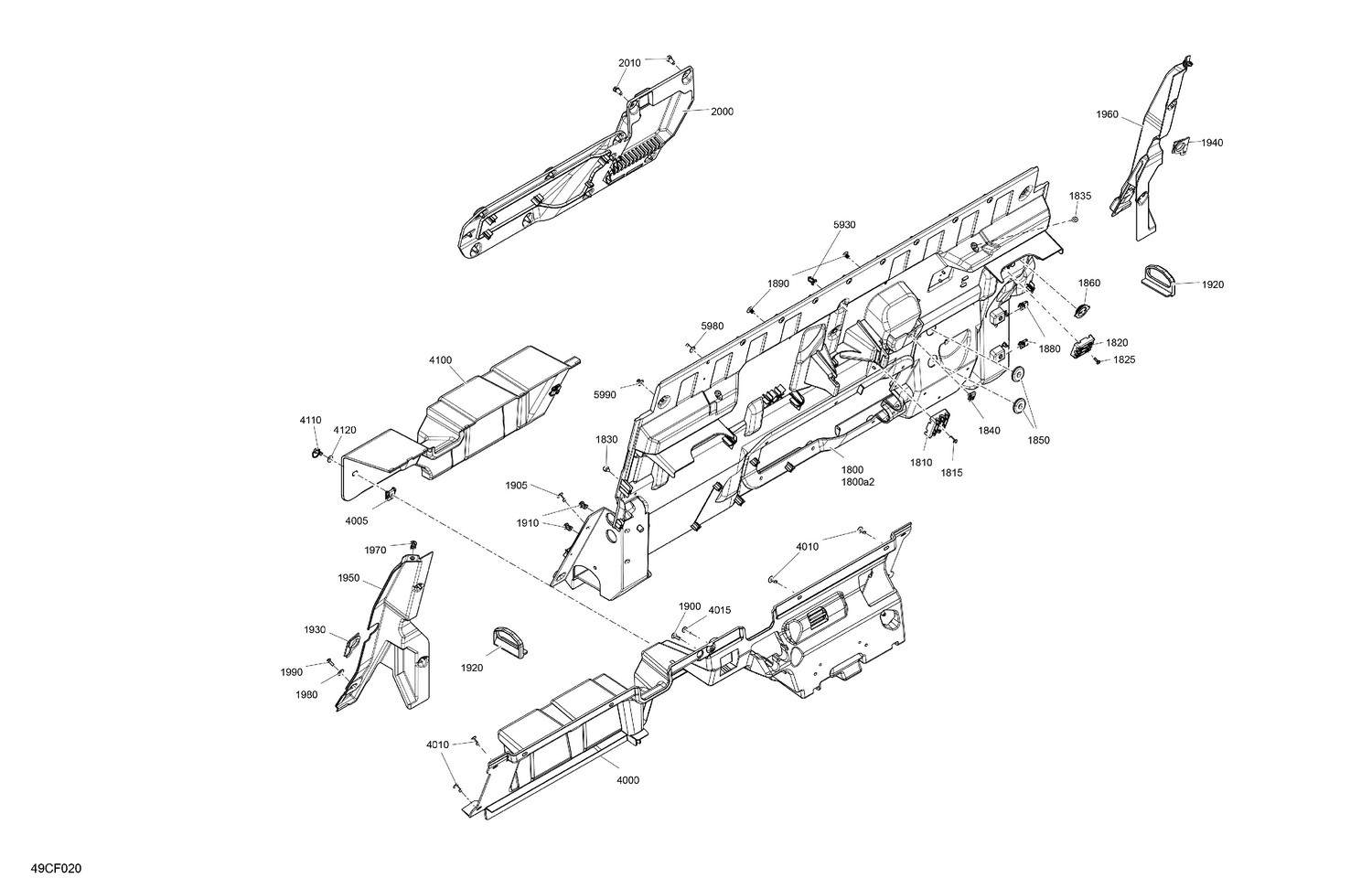

07- Cab Interior - Back Wall
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1800a2 | 707901101 | Rear Upper Cab Panel |
| 1810 | 707900788 | Hose Support |
| 1815 | 250000720 | Torx Screw K50 X 16 |
| 1820 | 707900788 | Hose Support |
| 1825 | 250000720 | Torx Screw K50 X 16 |
| 1830 | 293830005 | Rubber Bumper |
| 1835 | 293830005 | Rubber Bumper |
| 1840 | 250100198 | Panel Nut M6 X 1.0 |
| 1850 | 293720119 | Grommet |
| 1860 | 293000125 | Plug |
| 1880 | 250100198 | Panel Nut M6 X 1.0 |
| 1890 | 414644300 | Black, Dart |
| 1900 | 250000722 | Torx Screw M6 X 20 |
| 1905 | 293150306 | Black, Ornit Rivet 3/16 X ,800 |
| 1910 | 293150230 | Tuflok Plastic Rivet |
| 1920 | 707900774 | Panel Trim |
| 1930 | 707901080 | LH Panel Trim |
| 1940 | 707901081 | RH Panel Trim |
| 1950 | 707900766 | LH Upper Deflector |
| 1960 | 707900767 | RH Upper Deflector |
| 1970 | 293150230 | Tuflok Plastic Rivet |
| 1980 | 234062670 | Stainless Steel Flat Washer |
| 1990 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 2000 | 707900742 | Rear Access Cover |
| 2010 | 250000712 | Torx Screw M6 X 20 |
| 4000 | 707901242 | Lower Rear Cab Panel |
| 4005 | 705002651 | Quarter Turn Nut |
| 4010 | 293150306 | Black, Ornit Rivet 3/16 X ,800 |
| 4015 | 250000722 | Torx Screw M6 X 20 |
| 4100 | 707900743 | Battery Cover |
| 4110 | 705002649 | Quarter Turn Screw |
| 4120 | 708400286 | Washer |
| 5930 | 293150230 | Tuflok Plastic Rivet |
| 5980 | 293150306 | Black, Ornit Rivet 3/16 X ,800 |
