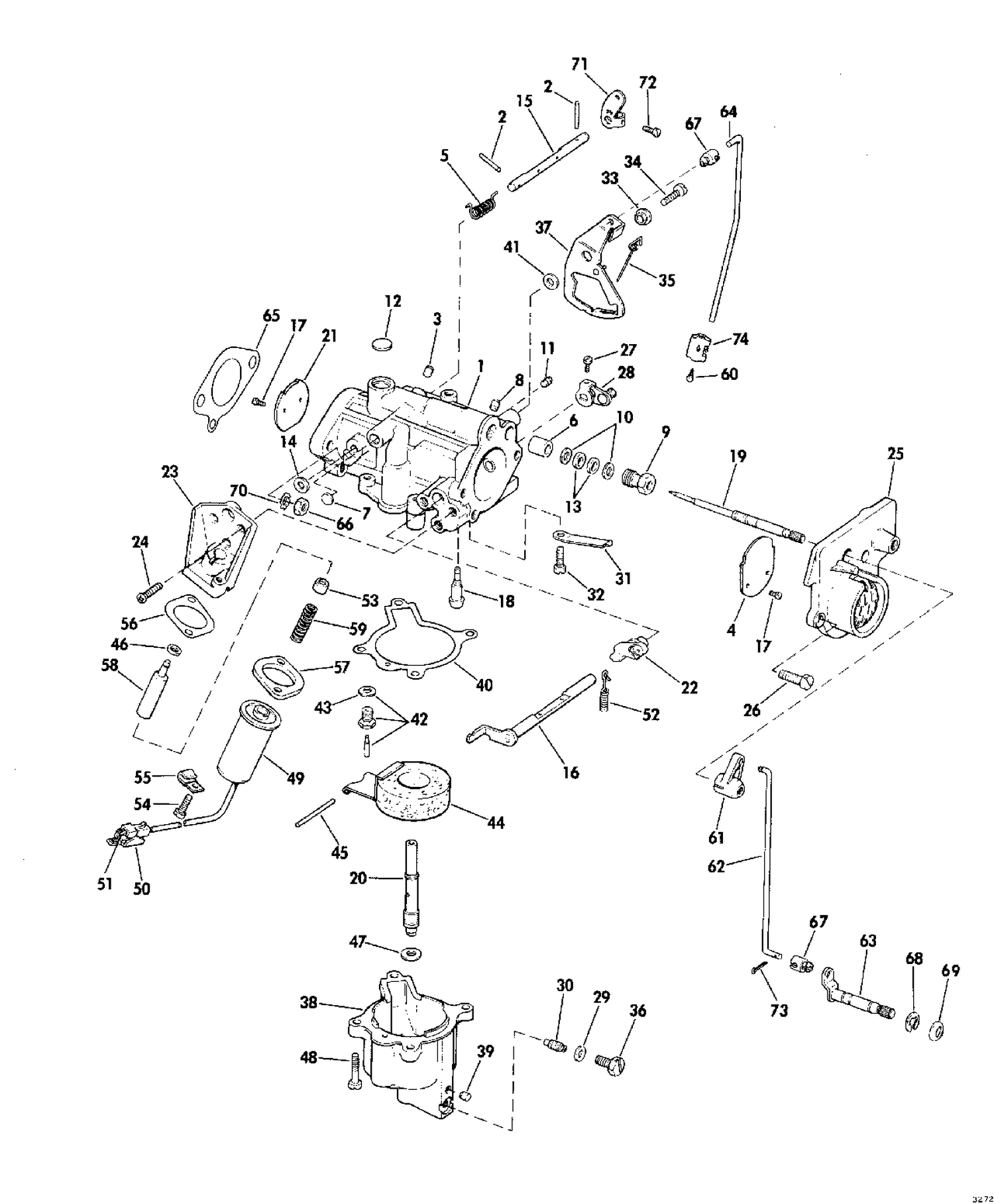

CARBURETOR
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0385357 | BODY ASSY |
| 1 | 0385358 | BODY ASSY |
| 19 | 0317176 | NEEDLE VALUE,Slow speed |
| 20 | 0317362 | NOZZLE, High speed |
| 23 | 0317135 | BRACKER,Solenoid |
| 24 | 0307609 | SCREW |
| 25 | 0317175 | CONTROL PANEL |
| 28 | 0378003 | ARM & PIN,Manual choke |
| 30 | 0317183 | ORIFICE PLUG |
| 31 | 0307384 | SPRING, Choke |
| 32 | 0306417 | SCEW, Spring |
| 33 | 0317174 | BUSHING, Choke lever |
| 35 | 0307433 | SPRING, Choke |
| 36 | 0307832 | PLUG, Screw |
| 37 | 0385055 | CHOKE LEVER & PIN ASSY |
| 38 | 0379965 | FLOAT BOWL ASSY |
| 40 | 0303750 | GAKSET, Float bowl |
| 41 | 0328737 | RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306015. |
| 44 | 0375792 | FLOAT & FLOAT ARM |
| 46 | 0312937 | WASHER SOLENOID PLUNGER |
| 47 | 0307778 | GASEKT, Carburetor body |
| 49 | 0383598 | SOLENOID ASSEMBLY |
| 52 | 0312940 | SPRING, Arm to plunger |
| 53 | 0312941 | GUIDE, Solenioid spring |
| 54 | 0305230 | SCREW |
| 56 | 0310473 | GASKET, Solenoid |
| 57 | 0310475 | RETAINER, Solenoid |
| 58 | 0381861 | PLUNGER & PIN ASSY |
| 59 | 0312939 | SPRING, Plunger |
| 60 | 0303686 | SCREW, Fastener |
| 61 | 0204705 | ARM, Neddle valve |
| 62 | 0318540 | LINK, Slow speed |
| 63 | 0279086 | SHAFT & ARM, Slow speed |
| 64 | 0317171 | ROD, Knob to lever |
| 65 | 0310387 | GASKET, Carb to manifold |
| 67 | 0313329 | LOCKWASHER, Carburetor link |
| 69 | 0204757 | BOW WASHER |
| 70 | 0306799 | L'WASHER,Bracket to hsg. |
| 71 | 0378984 | ARM & SCREW |
| 72 | 0308893 | SCREW |
| 0384996 | 0384996 | CARBURETOR ASSY |
| 0385050 | 0385050 | CARBURETOR ASSY |
