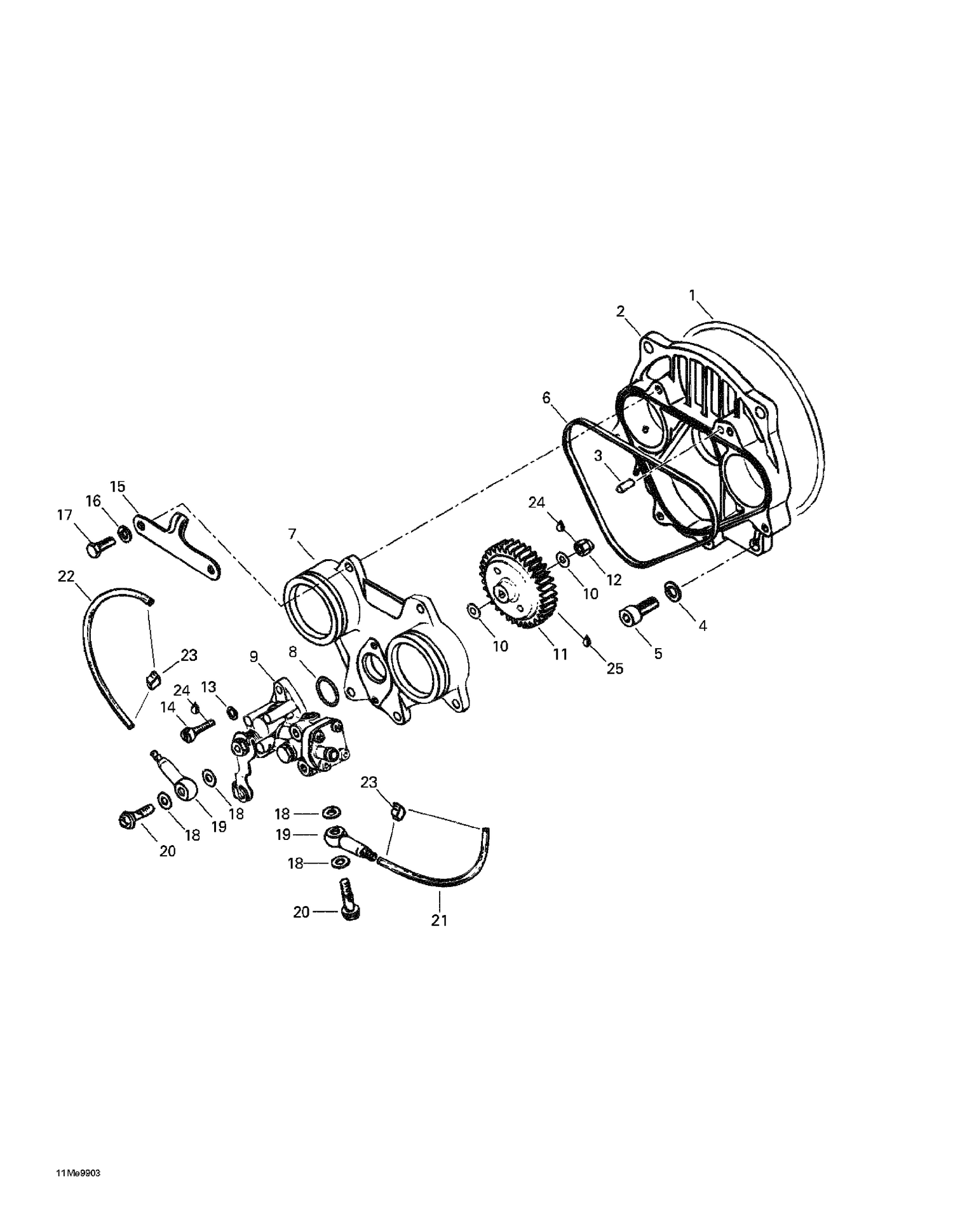

02- Oil Injection System
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420831360 | O-Ring |
| 3 | 420929650 | Drive Pin 5 X 10 |
| 4 | 420945832 | Washer-Lock Din.128 This part replaces 420945752. |
| 5 | 205082044 | Socket Head Screw M8 X 20 This part replaces 222982065. |
| 6 | 420831707 | RUBBER RING - Call your local BRP dealership |
| 7 | 420810490 | Oil Pump Mounting Flange |
| 8 | 420230370 | O-Ring |
| 10 | 420927945 | FLAT WASHER - Call your local BRP dealership |
| 11 | 420935945 | Oil Pump Gear 41 Teeth |
| 12 | 232561434 | Elastic Stop Nut M6 This part replaces 228561045. |
| 13 | 420945750 | Lock Washer |
| 14 | 420240761 | Cylindrical Slotted Screw M5 x 16 |
| 15 | 420851340 | Plate (Intake Silencer) |
| 16 | 420945751 | WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 17 | 207162044 | Hex. Screw M6 X 20 This part replaces 222062065. |
| 18 | 404146600 | Sealing Washer |
| 19 | 420956010 | Valve Ass’Y |
| 20 | 404146800 | Banjo Bolt M6 X 16 |
| 21 | 219704404 | Oil Hose 1500Mm Long |
| 22 | 219704404 | Oil Hose 1500Mm Long |
| 23 | 420853840 | Clamp |
| 24 | 293800060 | Loctite 243, 10 ml This part replaces 293800015. |
