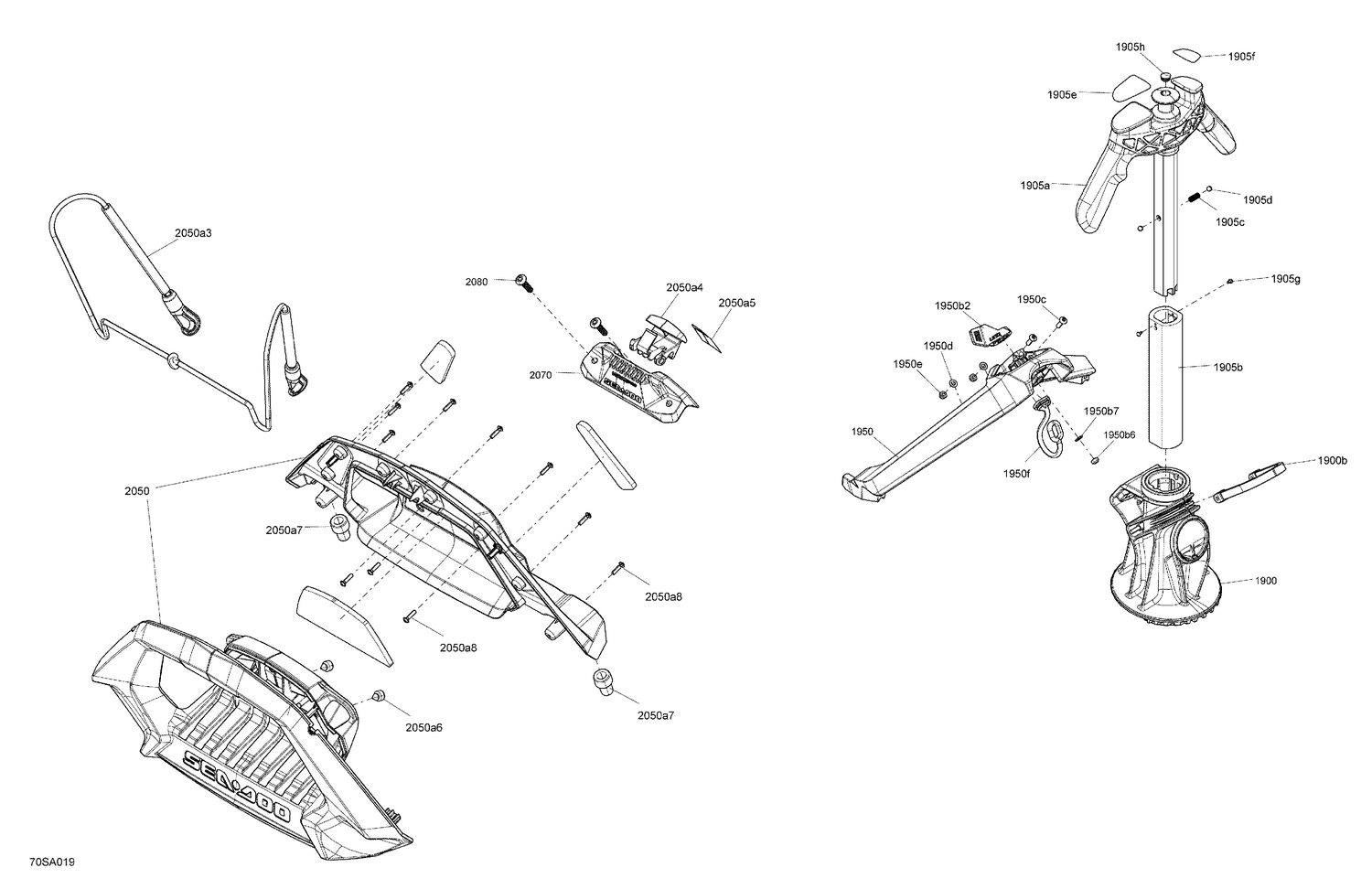

07- Body - System - WAKE Accessories
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1900b | 295100740 | Replacing Kit for Pylon Strap |
| 1905a | 291005230 | Ski Handles |
| 1905b | 291004948 | Aluminum Post |
| 1905c | 269501651 | Ball Spring |
| 1905d | 293350062 | Ball 1/4" |
| 1905e | 219905699 | Warning Decal Ski Post |
| 1905f | 219905700 | Warning Decal Ski Post |
| 1905g | 293150167 | Type "U" Metallic Drive Screw |
| 1905h | 291001519 | Bumper Plug, Black |
| 1950b2 | 708200374 | RH Lever |
| 1950b6 | 232551200 | Elastic Stop Nut 5 mm |
| 1950b7 | 211200035 | Flat Washer |
| 1950c | 205451660 | Socket Head Screw M5 X 16 |
| 1950d | 234051600 | Flat Washer M5, Stainless |
| 1950e | 232551200 | Elastic Stop Nut 5 mm |
| 1950f | 273000344 | Strap |
| 2050a3 | 291002979 | Elastic Rope Ass'y |
| 2050a4 | 291002980 | Latch |
| 2050a5 | 219903228 | Warning WAKE |
| 2050a6 | 293830005 | Rubber Bumper |
| 2050a7 | 293830119 | Rubber Buffer |
| 2050a8 | 250000287 | Flange Torx Screw K40 X 16 |
| 2070 | 291004675 | Upper Anchorage |
