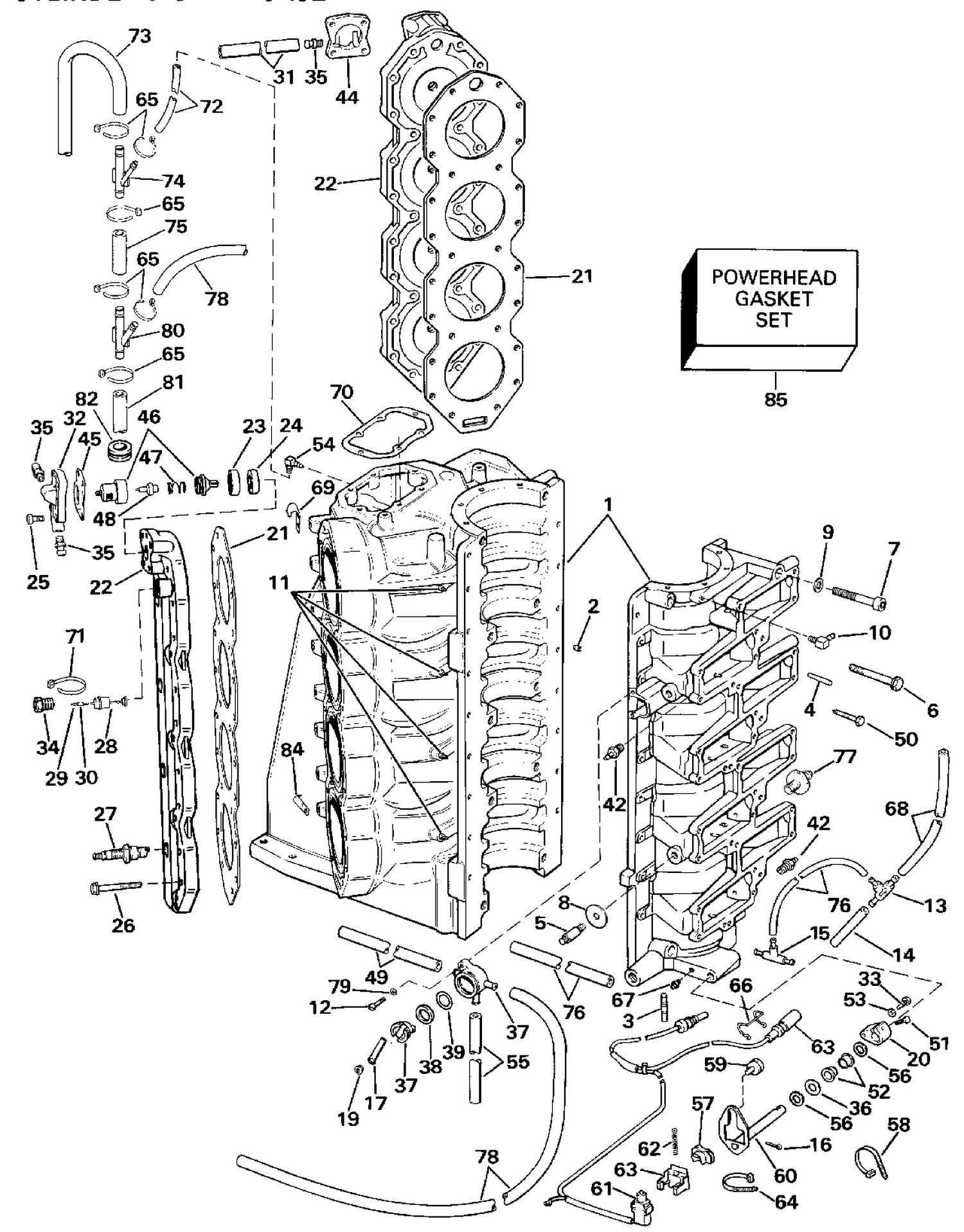

| Ref | Part Number | Description |
|---|
| 1 |
0437017 |
CYLINDER & C'CASE ASSY., 300 This part replaces 0398758. |
| 3 |
0326743 |
STUD |
| 13 |
0394892 |
CHECK VALVE ASSY. |
| 14 |
HOSE, |
Valve lower |
| 15 |
0325569 |
T, amorçage |
| 16 |
0330145 |
COTTER PIN |
| 17 |
0329740 |
ARM, Control arm |
| 19 |
0315094 |
BUSHING |
| 20 |
0326644 |
LEVER, Shift rod |
| 21 |
0340116 |
GASKET, Cylinder head This part replaces 0333554. |
| 22 |
0398717 |
CYLINDER HEAD |
| 23 |
0330273 |
CAP, Thermostat |
| 24 |
0320880 |
SEAT |
| 25 |
0909533 |
SCREW, Pressure relief valve cover |
| 26 |
0322323 |
SCREW |
| 27 |
0432424 |
SPARK PLUG , QL16V |
| 27 |
0502180 |
SPARK PLUG, Champion QL77JC4 This part replaces 0387633. |
| 28 |
0583789 |
TEMPERATURE SWITCH, Port |
| 28 |
0584592 |
SWITCH, Temperature This part replaces 0583441. |
| 31 |
0330365 |
FLEXIBLE, indicateur d'éjection |
| 32 |
0329745 |
COVER, Thermostat stbd |
| 33 |
0327590 |
PIN, Shift lever |
| 36 |
0306012 |
BOW WASHER |
| 37 |
0394407 |
CONTROL VALVE |
| 38 |
0329787 |
SEAL |
| 39 |
0330262 |
WIPER |
| 41 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 42 |
0392988 |
CHECK VALVE |
| 44 |
0329744 |
COVER, Thermostat, port |
| 45 |
0394408 |
DIAPHRAGM, Thermostat cover |
| 46 |
0434137 |
THERMOSTAT ASSY, This part replaces 0394409. |
| 47 |
0434137 |
THERMOSTAT ASSY, This part replaces 0329766. |
| 48 |
0394411 |
THERMOSTAT & SEAT ASSY. |
| 49 |
0330366 |
HOSE, Control valve to cover |
| 50 |
0302288 |
BOLT |
| 51 |
0328695 |
CLAMP, Engine cable |
| 52 |
0312708 |
BUSHING |
| 55 |
0329971 |
HOSE, Adapter to control valve |
| 56 |
0202026 |
LOCK WASHER, Stud |
| 57 |
0513812 |
BRACKET, Slider This part replaces 0513133. |
| 58 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 59 |
0329997 |
PIN |
| 60 |
0394595 |
SHIFT LEVER & SHAFT |
| 61 |
0584011 |
SWITCH & CABLE This part replaces 0583608. |
| 62 |
0333017 |
SPRING |
| 63 |
0513134 |
SUPPORT, à clipser |
| 65 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 66 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 68 |
HOSE, |
Bearing hsg. |
| 69 |
0330157 |
CLAMP |
| 72 |
0913435 |
HOSE, Elbow to drain tee |
| 73 |
0912749 |
HOSE, Aspiration |
| 76 |
HOSE, |
Drain system |
| 78 |
0330372 |
HOSE, Control valve to aspirator |
| 81 |
0912289 |
HOSE, Overboard |
| 82 |
0320521 |
GROMMET |
