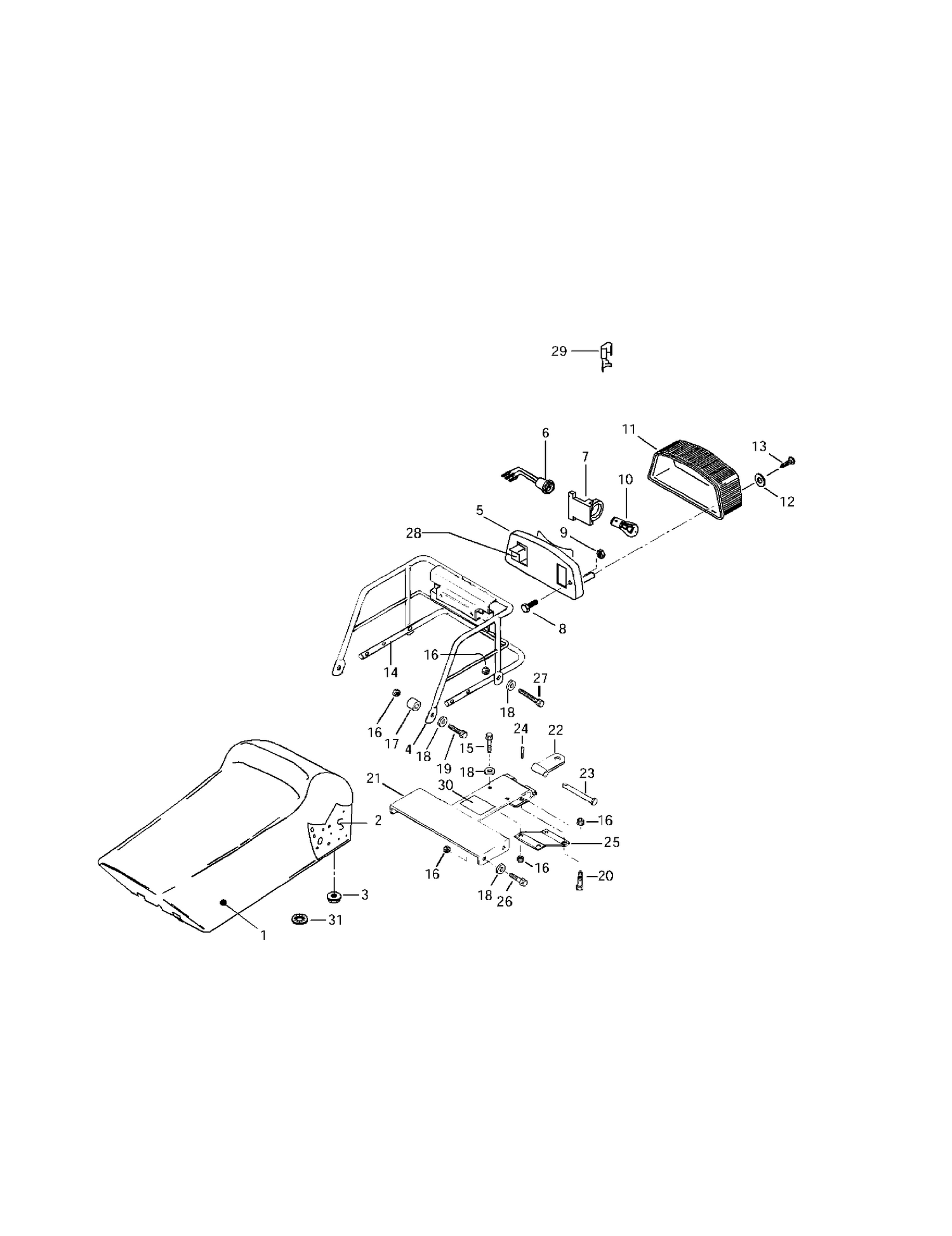

| Ref | Part Number | Description |
|---|
| 1 |
415041603 |
Seat Cover |
| 2 |
414737100 |
Seat Foam |
| 3 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 4 |
517191500 |
Paint Rack |
| 6 |
414979410 |
Socket |
| 7 |
414979411 |
Rubber Damper |
| 8 |
222052565 |
SCREW-HEX.CAP DIN.933 - Call your local BRP dealership |
| 9 |
233251434 |
Flange Elastic Nut M5 This part replaces 228751045. |
| 10 |
520000758 |
Bulb This part replaces 410504000. |
| 11 |
414513700 |
Lens |
| 12 |
414516400 |
Washer - Call your local BRP dealership |
| 13 |
209632540 |
Phillips Tapping Screw M3.9 X 25 This part replaces 414516300. |
| 14 |
517170700 |
Rear Bumper |
| 15 |
207162544 |
Hex. Screw M6 X 25 This part replaces 222062565. |
| 16 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 17 |
517185600 |
Spacer |
| 18 |
224061121 |
Flat Washer |
| 19 |
207063544 |
Hex. Flange Screw M6 X 35 This part replaces 222063565. |
| 20 |
207162044 |
Hex. Screw M6 X 20 This part replaces 222062065. |
| 21 |
517200600 |
Paint Hitch |
| 22 |
511000521 |
Hitch Plate Welded This part replaces 517008700. |
| 23 |
505001700 |
CLEVIS PIN - Call your local BRP dealership |
| 24 |
371800200 |
Cotter Pin |
| 25 |
517217800 |
Paint Reinforcement |
| 26 |
207064044 |
Hex. Screw M6 X 40 This part replaces 222064065. |
| 27 |
Not |
Available As Spare Part - Hex Screw M6 x 60 |
| 28 |
572150800 |
Block Dimmer Switch |
| 29 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 30 |
414998500 |
Instruction Label (Hitch) |
