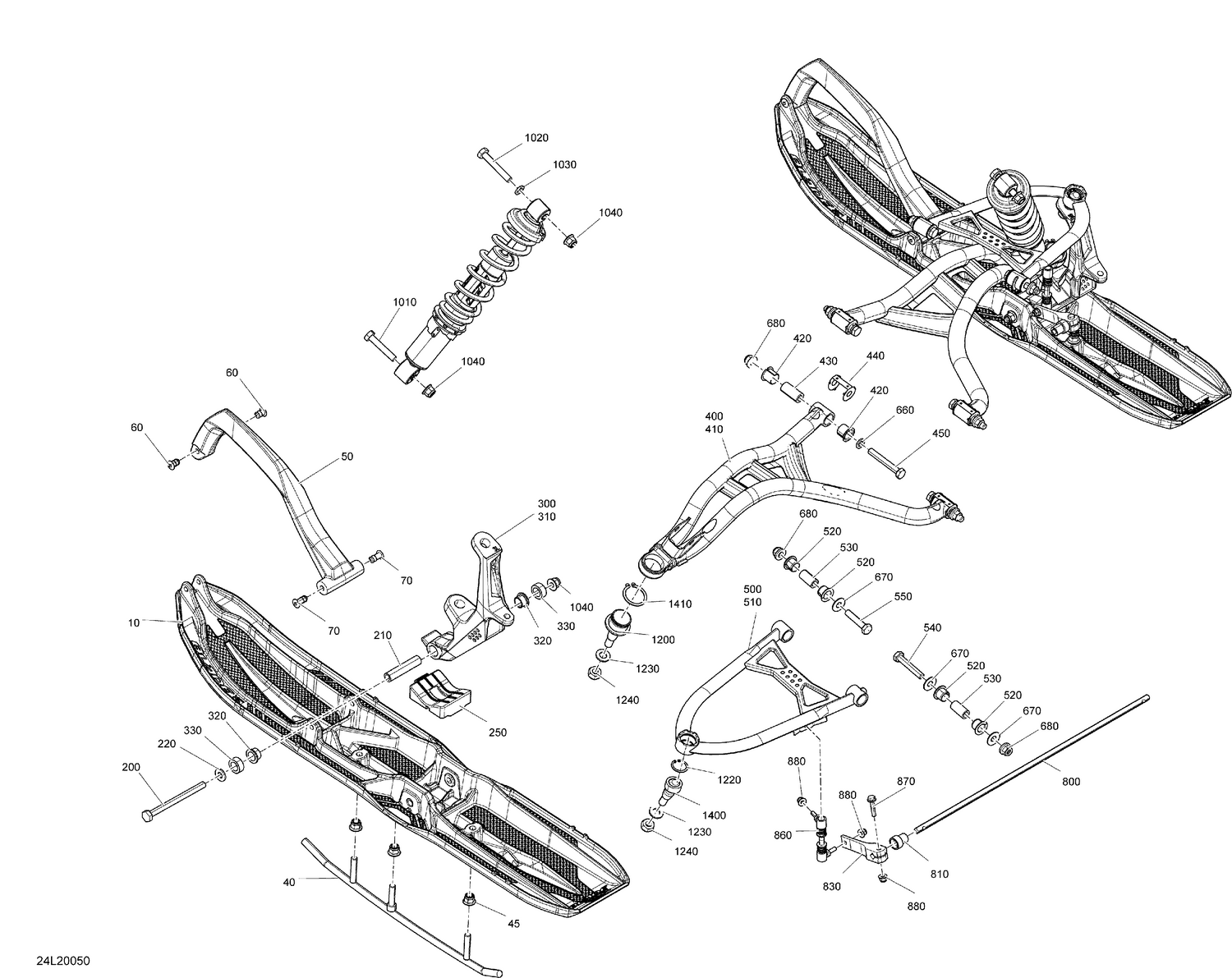

07- Suspension, Front - System - SC
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 505074262 | Black, Ski Blade |
| 40 | 860202821 | Round Carbide Runner Kit This part replaces 860200959. |
| 45 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 50 | 505073513 | Orange, Handle |
| 60 | 505071812 | Retainer 17mm long |
| 70 | 505072133 | Retainer 23mm Long |
| 200 | 250000703 | Hex. Screw M10 X 130 |
| 210 | 506133300 | Spacer |
| 220 | 503192496 | Washer |
| 230 | 233201464 | Hex. Elast. Flanged Nut M10 x 1.5 |
| 250 | 505072594 | Ski Stopper |
| 300 | 505073579 | Black, LH Ski Leg |
| 310 | 505073580 | Black, RH Ski Leg |
| 320 | 505072690 | Leg Bushing |
| 330 | 505072807 | Spacer |
| 400 | 505073925 | RH Arm-lower |
| 410 | 505073924 | LH Arm-lower |
| 420 | 505073330 | Bushing |
| 430 | 505072209 | Sleeve |
| 440 | 505072634 | Wear Plate |
| 450 | 250001024 | Screw Hex. M10 X 70 |
| 500 | 505073985 | LH Arm-upper W Sway Bar |
| 510 | 505073986 | RH Arm-upper W Sway Bar |
| 520 | 505073329 | Bushing |
| 530 | 505072143 | Sleeve |
| 540 | 250001023 | Screw Hex. M10 X 60 |
| 550 | 250001022 | Screw Hex. M10 X 50 |
| 660 | 503189564 | Washer |
| 670 | 505072392 | Washer |
| 680 | 250100165 | Hex. Flanged Elastic Nut M10 |
| 800 | 505072444 | Stabilisator |
| 810 | 505072445 | Bushing |
| 830 | 505074294 | Stabilisator Lever |
| 860 | 505074123 | Double Ball Joint Link |
| 870 | 207663046 | Hex. Flange Screw M6 X 30 |
| 880 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 1010 | 207005544 | Hex. Screw M10 X 55 |
| 1020 | 207006544 | Hex. Screw M10 X 1.5 X 65 |
| 1030 | 503189564 | Washer |
| 1040 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 1200 | 505073636 | Ball Joint |
| 1220 | 293370070 | Circlip |
| 1230 | 234021410 | Flat Washer 12 mm |
| 1240 | 250100089 | Hex. Elastic Hex. Nut M12 |
| 1400 | 505072913 | Upper Ball Joint |
