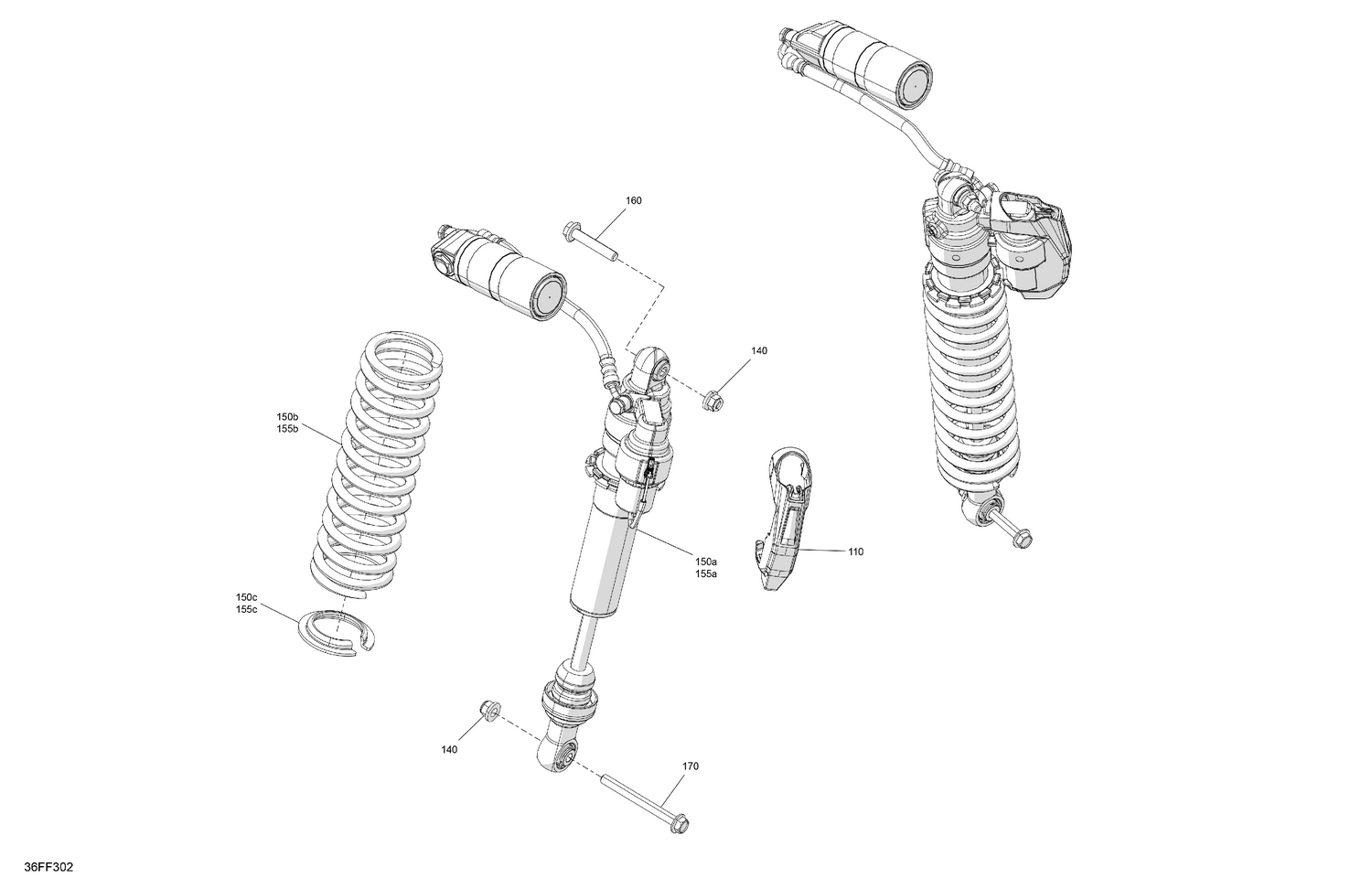

05- Suspension - Rear Shocks
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 110 | 706206419 | Connector Guard |
| 140 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 150a | 706005097 | LH Rear Shock Absorber |
| 150b | 706005098 | Orange Crush, Rear Compression Spring |
| 150c | 706206701 | Spring Guide |
| 155a | 706005190 | RH Rear Shock Absorber |
| 155b | 706005098 | Orange Crush, Rear Compression Spring |
| 155c | 706206701 | Spring Guide |
| 160 | 207605546 | Hex. Flange Screw M10 X 55 |
