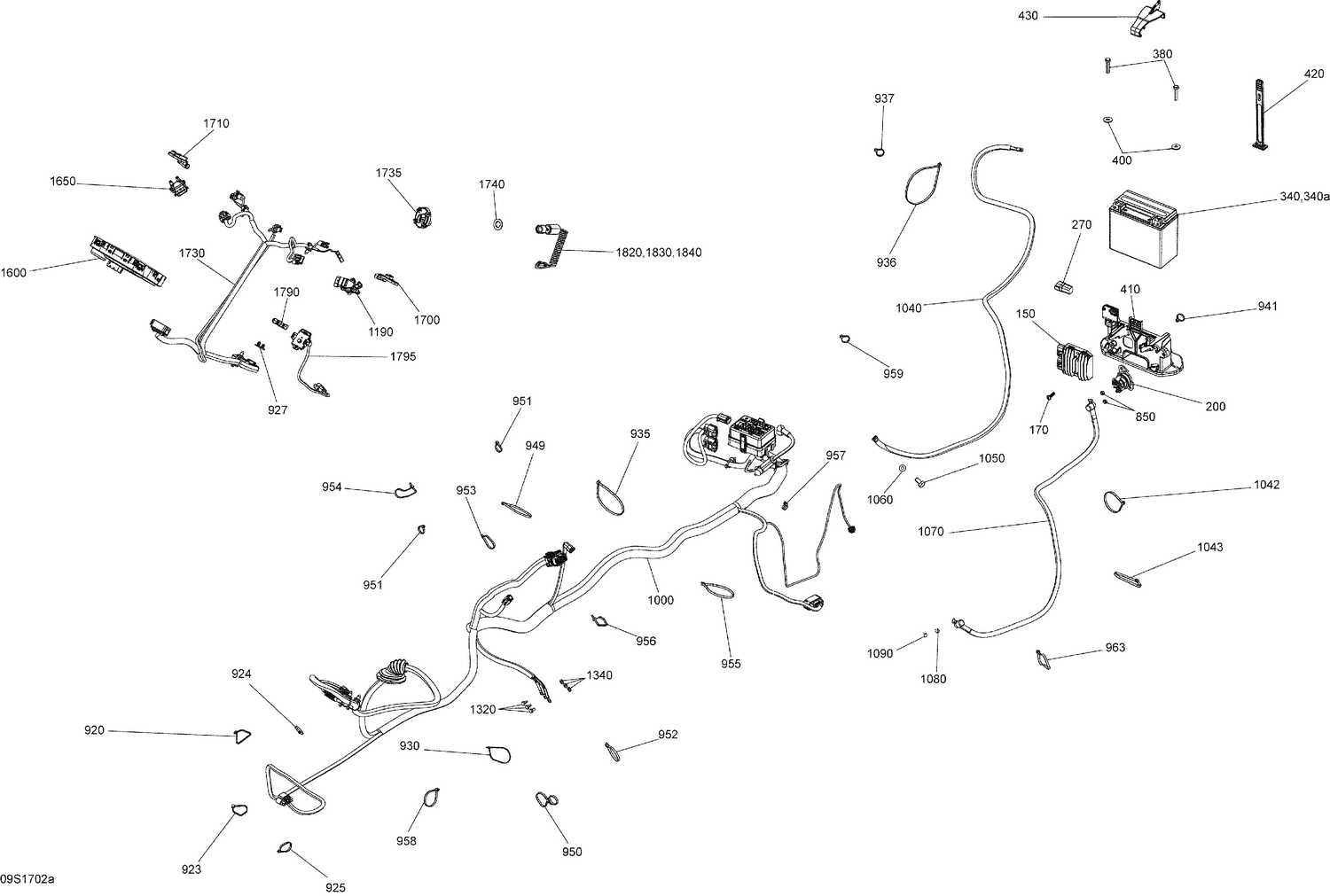

10- Electrical System - Model with Suspension
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 150 | 710001103 | Voltage Regulator |
| 170 | 250000466 | Torx Screw Plastite M6 |
| 200 | 278003012 | Starter Relay |
| 270 | 278002704 | Diagnostic Connector |
| 380 | 207184060 | Hex. Screw M8 X 40 |
| 400 | 234082600 | Flat Washer 8 mm, Stainless |
| 410 | 278003136 | Batt. Support |
| 420 | 269502417 | Strap This part replaces 269500408. |
| 430 | 278003521 | Clip This part replaces 278003359. |
| 850 | 232561200 | Brass Elastic Stop Nut M6 |
| 920 | 414115200 | Tie-Rap 180 mm |
| 923 | 293750008 | Tie Wrap 368 mm |
| 924 | 293750008 | Tie Wrap 368 mm |
| 925 | 414115200 | Tie-Rap 180 mm |
| 927 | 278002910 | Clip (double dart) |
| 930 | 293750008 | Tie Wrap 368 mm |
| 935 | 293750047 | Tie Rap, 533 mm |
| 936 | 293750008 | Tie Wrap 368 mm |
| 937 | 414115200 | Tie-Rap 180 mm |
| 941 | 414115200 | Tie-Rap 180 mm |
| 949 | 293750008 | Tie Wrap 368 mm |
| 950 | 293750053 | Tie Rap 300mm |
| 951 | 414115200 | Tie-Rap 180 mm |
| 952 | 293750008 | Tie Wrap 368 mm |
| 953 | 293750008 | Tie Wrap 368 mm |
| 954 | 293750008 | Tie Wrap 368 mm |
| 955 | 293750008 | Tie Wrap 368 mm |
| 956 | 293750008 | Tie Wrap 368 mm |
| 958 | 414115200 | Tie-Rap 180 mm |
| 959 | 293750008 | Tie Wrap 368 mm |
| 963 | 293750008 | Tie Wrap 368 mm |
| 1040 | 278003269 | Battery Ground Cable |
| 1042 | 293750008 | Tie Wrap 368 mm |
| 1043 | 293750008 | Tie Wrap 368 mm |
| 1050 | 207302060 | Hex. Screw M10 X 20, Scotch Grip |
| 1060 | 234000600 | Flat Washer 10 mm, Stainless |
| 1070 | 278003398 | Cable-Starter |
| 1080 | 232561200 | Brass Elastic Stop Nut M6 |
| 1090 | 234061600 | Stainless Flat Washer M6 |
| 1190 | 278002284 | LH Throttle Sensor |
| 1320 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 1340 | 234061600 | Stainless Flat Washer M6 |
| 1650 | 278002283 | Throttle Position Sensor |
| 1710 | 278002602 | Switch RH Mode/Set |
| 1730 | 278003265 | Steering Harness Ass'y |
| 1735 | 515178840 | Terminal Dess One-Wire This part replaces 515178225. |
| 1740 | 278002963 | Safety Nut (DESS Switch) |
| 1790 | Not | Available As Spare Part - Non Applicable |
| 1830 | 278003401 | Safety Lanyard Ass'y, Learning / RFID |
