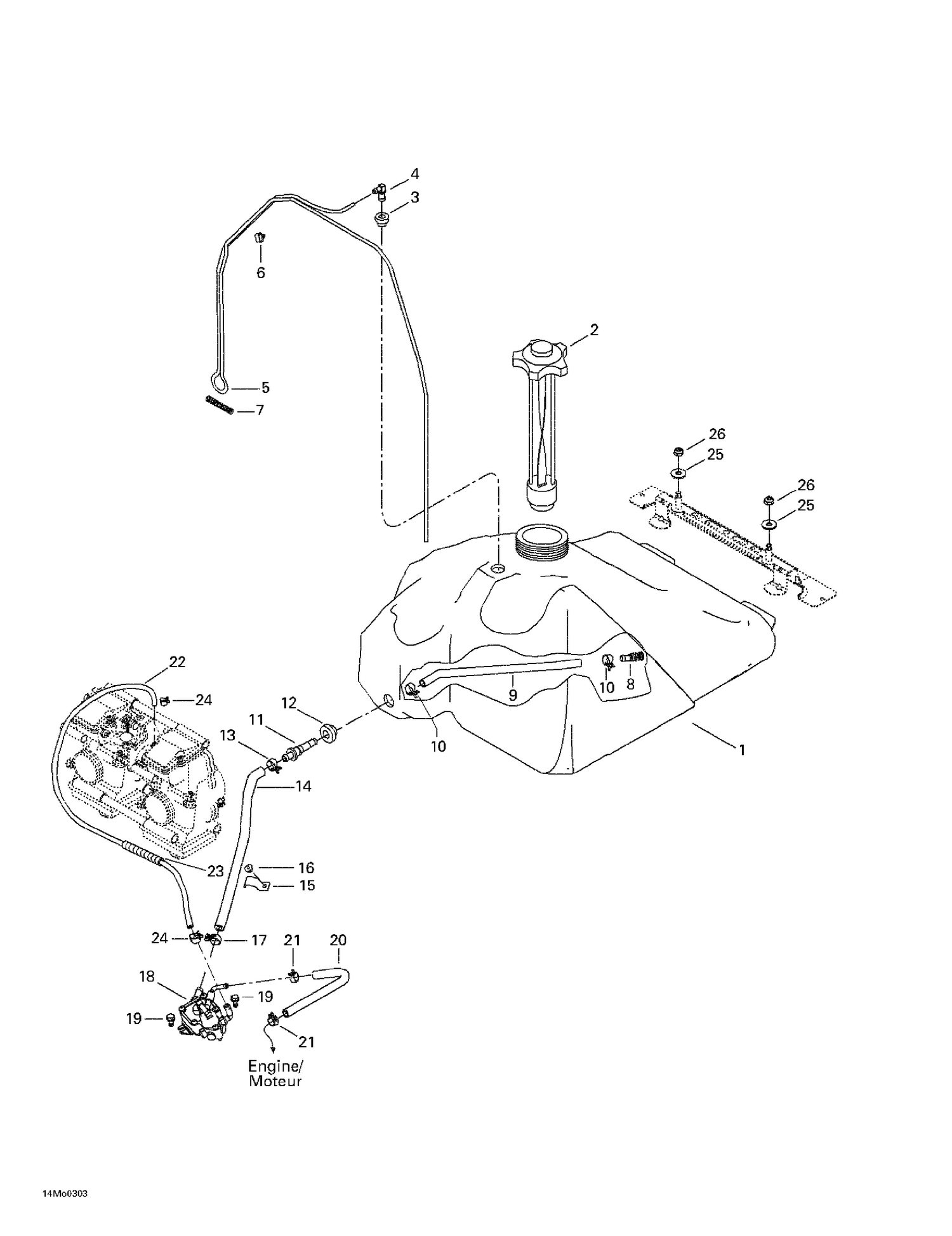

02- Fuel System
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513032987 | Fuel Tank |
| 2 | 513033020 | Fuel Tank Cap |
| 3 | 513032908 | Grommet |
| 4 | 414814100 | Male Connector |
| 5 | 219704709 | NEEDS DESCRIPTION This part replaces 219704409. |
| 6 | 513032923 | TUBE CLAMP - Call your local BRP dealership |
| 7 | 414818200 | SPRING - Call your local BRP dealership |
| 8 | 414872100 | Fuel Filter Strainer |
| 9 | 415005700 | Hose |
| 10 | 513033010 | Norma Spring Clamp |
| 11 | 414872700 | Male Connector |
| 12 | 707800347 | Grommet This part replaces 570273900. |
| 13 | 513032979 | UNIVERSAL SPRING CLAMP - Call your local BRP dealership |
| 14 | 513032903 | Formed Hose |
| 15 | 415018200 | CLIP - Call your local BRP dealership |
| 16 | 293150103 | Pop Rivet 3/16" |
| 17 | 513032979 | UNIVERSAL SPRING CLAMP - Call your local BRP dealership |
| 19 | 210361280 | HEX. SCREW M6 X 12 - Call your local BRP dealership |
| 20 | 219704549 | Hose This part replaces 219704439. |
| 21 | 414415200 | Spring Clamp |
| 22 | 513032986 | Formed Tube |
| 23 | 219704407 | Tubing 10 MM 1000MM Long |
| 24 | 414420700 | Spring Clamp |
| 25 | 234082410 | Flat Washer 8 mm |
