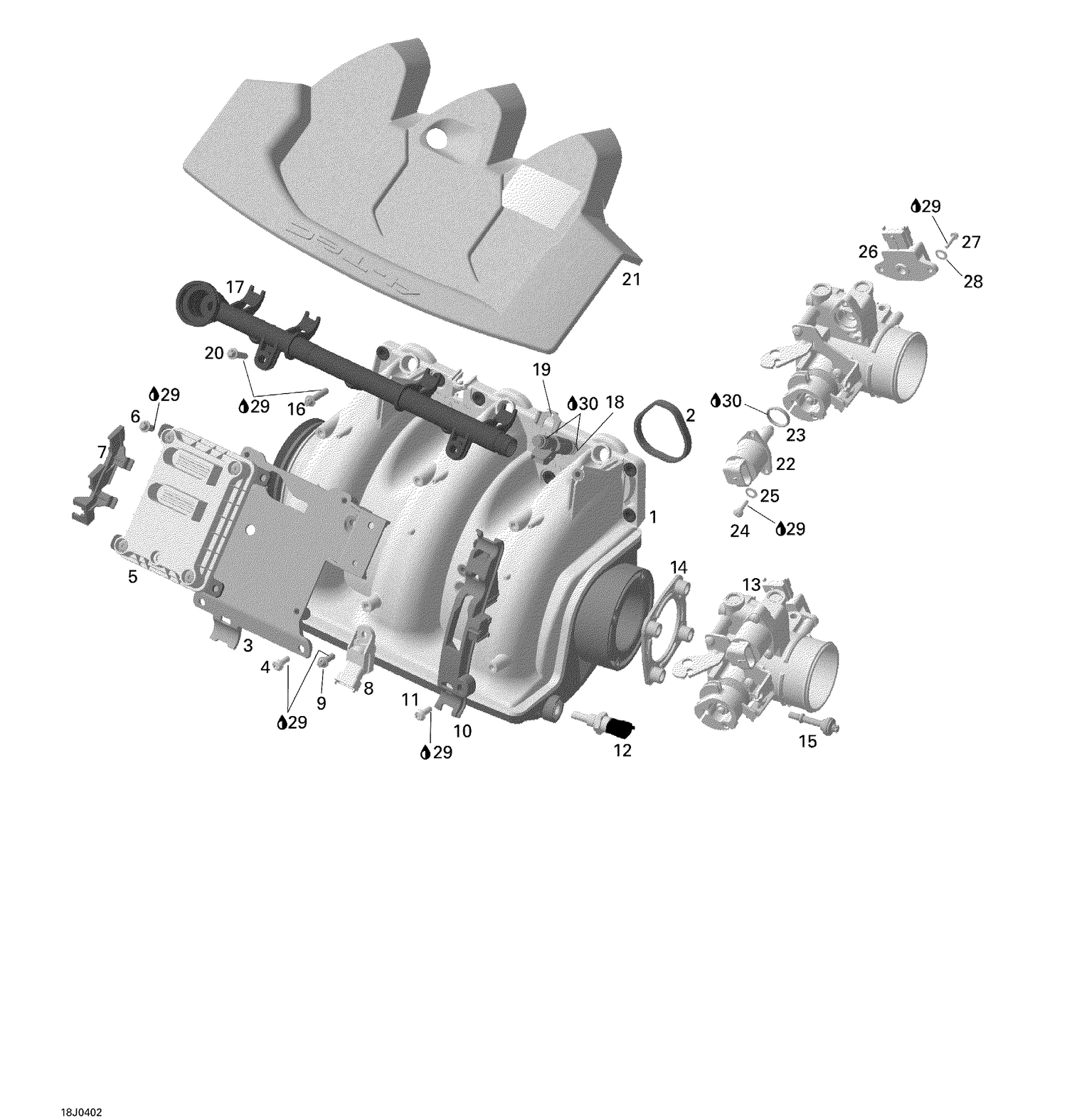

| Ref | Part Number | Description |
|---|
| 1 |
420867921 |
Air Intake Manifold This part replaces 420867920. |
| 2 |
420950740 |
Gasket |
| 3 |
420851520 |
Base Plate |
| 4 |
420641048 |
Torx Flange Screw M6 X 16 |
| 5 |
420664133 |
ELECTRONIC BOX - Call your local BRP dealership |
| 6 |
420641588 |
Torx Flange Screw M6 X 16 This part replaces 420641583. |
| 7 |
420660400 |
Connector Bracket |
| 8 |
270600040 |
Pressure Sensor This part replaces 420274055. |
| 9 |
420641048 |
Torx Flange Screw M6 X 16 |
| 10 |
420660410 |
WIRING SUPPORT - Call your local BRP dealership |
| 11 |
420641588 |
Torx Flange Screw M6 X 16 This part replaces 420641583. |
| 12 |
278002895 |
Temperature Sensor This part replaces 420222425. |
| 13 |
420889022 |
THROTTLE BODY - Call your local BRP dealership |
| 14 |
420950792 |
Rubber Gasket |
| 15 |
420440561 |
Allen Screw M6 x 30,5 This part replaces 420440560. |
| 16 |
420641238 |
Torx Flange Screw M6 X 25 |
| 17 |
420874391 |
FUEL RAIL ASS'Y - Call your local BRP dealership |
| 18 |
420874430 |
INJECTOR - Call your local BRP dealership |
| 19 |
420853030 |
Injector Clip This part replaces 420851531. |
| 20 |
420641238 |
Torx Flange Screw M6 X 25 |
| 21 |
270000677 |
COVER ASS'Y - Call your local BRP dealership This part replaces 420660172. |
| 22 |
420963051 |
Idle Bypass Valve This part replaces 420963050. |
| 23 |
420631780 |
O-Ring |
| 24 |
420440911 |
Binding Head Screw M5 X 16 |
| 25 |
420845710 |
Snap Ring |
| 26 |
420866120 |
Position Sensor This part replaces 270000251. |
| 27 |
208641660 |
Phillips Screw M4 X 16 |
| 28 |
234042600 |
Flat Washer 4 mm, Stainless |
| 29 |
293800060 |
Loctite 243, 10 ml |
