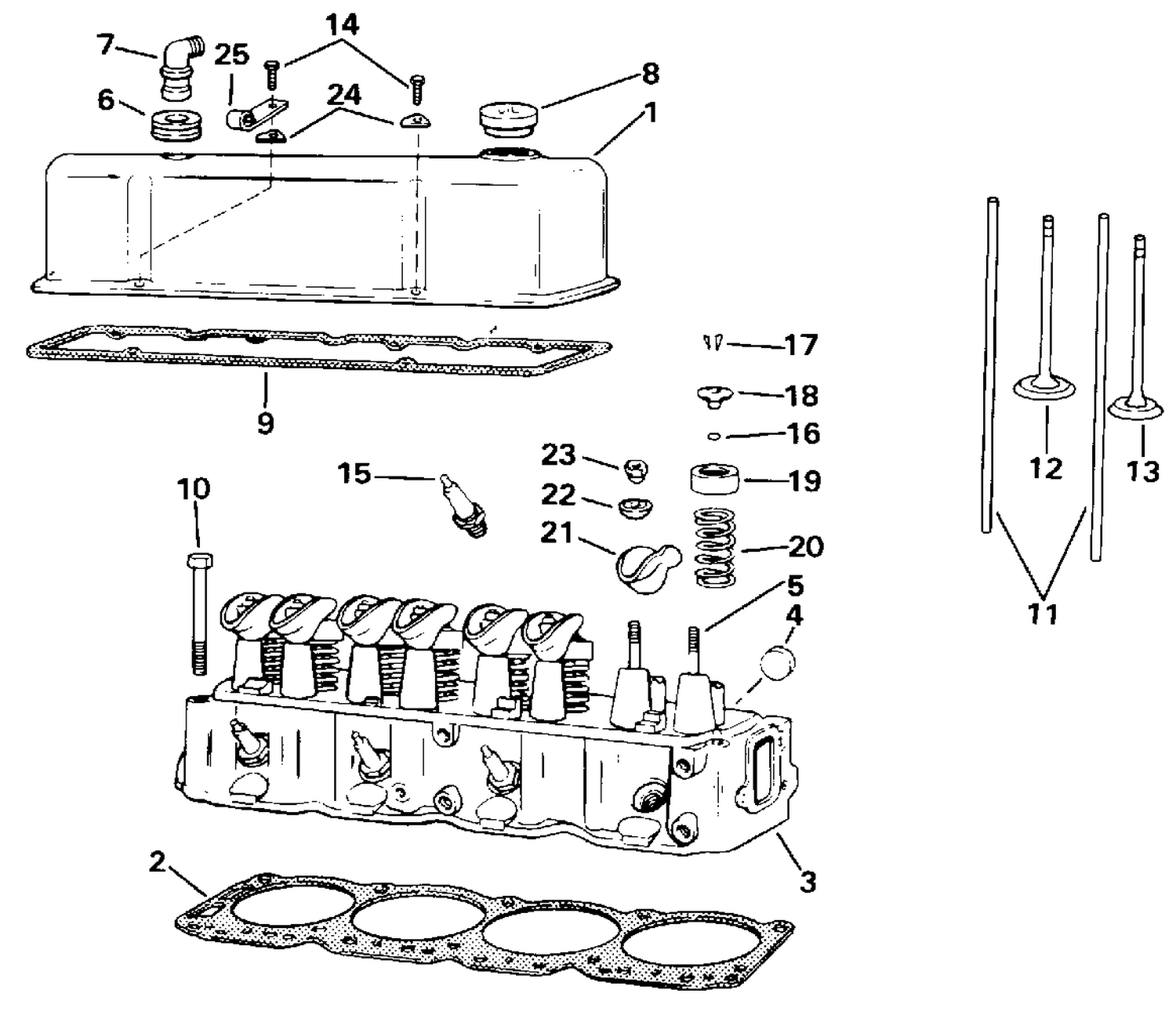

| Ref | Part Number | Description |
|---|
| 1 |
3853784 |
VALVE COVER |
| 2 |
3853336 |
GASKET, Cylinder head |
| 3 |
3854012 |
CYLINDER HEAD |
| 4 |
0311378 |
CORE PLUG This part replaces 3852102. |
| 5 |
3853146 |
STUD, 0.003 in. O.S. |
| 5 |
3853147 |
STUD, 0.013 in. O.S. |
| 6 |
0311543 |
GROMMET This part replaces 3852103. |
| 7 |
0311545 |
ELBOW This part replaces 3852104. |
| 8 |
3853842 |
OIL CAP, Push-on |
| 9 |
3852693 |
GASKET, Valve cover |
| 10 |
3853337 |
BOLT, Head to crankcase |
| 11 |
3853137 |
PUSH ROD |
| 12 |
3853127 |
VALVE, Exhaust, standard |
| 12 |
3853128 |
VALVE, Exhaust, 0.015 in. O.S. |
| 13 |
3852448 |
VALVE, Intake, 0.003 in. O.S. |
| 13 |
3852449 |
VALVE, Intake, 0.015 in. O.S. |
| 13 |
3852450 |
VALVE, Intake, 0.030 in. O.S. |
| 13 |
3852451 |
VALVE, Intake, standard |
| 14 |
3853503 |
BOLT, Valve cover |
| 15 |
3854399 |
SPARK PLUG, Champion RS12YC |
| 16 |
3854956 |
SEAL, Valve stem This part replaces 3853132. |
| 17 |
3855823 |
KEY, Valve stem This part replaces 3853131. |
| 18 |
3853129 |
CAP, Valve spring |
| 19 |
3853145 |
SHIELD, Valve stem |
| 20 |
3853130 |
VALVE SPRING & DAMPER |
| 21 |
3853139 |
ARM, Valve rocker |
| 22 |
3853140 |
BALL, Rocker arm |
| 23 |
3853141 |
NUT, Rocker arm |
| 24 |
3852442 |
REINFORCEMENT |
