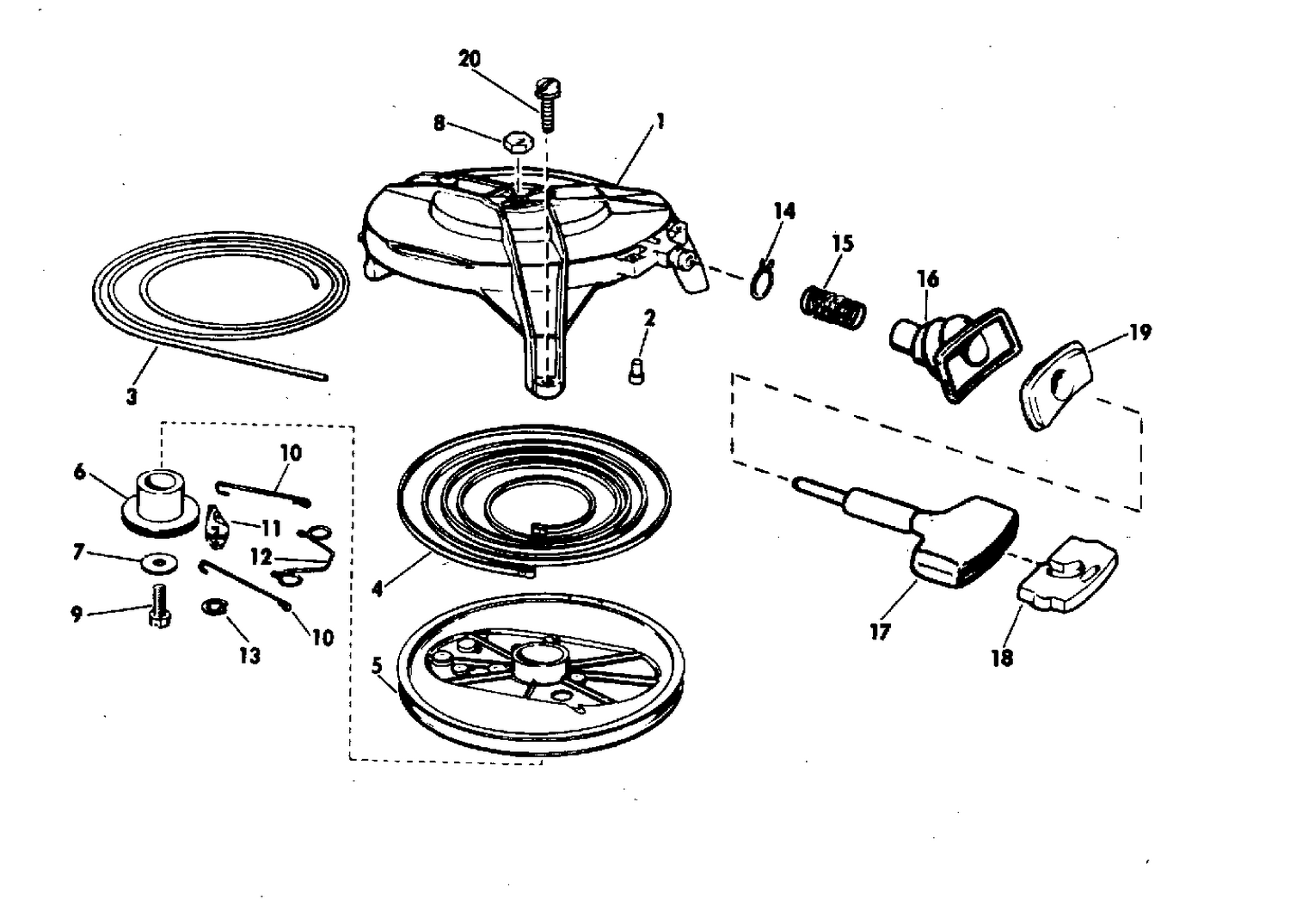

REWIND STARTER
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0384464 | STARTER HOUSING ASSY |
| 3 | ROPE | Ref: 4 0395460 **SPRING, Starter This part replaces 0307573. 0395460 |
| 6 | 0323247 | SPINDLE, Starter This part replaces 0203699. |
| 9 | 0336135 | SCREW, Flywheel This part replaces 0306284. |
| 10 | 0203725 | LINK SPRING TO PAWL |
| 11 | 0203698 | PAWL, Starter |
| 14 | 0324825 | CLAMP, Cylinder head hose This part replaces 0305646. |
| 19 | 0319714 | PLATE, Handle support This part replaces 0205015. |
| 0384427 | 0398036 | REWIND STARTER Assy This part replaces 0384427. |
