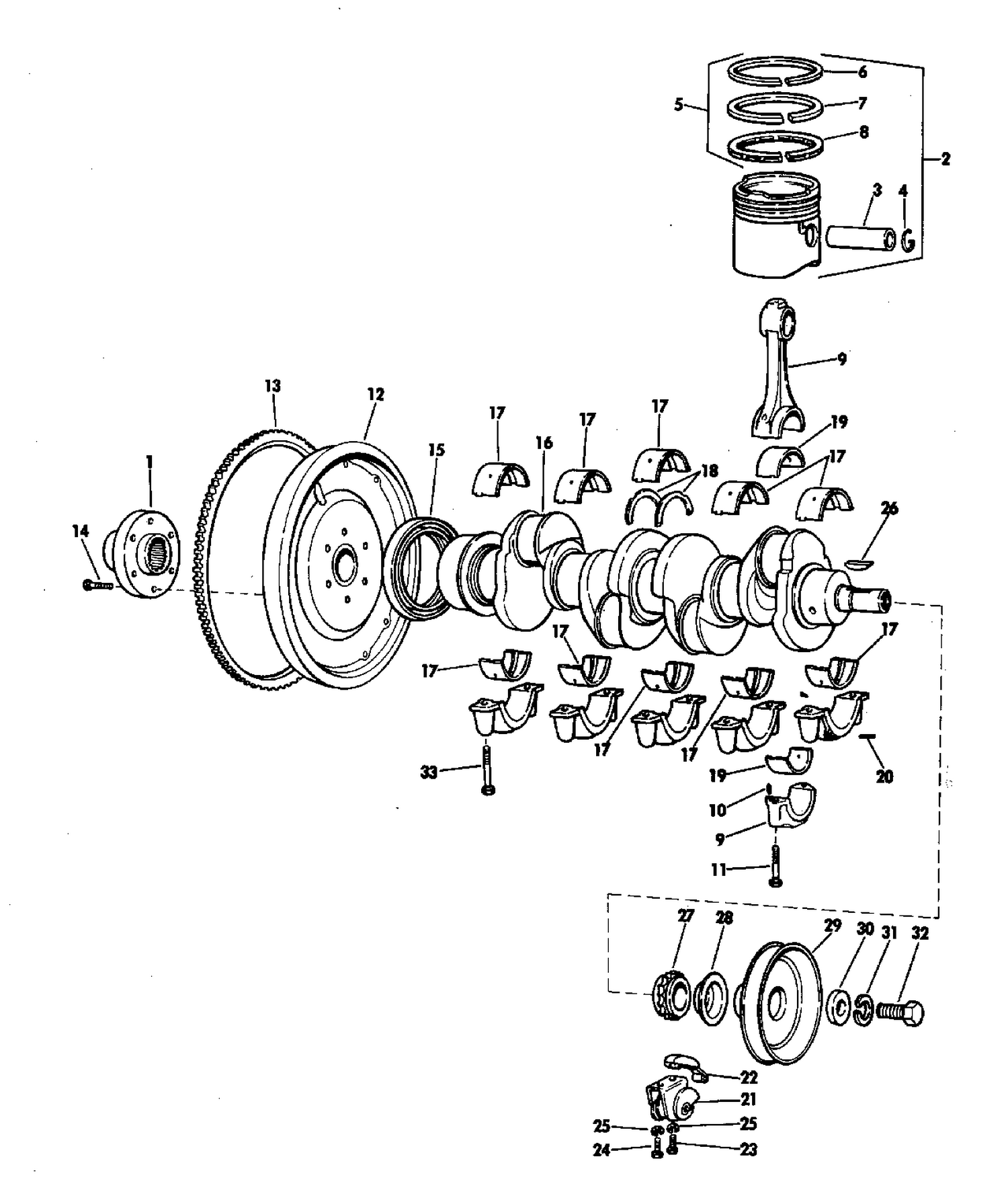

| Ref | Part Number | Description |
|---|
| 1 |
0314682 |
COUPLING, Flywheel |
| 2 |
2737E-6012-F |
PISTON, Pin & rings assembly, std. 2/3 |
| 2 |
2737E-6102-A |
PISTON, Pin & rings assembly, .0025" O/S |
| 2 |
2737E-6102-B |
PISTON, Pin & rings assembly,.015inch o/s |
| 2 |
2737E-6102-C |
PISTON, Pin & rings assembly, .030" O/S |
| 2 |
2737E-6102-G |
PISTON, Pin & rings assembly, std. 6/7 |
| 3 |
EOTA-6135-A |
PIN, Piston |
| 3 |
EOTA-6135-C |
PIN, Piston, .002" U.S. |
| 4 |
116E-6140 |
RETAINER, Pin |
| 5 |
116E-6149-A |
RING SET, Std |
| 5 |
116E-6149-B |
RING SET, .0025" o/s |
| 5 |
116E-6149-D |
RING SET, .015" o/s |
| 5 |
116E-6149-E |
RING SET, .030" O/S |
| 6 |
116E-6150-A |
RING #1, Std |
| 6 |
116E-6150-B |
RING #1, .0025" o/s |
| 6 |
116E-6150-D |
RING #1, .015" o/s |
| 6 |
116E-6150-E |
RING #1, .030" o/s |
| 7 |
109E-6152-D |
RING #2, Std |
| 7 |
109E-6152-E |
RING #2, .0025" o/s |
| 7 |
109E-6152-G |
RING #2, .015" O/S |
| 7 |
109E-6152-H |
RING #2, .030" O/S |
| 8 |
116E-6153-A |
RING #3, Std. |
| 8 |
116E-6153-B |
RING #3, .0025" O/S |
| 8 |
116E-6153-D |
RING #3, .015" O/S |
| 8 |
116E-6153-E |
RING #3, .030" O/S |
| 9 |
2737E-6200-B |
CONNECTING ROD ASSY. |
| 10 |
116336-ES2 |
PIN, Locating |
| 11 |
2733E-6215-A |
BOLT, Rod halves |
| 12 |
2737E-6375-D |
FLYWHEEL ASSY |
| 13 |
2730E-6384-B |
RING GEAR, Flywheel |
| 14 |
0314120 |
SCREW, Coupling |
| 15 |
2724E-7601-A |
SEAL, Crankshaft, rear |
| 16 |
2737E-6303-A |
CRANKSHAFT |
| 17 |
109E-6333-A/F |
MAIN BEARING, Std., red |
| 17 |
109E-6333-B/G |
MAIN BEARING, .010" U/S I.D. |
| 17 |
109E-6333-C/H |
MAIN BEARING, .020" U/S I.D. |
| 17 |
109E-6333-D/J |
MAIN BEARING, .030" U/S I.D. |
| 17 |
109E-6333-E/K |
MAIN BEARING, Std. i.d.-.015" O/S O.D. |
| 17 |
109E-6333-L/M |
MAIN BEARING,.010inch u/s i.d.-.015inch o/s o |
| 17 |
109E-6333-T/Z |
MAIN BEARING, Std., blue |
| 17 |
109E-6333-U/A |
MAIN BEARING,.010" U/S I.D.-.015" O/S O.D. -G reen |
| 17 |
109E-6333-V/A |
MAIN BEARING, .020" U/S I.D.-.015" O/S O.D. |
| 18 |
105E-6308-A |
THRUST WASHER, Std. |
| 18 |
105E-6308-B |
THRUST WASHER, .0025" O/S |
| 18 |
105E-6308-C |
THRUST WASHER, .005" O/S |
| 18 |
105E-6308-D |
THRUST WASHER, .0075" O/S |
| 18 |
105E-6308-E |
THRUST WASHER, .010" O/S |
| 19 |
1053E-1833-E |
RODBEARING,.030inch u/s, coded ae |
| 19 |
105E-18330-A |
ROD BEARING, Std., coded "AA" |
| 19 |
105E-18330-B |
ROD BEARING, .002" U/S, coded "AB" |
| 19 |
105E-18330-C |
ROD BEARING, .010" U/S, coded "AC" |
| 19 |
105E-18330-D |
ROD BEARING, .020" U/S, coded "AD" |
| 19 |
105E-1833O-F |
ROD BEARING,.040inch u/s, coded af |
| 20 |
E43-CP-1 |
PIN, Support arm |
| 21 |
E87-CP-1 |
TENSIONER, Chain |
| 23 |
20324-S7/8 |
BOLT, Tensioner to block |
| 24 |
45504-S2 |
BOLT, Tensioner to block |
| 25 |
34825-S7/8 |
LOCKWASHER |
| 26 |
115004-ES |
KEY, Sprocket to shaft |
| 27 |
116E-6306 |
SPROCKET, Crankshaft |
| 28 |
105E-6310 |
OIL SLILNGER,Crankshaft |
| 29 |
105E-6312 |
PULLEY, Crankshaft |
| 30 |
120766-ES2 |
WASHER |
| 31 |
34806-S7/8 |
LOCKWASHER |
| 32 |
120602-ES8 |
BOLT, Pulley to shaft |
