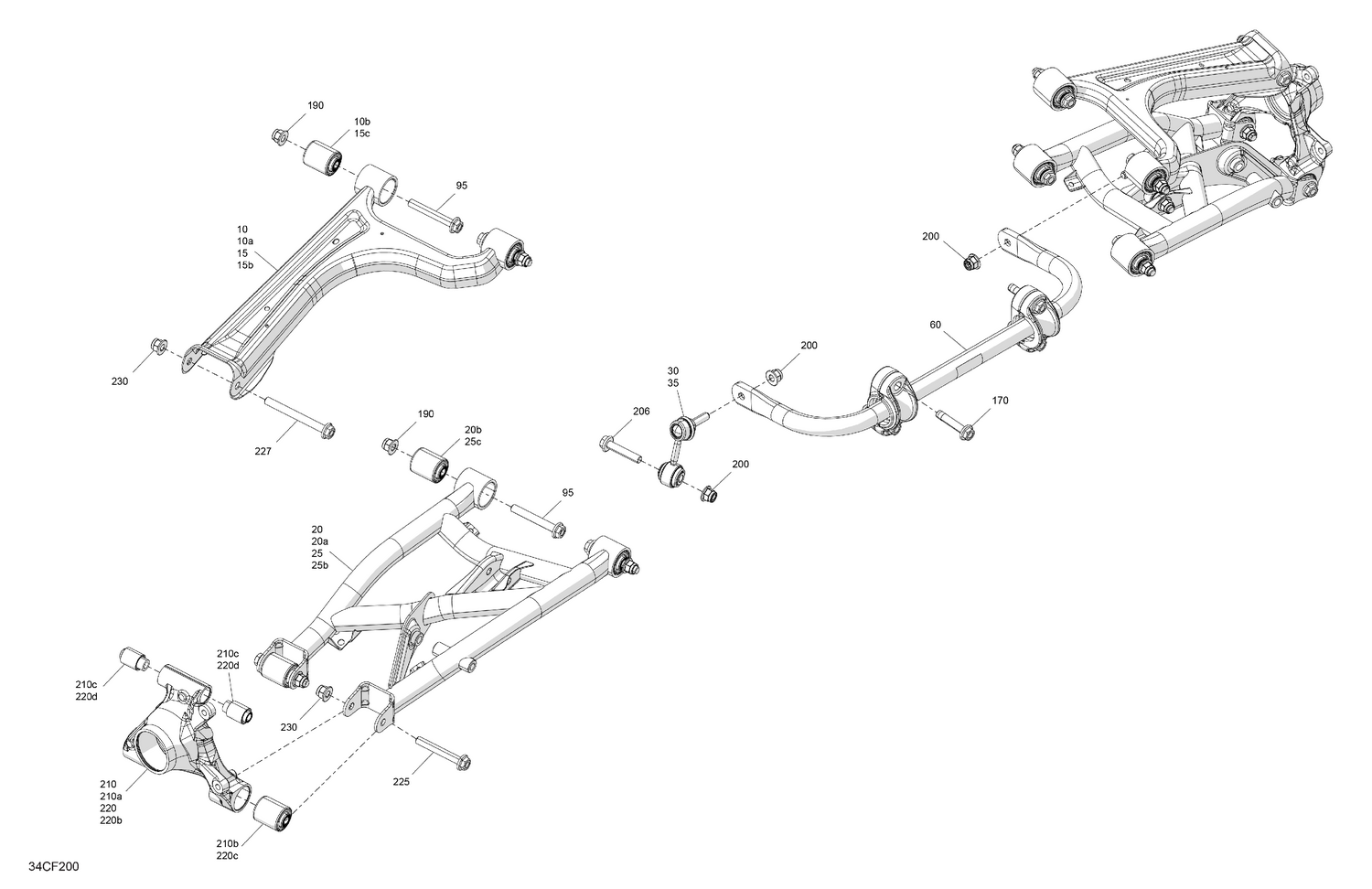

05- Suspension - Rear Components
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715011014 | Deep Black, LH Upper Suspension Arm Ass'y |
| 10b | 706005367 | Suspension Arm Bushing |
| 15b | 715011015 | Deep Black, RH Upper Suspension Arm Ass'y |
| 15c | 706005367 | Suspension Arm Bushing |
| 20a | 715011016 | Deep Black, LH Lower Suspension Arm Ass'y |
| 20b | 706005367 | Suspension Arm Bushing |
| 25b | 715011017 | Deep Black, RH Lower Suspension Arm Ass'y |
| 25c | 706005367 | Suspension Arm Bushing |
| 30 | 706006413 | RH Link Stabilizer Bar Link |
| 35 | 706006414 | LH Link Stabilizer Bar Link |
| 60 | 706005375 | Stabilizer Bar Ass'y |
| 95 | 250000859 | Flange Screw M12 X 85 |
| 170 | 250000857 | Flange Screw M12 X 60 |
| 190 | 250001195 | Elastic Flange Nut M12 |
| 200 | 250001195 | Elastic Flange Nut M12 |
| 206 | 250000857 | Flange Screw M12 X 60 |
| 210a | 715011018 | LH Knuckle Ass'y |
| 210b | 706005367 | Suspension Arm Bushing |
| 210c | 706005327 | Suspension Arm Bushing |
| 220b | 715011019 | RH Knuckle Ass'y |
| 220c | 706005367 | Suspension Arm Bushing |
| 220d | 706005327 | Suspension Arm Bushing |
| 225 | 250000859 | Flange Screw M12 X 85 |
| 227 | 250000860 | Screw Flange M12 X 115 |
