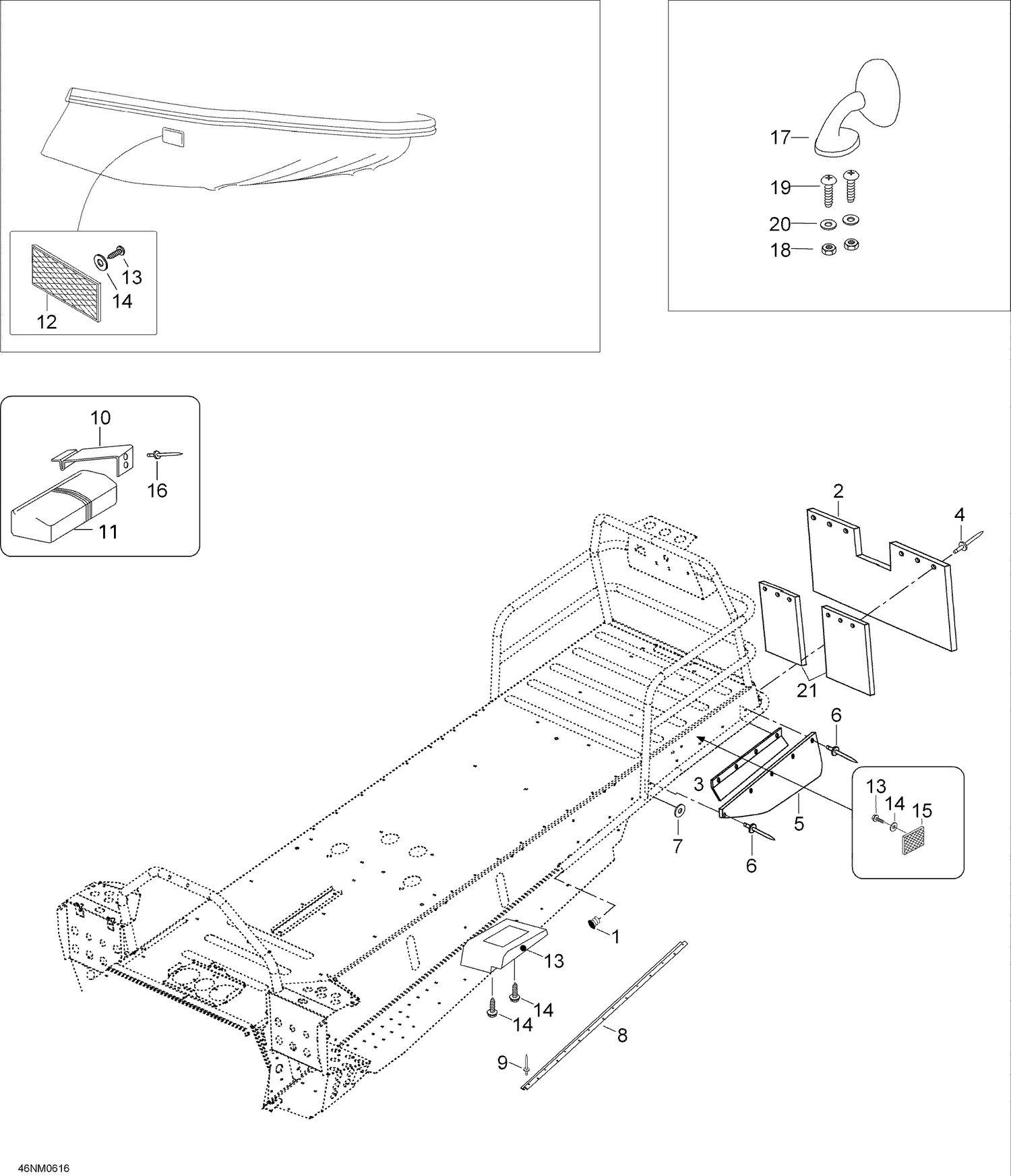

| Ref | Part Number | Description |
|---|
| 1 |
M28136 |
PLUG - Call your local BRP dealership |
| 3 |
M5340532 |
Support |
| 6 |
M36097 |
RIVET - Call your local BRP dealership |
| 8 |
605348881 |
ANTISLIPERRY RUNNING BAND - Call your local BRP dealership |
| 9 |
M36010 |
Rivet |
| 11 |
605350525 |
TOOL KIT - Call your local BRP dealership This part replaces 605350523. |
| 12 |
414510200 |
REFLECTOR, AMBER - Call your local BRP dealership |
| 13 |
M40070 |
Screw |
| 14 |
234451418 |
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 15 |
414510100 |
REFLECTOR, RED - Call your local BRP dealership |
| 17 |
414971910 |
RH MIRROR - Call your local BRP dealership |
| 17 |
414972010 |
LH MIRROR - Call your local BRP dealership |
| 18 |
232541414 |
Elastic Stop Nut M4 |
| 19 |
M40167 |
Screw |
| 20 |
M20001 |
Washer |
