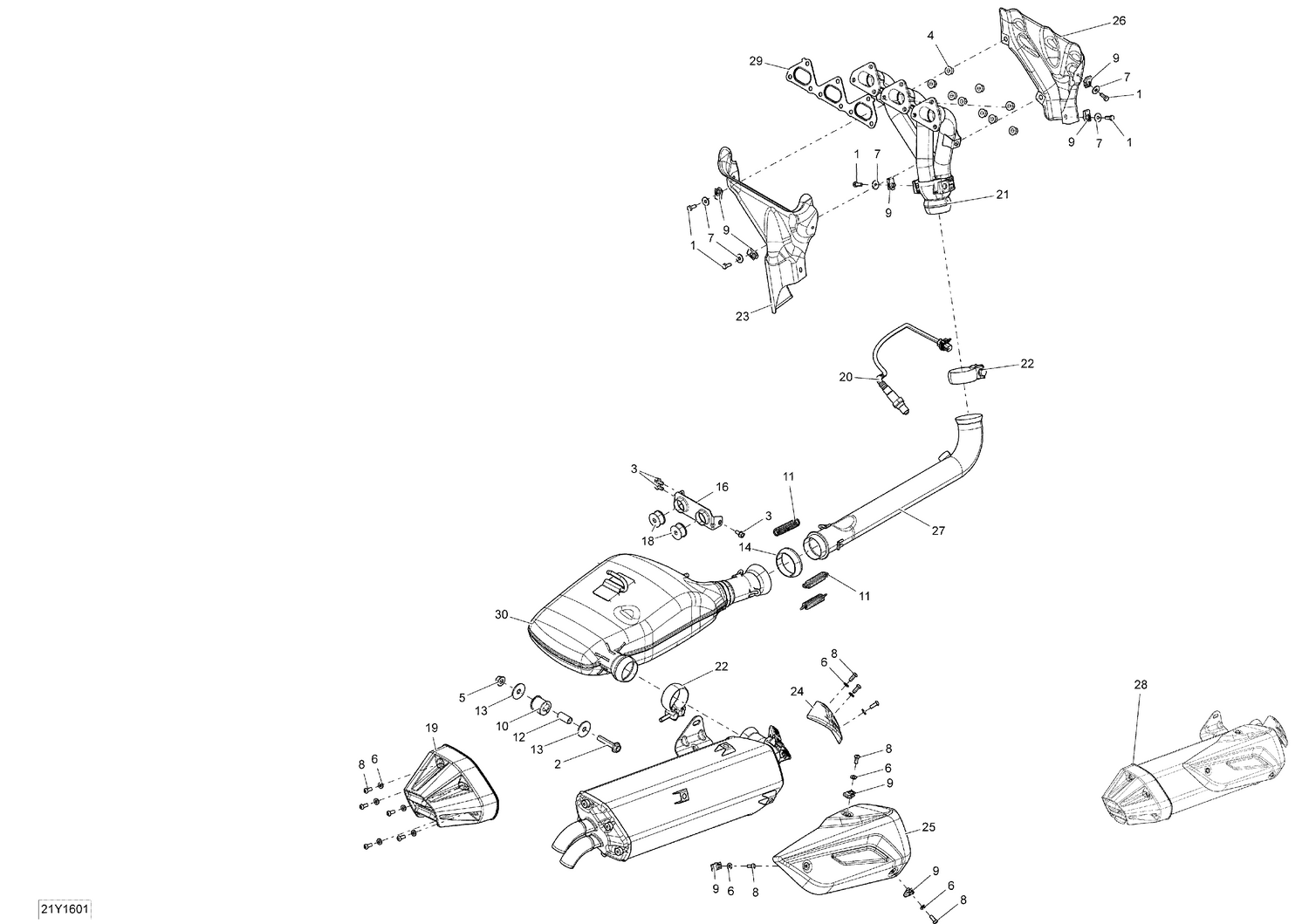

01- Exhaust System
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207361660 | Hex. Screw M6 X 16, Scotch Grip |
| 2 | 207505046 | Hex. Flange Screw M10 X 50, Scotch Grip |
| 3 | 210261250 | Hex. Flange Screw M6 X 12 |
| 4 | 233081416 | Hex. Flange Nut M8 |
| 5 | 233101600 | Hex. Flange Nut M10 |
| 7 | 234062600 | Flat Washer M6, Stainless |
| 9 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 10 | 293830162 | Anti-Vibration Rubber |
| 11 | 415107100 | Spring |
| 12 | 503189282 | Bushing |
| 13 | 506150000 | Washer 10 mm |
| 14 | 514054174 | Exhaust Gasket |
| 15 | 707600638 | Rubber Bumper |
| 16 | 707600661 | Front Bracket |
| 17 | 707600666 | RETAINING ROD - Call your local BRP dealership |
| 18 | 707600702 | Anti-Vibration Rubber |
| 20 | 707600872 | Oxygen Sensor |
| 21 | 707601922 | Exhaust Manifold This part replaces 707600937. |
| 22 | 707600980 | Exhaust Clamp |
| 23 | 707603641 | Heat Shield interior This part replaces 707601028. |
| 26 | 707603642 | Heat Shield Exterior This part replaces 707601504. |
| 27 | 707601605 | Exhaust Tuned Pipe |
| 29 | 707601857 | Exhaust Seal |
