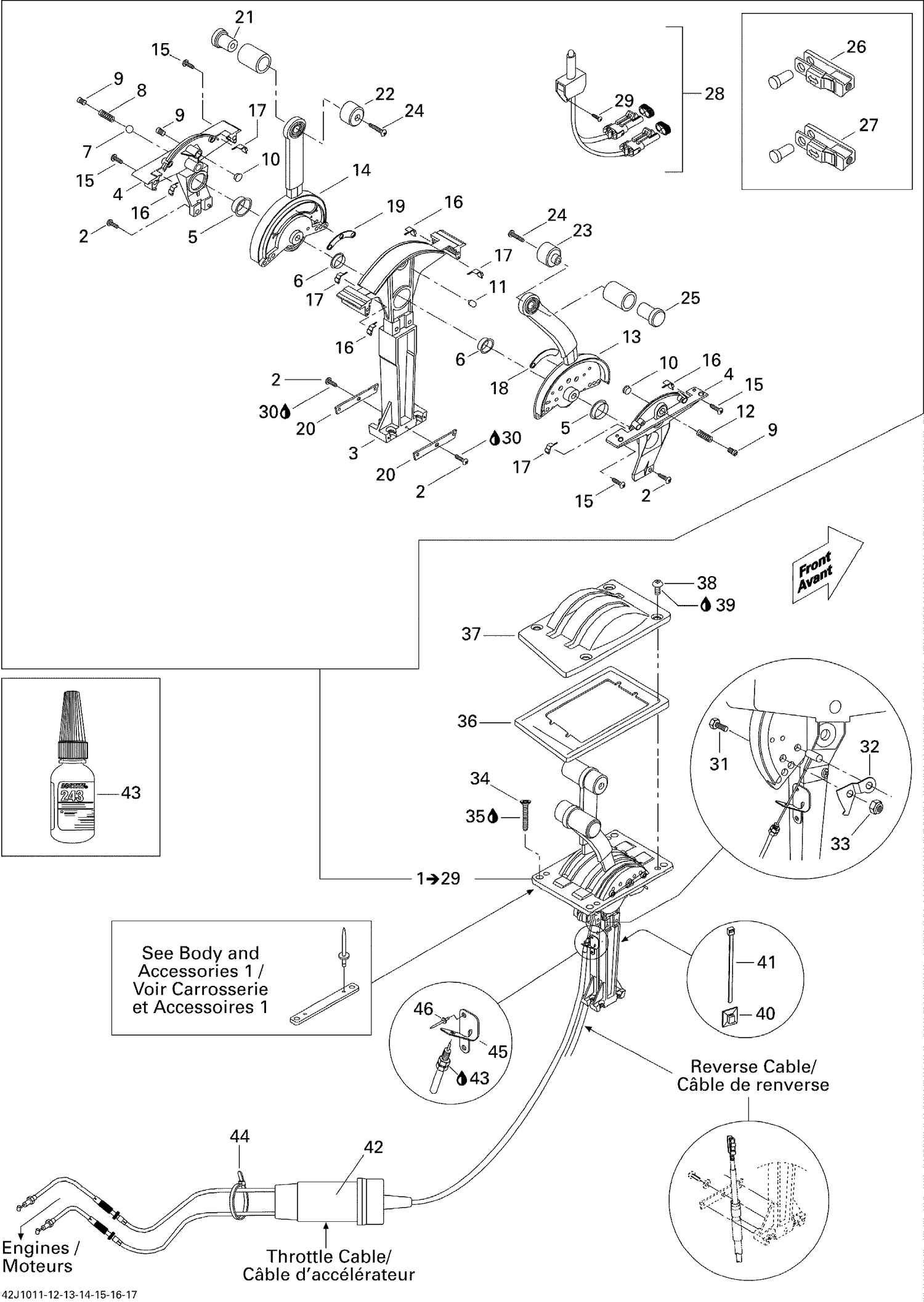

| Ref | Part Number | Description |
|---|
| 2 |
208651660 |
SCREW M5 X 16 - Call your local BRP dealership |
| 3 |
Not |
Available As Spare Part - LH Frame |
| 4 |
Not |
Available As Spare Part - Half-Case |
| 5 |
277000397 |
BUSHING - Call your local BRP dealership |
| 6 |
277000398 |
BUSHING - Call your local BRP dealership |
| 7 |
277000399 |
BALL - Call your local BRP dealership |
| 8 |
277000400 |
SPRING - Call your local BRP dealership |
| 9 |
277000402 |
CAP SCREW - Call your local BRP dealership |
| 10 |
277000403 |
FRICTION INSERT - Call your local BRP dealership |
| 11 |
277000404 |
BLOCKING PIVOT - Call your local BRP dealership |
| 12 |
277000401 |
SPRING - Call your local BRP dealership |
| 13 |
204390502 |
THROTTLE LEVER - Call your local BRP dealership |
| 14 |
204390503 |
SHIFT LEVER - Call your local BRP dealership |
| 15 |
204100016 |
SCREW M5 X 20 - Call your local BRP dealership |
| 16 |
Not |
Available As Spare Part - RH Water Seal |
| 17 |
277000424 |
LH Water Seal |
| 18 |
277000659 |
THROTTLE LEVER SPACER - Call your local BRP dealership |
| 19 |
277000408 |
Shift Lever Spacer |
| 20 |
204390227 |
RETAINING PLATE - Call your local BRP dealership |
| 21 |
204390504 |
SHIFT LEVER SLEEVE - Call your local BRP dealership |
| 22 |
204390506 |
CYLINDER - Call your local BRP dealership |
| 23 |
204390507 |
Cap |
| 24 |
204100214 |
SCREW M6 X 25 - Call your local BRP dealership |
| 25 |
204390508 |
Cylinder |
| 26 |
204390226 |
CLEVIS L26 - Call your local BRP dealership |
| 27 |
204390225 |
CLEVIS L25 - Call your local BRP dealership |
| 28 |
204390464 |
NEUTRAL SWITCH ASS'Y - Call your local BRP dealership |
| 29 |
208630660 |
SCREW M3 X 6 - Call your local BRP dealership |
| 30 |
293800060 |
Loctite 243, 10 ml |
| 31 |
207151660 |
HEX. SCREW M5 X 16 - Call your local BRP dealership |
| 32 |
204390045 |
THROTTLE LINK - Call your local BRP dealership |
| 33 |
232551600 |
Hex. Elastic Nut M5 |
| 34 |
205353060 |
SCREW M5 X 30 - Call your local BRP dealership |
| 35 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 36 |
204390482 |
Control Handle Base Plate |
| 37 |
204390524 |
CONTROL COVER - Call your local BRP dealership |
| 38 |
205341060 |
SOCKET HEAD SCREW M4 X 10 - Call your local BRP dealership |
| 39 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 40 |
293750015 |
TIE RAP MOUNT - Call your local BRP dealership |
| 41 |
293750001 |
Tie Wrap 94 mm |
| 42 |
204390574 |
Throttle Cable |
| 43 |
293800060 |
Loctite 243, 10 ml |
| 44 |
414115200 |
Tie-Rap 180 mm |
| 45 |
277000504 |
CABLE SUPPORT - Call your local BRP dealership |
