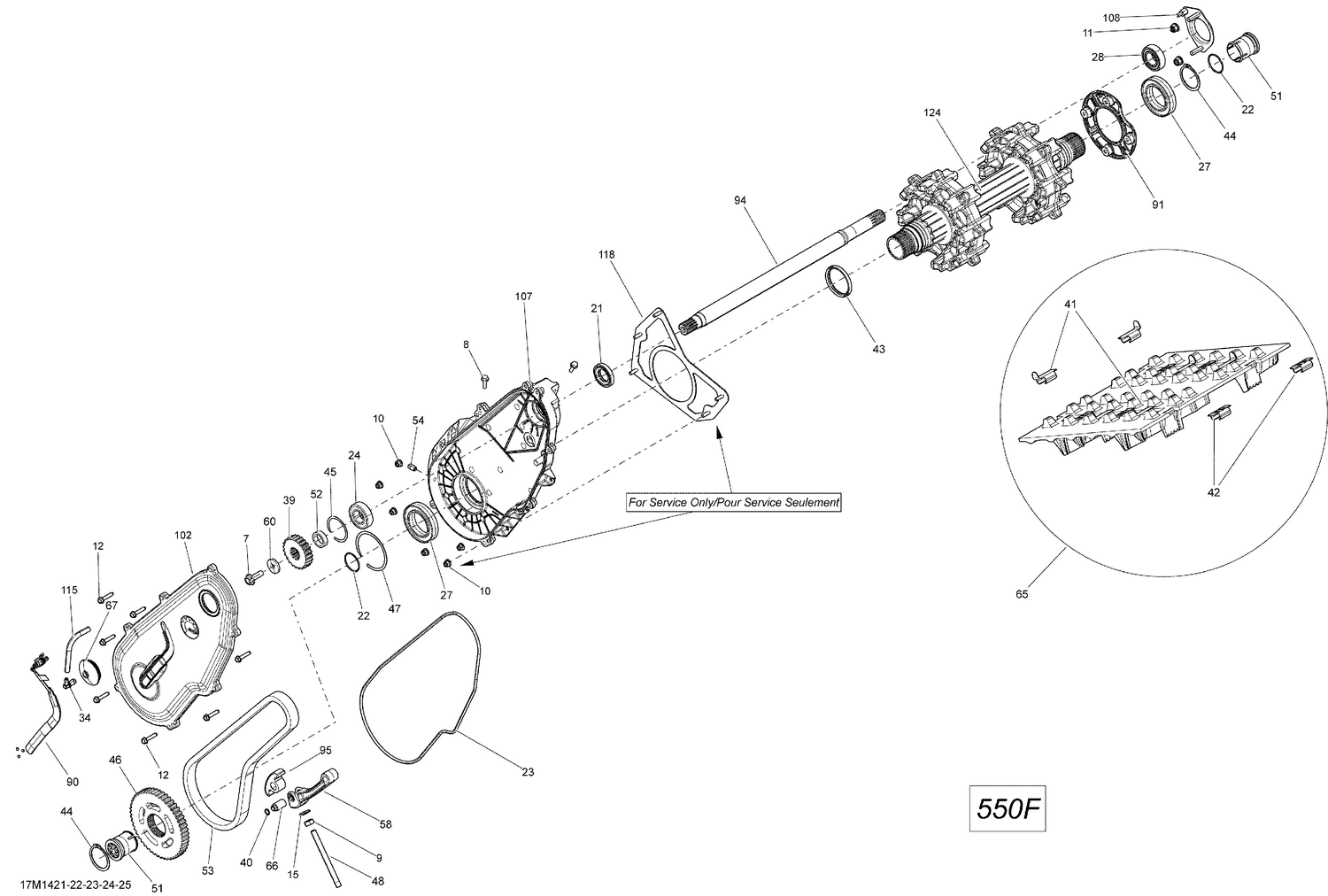

05- Drive System
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 7 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip |
| 8 | 207662034 | Hex. Flange Screw M6 X 20 |
| 9 | 232006414 | Hex. Nut M10 X 1.5 |
| 10 | 233261434 | Flange Elastic Nut M6 |
| 11 | 233281414 | Hex. Flange Elastic Nut M8 |
| 12 | 210263050 | Hex. Flange Screw M6 X 30 This part replaces 210263080. |
| 15 | 250200100 | Bonded Washer |
| 21 | 293200168 | Oil Seal This part replaces 293250175. |
| 22 | 293300122 | O-Ring |
| 23 | 293300130 | Tight Seal |
| 24 | 293350115 | Ball Bearing This part replaces 293350055. |
| 27 | 293350059 | Ball Bearing |
| 28 | 293350074 | Ball Bearing |
| 34 | 414580700 | Male Connector |
| 35 | 293200158 | Oil Seal This part replaces 415049300. |
| 39 | 504152031 | Sprocket, 19 Teeth |
| 40 | 504152282 | Circlip |
| 41 | 415129528 | Track Guide |
| 42 | 504152651 | Cleat |
| 43 | 293200159 | Oil Seal This part replaces 504152571. |
| 44 | 504152572 | Circlip |
| 45 | 504152576 | Circlip |
| 46 | 861805538 | Kit Sprocket This part replaces 504152593. |
| 47 | 504152582 | Circlip |
| 48 | 504152602 | Adjustment Screw |
| 51 | 504152619 | Magnetic Cap |
| 52 | 504152628 | Shim |
| 53 | 504152579 | Drive Chain, 102 Links |
| 54 | 504152854 | Magnetic Plug 1/8 - 27 NPTF |
| 58 | 504153429 | Tensioner chain This part replaces 504152685. |
| 60 | 504152784 | Spring Washer M10 |
| 65 | 504152606 | Track Ass'y 15"X120"X1.2RS" |
| 65 | 504152734 | Track Ass'y, 16X137X1.2RS |
| 65 | 504152838 | Track Ass'y 15" X 137" X 1.2C" |
| 65 | 504152907 | Track Ass'y, 16X137X1.2C |
| 65 | 504154391 | Track 16 X 154 X 1,5 This part replaces 504152761. |
| 66 | 504152841 | Tensioner Axle |
| 67 | 504152860 | Cap |
| 90 | 504152896 | Rotation Sensor |
| 91 | 504153886 | Retaining Ring This part replaces 504152949. |
| 94 | 504153000 | Countershaft |
| 95 | 504152739 | Slider Chain |
| 102 | 504153410 | Chaincase Cover Ass'y This part replaces 504153146. |
| 107 | 504153405 | Chaincase This part replaces 504153180. |
| 108 | 504153185 | Bearing Housing |
| 115 | 219704410 | Polyurethane Hose 10000Mm Long |
| 118 | 518325816 | Plate |
