Home / BRP / EVINRUDE / 2000 / 30 / E30TE4SSS 4-Stroke, Elec. Start, Tiller, 15 IN. shaft 2000 / 10- Electrical Accessories 4

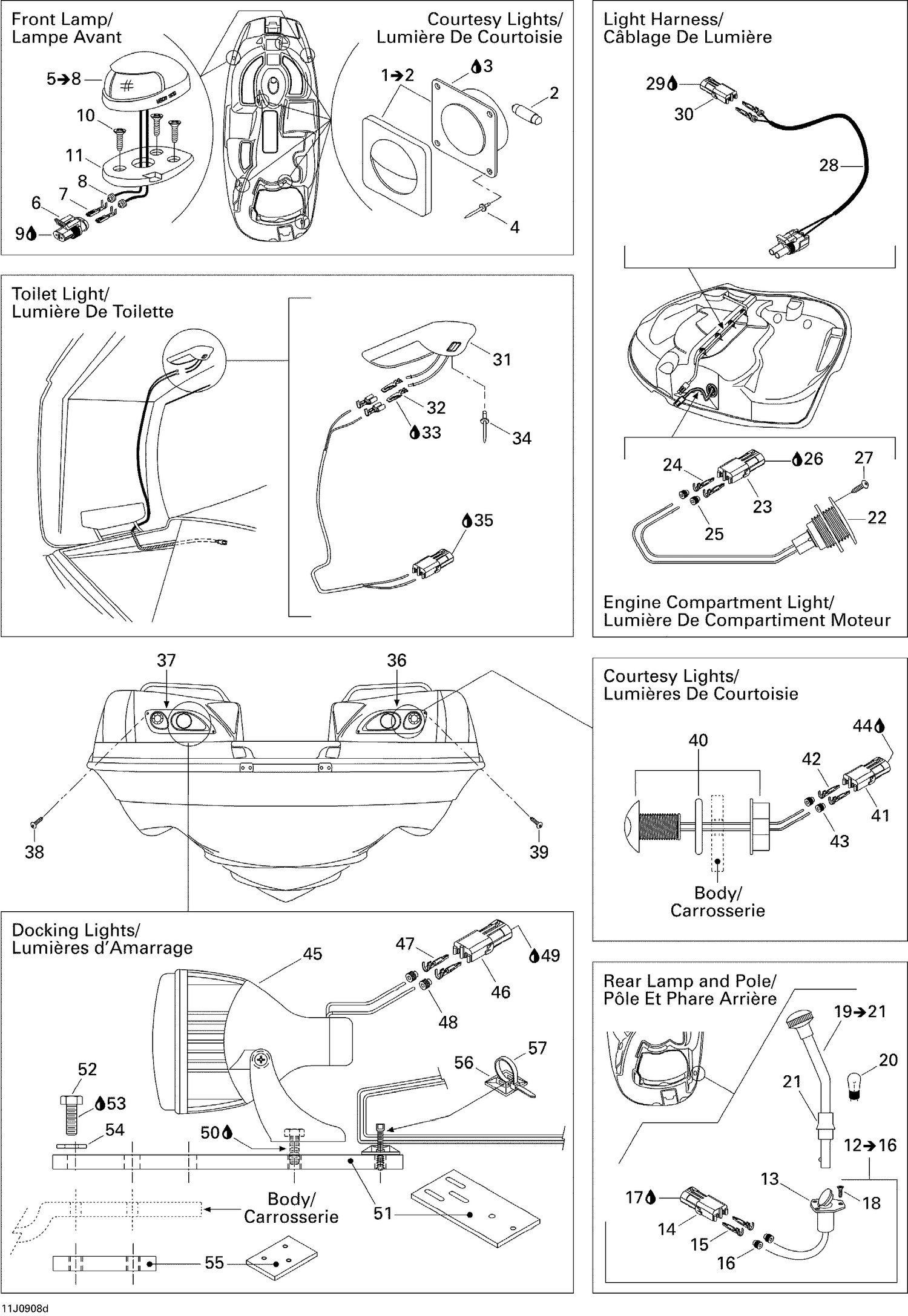

10- Electrical Accessories 4

10- Electrical Accessories 4

Parts (52)

RefPart NumberDescription
2 204470081 BULB - Call your local BRP dealership
3 219704453 Was 293550004 Dielectric Grease, 150 g
4 293150032 RIVET_POP 1/8 X ,487 - Call your local BRP dealership
6 409209500 Female Housing, 2 Circuits
7 278001014 Female Terminal
8 278001013 Wire Seal
9 219704453 Was 293550004 Dielectric Grease, 150 g
10 209642560 PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
11 204470072 FRONT LAMP SUPPORT - Call your local BRP dealership
13 204470990 REAR LIGHT BASE - Call your local BRP dealership
14 278000217 Female Housing, 2 Circuits
15 278000222 Male Terminal
16 278000218 Wire Seal
17 219704453 Was 293550004 Dielectric Grease, 150 g
18 209943260 Phillips Tapping Screw M4.2 X 32
20 204470053 Bulb
21 204470350 COLLAR - Call your local BRP dealership
22 204470412 Engine Compartment Light
23 278000217 Female Housing, 2 Circuits
24 278000222 Male Terminal
25 278000218 Wire Seal
26 219704453 Was 293550004 Dielectric Grease, 150 g
27 241141660 Hex. Flange Screw K40 X 16
28 204470551 LIGHT HARNESS - Call your local BRP dealership
29 219704453 Was 293550004 Dielectric Grease, 150 g
30 278000217 Female Housing, 2 Circuits
31 204470414 TOILET LIGHT ASS?Y - Call your local BRP dealership
32 204470553 Male Terminal
33 219704453 Was 293550004 Dielectric Grease, 150 g
34 293150029 RIVET_POP 5/32 - Call your local BRP dealership
35 219704453 Was 293550004 Dielectric Grease, 150 g
36 204470620 Light Fascia, Port Side
37 204470619 Light Fascia, Starboard
38 204100058 Phillips Tapping Screw
39 204100058 Phillips Tapping Screw
40 204470514 Courtesy Light
41 278000217 Female Housing, 2 Circuits
42 278000222 Male Terminal
43 278000218 Wire Seal
44 219704453 Was 293550004 Dielectric Grease, 150 g
45 204470512 DOCKING LIGHT - Call your local BRP dealership
46 278000217 Female Housing, 2 Circuits
47 278000222 Male Terminal
48 278000218 Wire Seal
49 219704453 Was 293550004 Dielectric Grease, 150 g
50 293800060 Loctite 243, 10 ml
51 204470536 UPPER PLATE - Call your local BRP dealership
52 207163060 Hex. Screw M6 X 30
53 293800060 Loctite 243, 10 ml
54 234062600 Flat Washer M6, Stainless
55 204470537 LOWER PLATE - Call your local BRP dealership
56 293730040 Mount Dart
