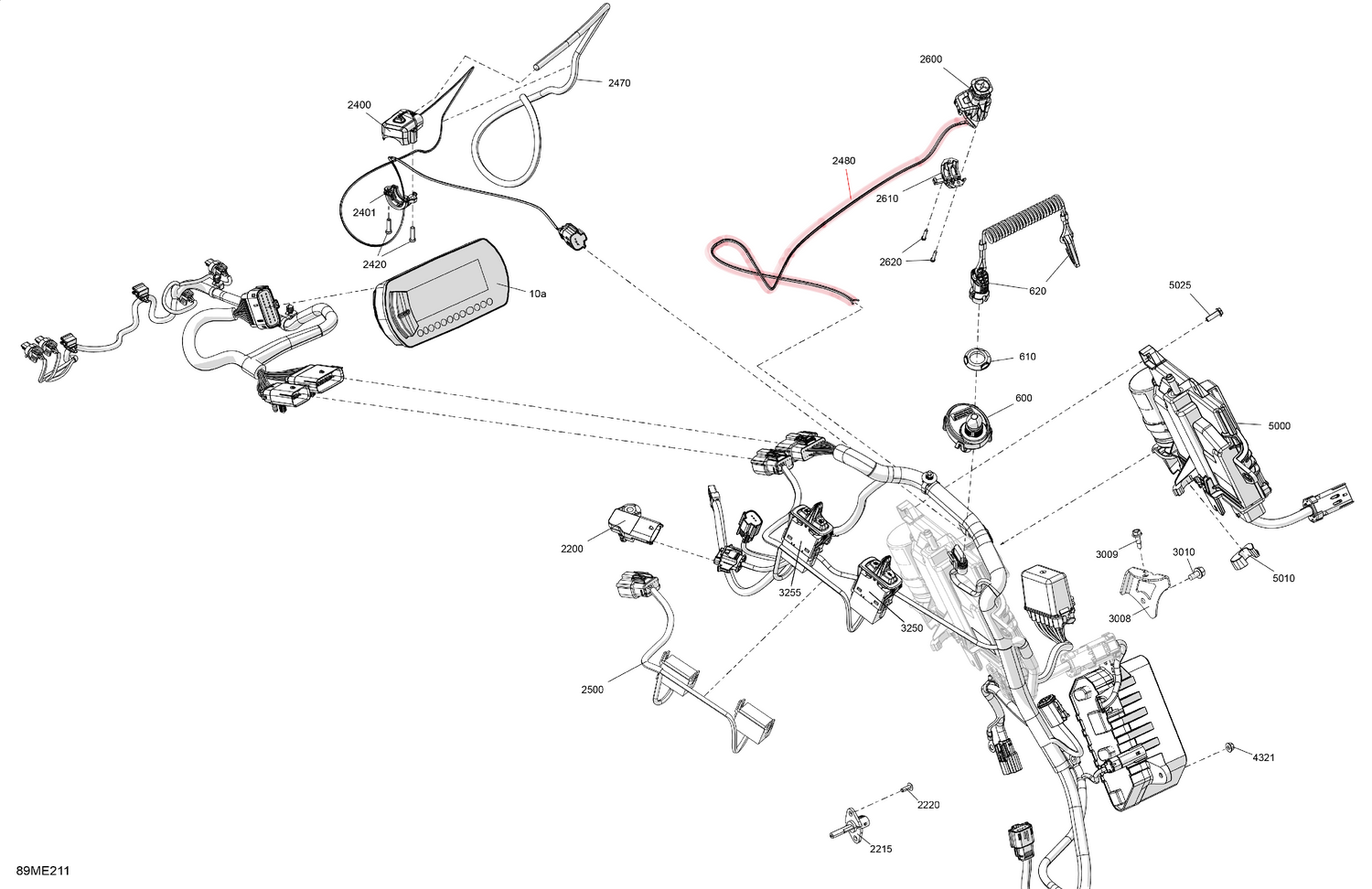

08- Electric - Upper Section
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 600 | 710008832 | Terminal DESS CAN |
| 610 | 278004274 | Specialized Nut |
| 620 | 515178286 | Grey, RF Key Ass'y |
| 2200 | 707000995 | Pressure And Temperature Sensor |
| 2215 | 515176366 | Air Temperature Sensor |
| 2220 | 250000577 | Torx Truss Screw K40 X 12 |
| 2400 | 515179056 | Ignition Switch |
| 2401 | 515177952 | Clamp |
| 2420 | 250000671 | Torx Screw |
| 2470 | 415130141 | Braided Sleeve |
| 2480 | 415130141 | Braided Sleeve |
| 2500 | 515179085 | Console Wiring Harness |
| 2600 | 515179472 | Emergency Stop Switch |
| 2610 | 515179182 | Clamp |
| 2620 | 250001201 | Screw PT. Socket T10 K30 X 16 |
| 3008 | 515179281 | Fuse Box Support |
| 3009 | 250000911 | Hex. Flange Screw M5 X 16 |
| 3010 | 250001062 | Hex. Flange Screw M6 X 16 |
| 3250 | 515178462 | Switch Rocker Hand Warmer |
| 3255 | 515178463 | Switch Rocker Headlignt |
| 4321 | 233151414 | Hex. Flange Nut M5 |
| 5000 | 515179354 | ECM Module |
| 5010 | 515178430 | Rubber Stopper |
