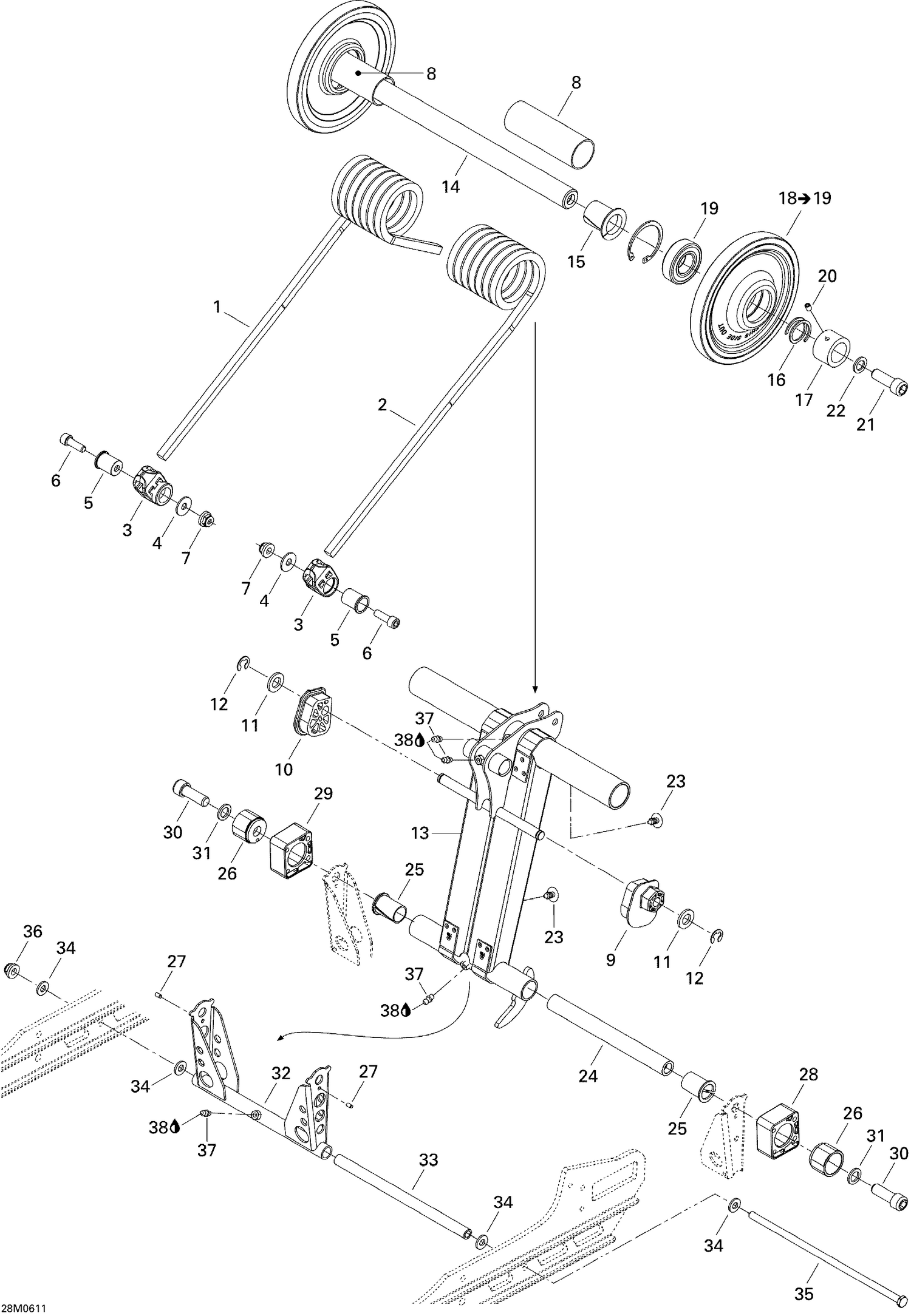

08- Rear Arm
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503191287 | RH Spring This part replaces 503190777. |
| 2 | 503191289 | LH Spring This part replaces 503190779. |
| 3 | 503190583 | SPRING SUPPORT - Call your local BRP dealership |
| 4 | 234082410 | Flat Washer 8 mm |
| 5 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 6 | 205082544 | Socket Head Screw M8 X 25 |
| 7 | 233281414 | Hex. Flange Elastic Nut M8 |
| 8 | 503191041 | Plastic Bushing |
| 9 | 503190023 | LH CAM ADJUSTER - Call your local BRP dealership |
| 10 | 503190022 | RH CAM ADJUSTER - Call your local BRP dealership |
| 11 | 503191435 | WASHER - Call your local BRP dealership |
| 12 | 293370013 | E-Circlip |
| 13 | 503191119 | Rear Arm |
| 14 | 503190569 | Upper Shaft |
| 15 | 503190619 | CUSHION - Call your local BRP dealership |
| 16 | 503189146 | Axle Spring |
| 17 | 503190570 | RETAINER RING - Call your local BRP dealership |
| 19 | 293350115 | Ball Bearing This part replaces 503190795. |
| 20 | 206260844 | Socket Set Screw M6 X 8 |
| 21 | 205523544 | Socket Head Screw M12 X 35, Scotch Grip |
| 22 | 503189276 | Washer |
| 23 | 414644300 | Black, Dart |
| 24 | 503192330 | Lower Shaft This part replaces 503190687. |
| 25 | 503191640 | Cushion This part replaces 503189286. |
| 26 | 503189488 | Block Guide |
| 27 | 250400005 | Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership |
| 28 | 503191563 | LH Block, 4 Positions This part replaces 503190623. |
| 29 | 503190622 | RH Block, 4 Positions |
| 30 | 205523544 | Socket Head Screw M12 X 35, Scotch Grip |
| 31 | 503189148 | Washer |
| 32 | 503191091 | PIVOT ARM - Call your local BRP dealership |
| 33 | 503189156 | Pivot Arm Axle |
| 34 | 503189157 | Washer |
| 35 | 503192440 | Bolt M8 X 248mm This part replaces 732601198. |
| 36 | 233281414 | Hex. Flange Elastic Nut M8 |
