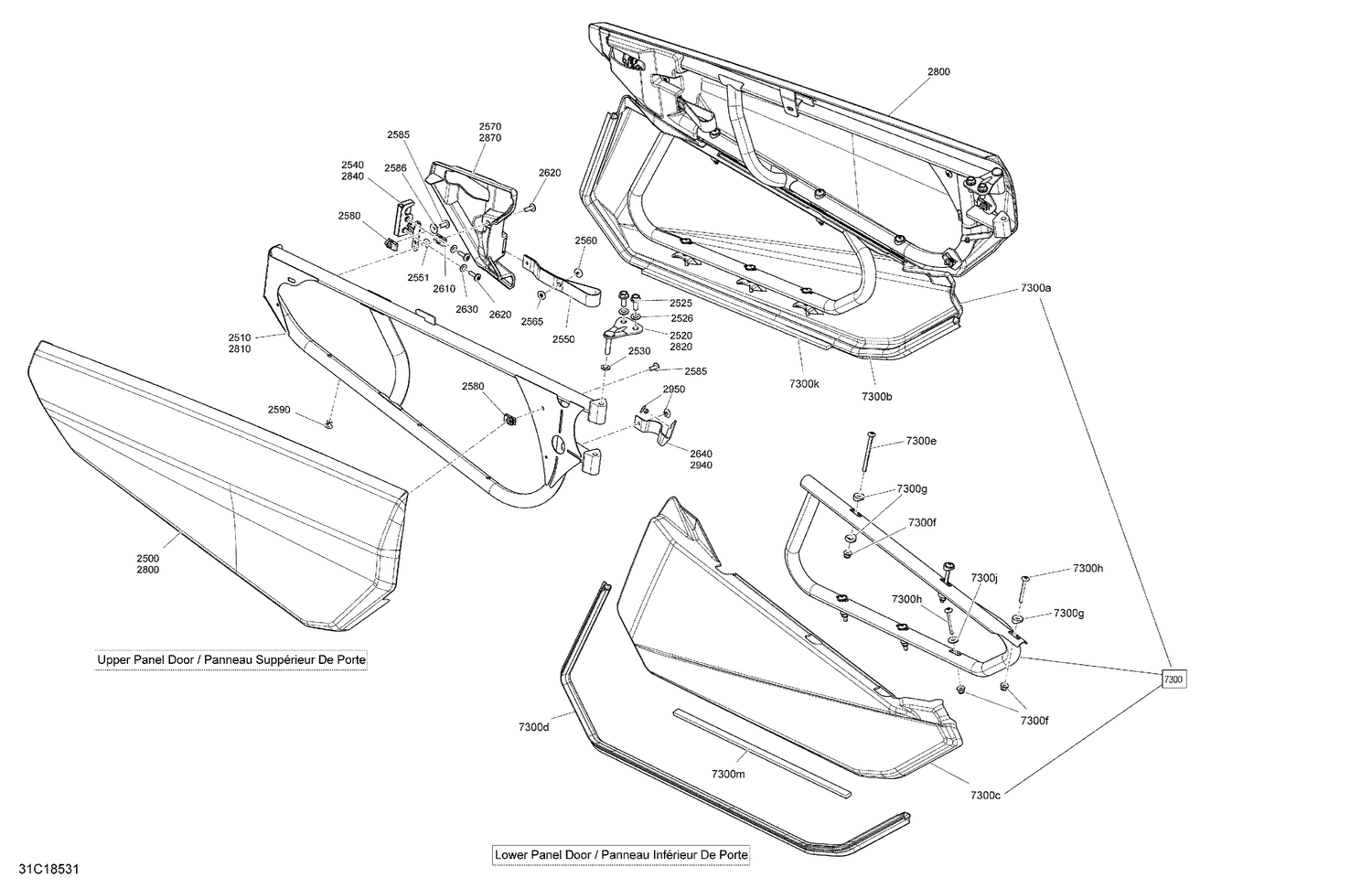

09- Body Side Part Maverick X3 Sunburst Yellow Models - Package XMR
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 2500 | 705014333 | Carbon Black, LH Front Door Panel This part replaces 705012472. |
| 2520 | 705011187 | Door Support |
| 2525 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 2526 | 234081430 | Flat Washer M8 |
| 2530 | 234081100 | Flat Washer 8 mm, Nylon |
| 2540 | 705013095 | LH Latch This part replaces 705012183. |
| 2550 | 293850135 | Belt This part replaces 293850126. |
| 2551 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 2560 | 293730070 | Belt Stopper |
| 2565 | 293730072 | Belt Stopper |
| 2570 | 705010734 | LH Latch Cover |
| 2580 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2585 | 250000721 | Torx Truss Screw M6 X 16 |
| 2586 | 234062670 | Stainless Steel Flat Washer |
| 2590 | 293150103 | Pop Rivet 3/16" |
| 2610 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2620 | 250000722 | Torx Screw M6 X 20 |
| 2630 | 234062670 | Stainless Steel Flat Washer |
| 2640 | 293850129 | Door Belt |
| 2650 | 293150103 | Pop Rivet 3/16" |
| 2800 | 705014339 | Carbon Black, RH Front Door Panel This part replaces 705012473. |
| 2820 | 705011187 | Door Support |
| 2840 | 705013096 | RH Latch This part replaces 705012184. |
| 2870 | 705010735 | RH Latch Cover |
| 2940 | 293850129 | Door Belt |
| 2950 | 293150103 | Pop Rivet 3/16" |
| 7300a | 705010272 | RH Door Panels |
| 7300b | 705012018 | Door Seal |
| 7300c | 705010271 | LH Door Panels |
| 7300d | 705012018 | Door Seal |
| 7300e | 250000902 | Torx-Truss M/S M6 X 80 |
| 7300f | 233261494 | Hex. Flange Elastic Nut M6 |
| 7300g | 705202223 | Offset Washer |
| 7300h | 250000749 | Torx Truss Screw M6 X 50 |
| 7300j | 234062670 | Stainless Steel Flat Washer |
| 7300k | 219704364 | Neoprene Seal (1PAC=3M) |
