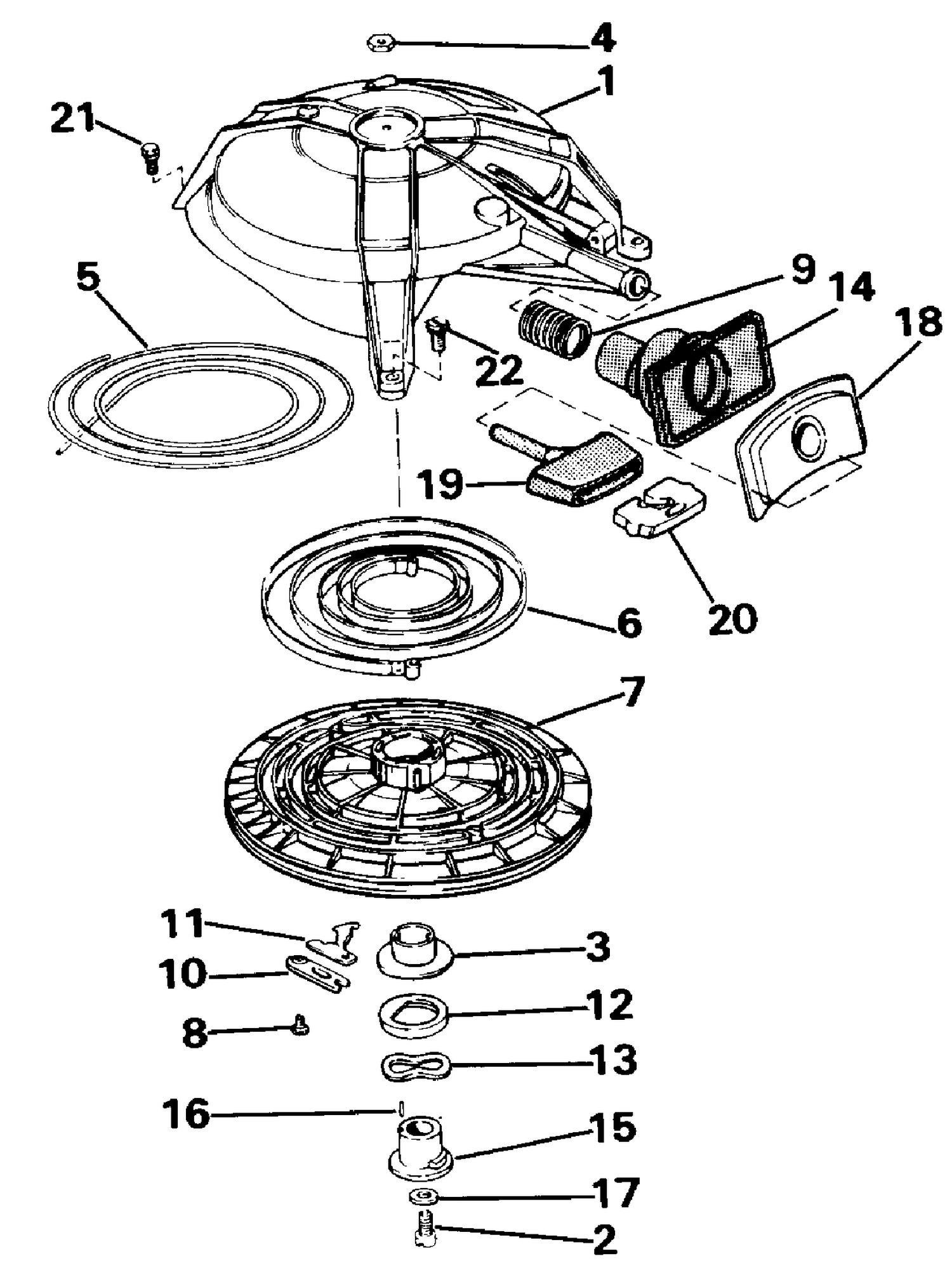

REWIND STARTER
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0387923 | HOUSING, Starter |
| 2 | 0336135 | SCREW, Flywheel This part replaces 0306284. |
| 3 | 0309513 | BUSHING, Spindle |
| 5 | ROPE | Ref: 6 0375836 SPRING Starter 0375836 |
| 7 | 0385690 | PULLEY, Starter |
| 8 | 0307163 | SCREW |
| 10 | 0202317 | RETAINER, Starter pawl |
| 11 | 0327398 | PAWL, Starter |
| 15 | 0379067 | SPINDLE & PIN ASSY |
| 18 | 0208424 | PLATE, Handle |
| 19 | 0329970 | HANDLE, Starter |
| 21 | 0308375 | SCREW, Housing to cylinder |
| 0396775 | 0396775 | REWIND STARTER ASSY. |
