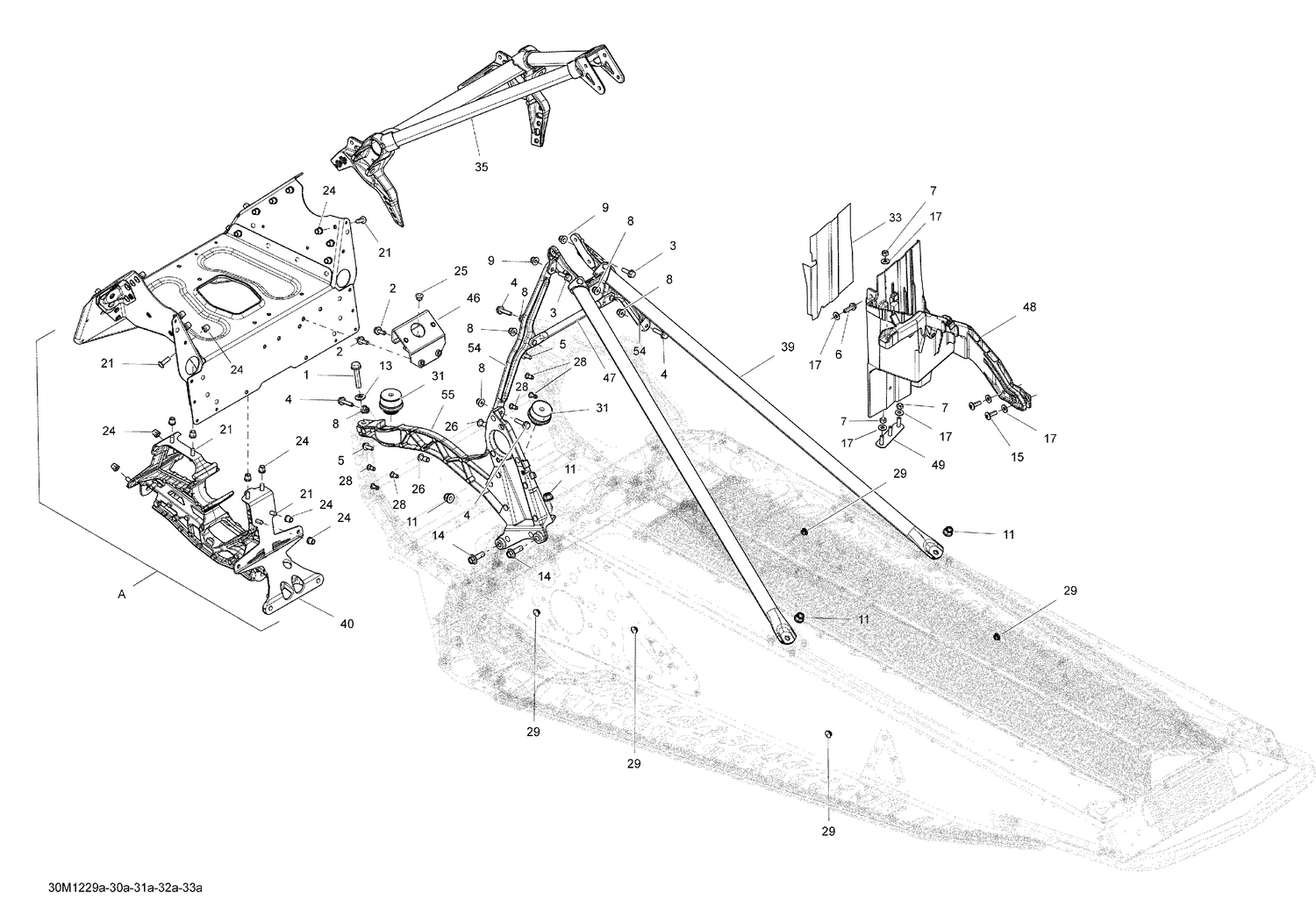

09- Frame Common Parts
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207584034 | Hex. Flange Screw, Scotch Grip |
| 2 | 207661644 | Hex. Flange Screw M6 X 16 |
| 3 | 207662044 | Hex. Flange Screw M6 X 20 |
| 4 | 207662544 | Hex. Flange Screw M6 X 25 |
| 5 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 6 | 210262040 | Hex. Flange Screw M6 X 20 |
| 7 | 232561414 | Elastic Stop Nut M6 |
| 8 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 9 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 11 | 233281414 | Hex. Flange Elastic Nut M8 |
| 13 | 234281474 | Conical Spring Washer M8 |
| 14 | 250000351 | Hex. Flange Screw M8 X 25, Nylon |
| 15 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402. |
| 17 | 250200039 | Flat Washer |
| 21 | 207662044 | Hex. Flange Screw M6 X 20 |
| 24 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 25 | 293150174 | Hemlock Rivet, 6.4 mm |
| 26 | 293150182 | Monobolt Rivet 6.4 |
| 28 | 293150191 | Monobolt Rivet, 4.8 mm |
| 29 | 293730041 | Full Moon Dart 8 mm |
| 31 | 512061516 | Vibration Damper This part replaces 512060295. |
| 33 | 514054755 | HEAT SHIELD - Call your local BRP dealership |
| 35 | 518326970 | Front Member |
| 39 | 518326559 | Rear Member |
| 40 | 518327487 | Front Suspension Support This part replaces 518325925. |
| 46 | 518326178 | Engine Support |
| 47 | 518326355 | Center Column Support |
| 48 | 518326472 | Battery Support |
| 49 | 518326550 | Retaining Plate |
| 54 | 518326848 | Upper Column Support |
| 55 | 415130014 | ASS'Y BRACE KIT - Call your local BRP dealership This part replaces 518327224. |
