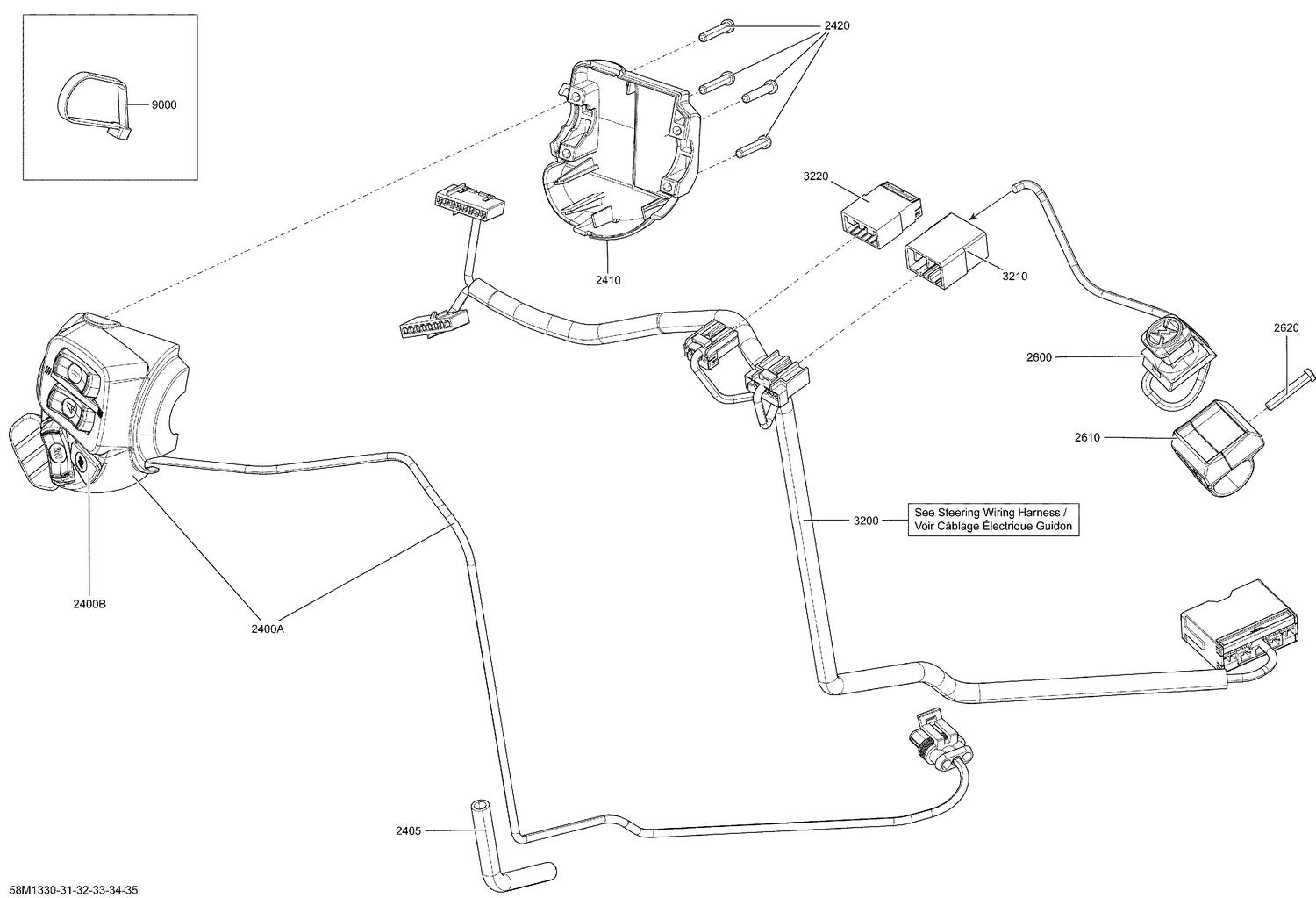

10- Electrical Accessories, Steering
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 2400B | 515176088 | Start/RER Button |
| 2405 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 2410 | 515175926 | Switch Housing Plate |
| 2420 | 250000263 | Torx Screw #8-18 |
| 2600 | 515177362 | Emergency Stop Switch |
| 2610 | 515177310 | Emergency Stop Switch Support This part replaces 515176825. |
| 2620 | 250000263 | Torx Screw #8-18 |
| 3200 | 515176867 | STEERING WIRING HARNESS ASS'Y - Call your local BRP dealership |
| 3210 | 515175817 | Male Terminal Housing, 8 Circuits |
| 3220 | 515175662 | Male Terminal Housing, 6 Circuits |
| 9000 | 293750001 | Tie Wrap 94 mm |
| 9000 | 293750002 | Tie Wrap 142 mm |
| 9000 | 293750009 | Tie-Rap 173 mm |
| 9000 | 414115200 | Tie-Rap 180 mm |
