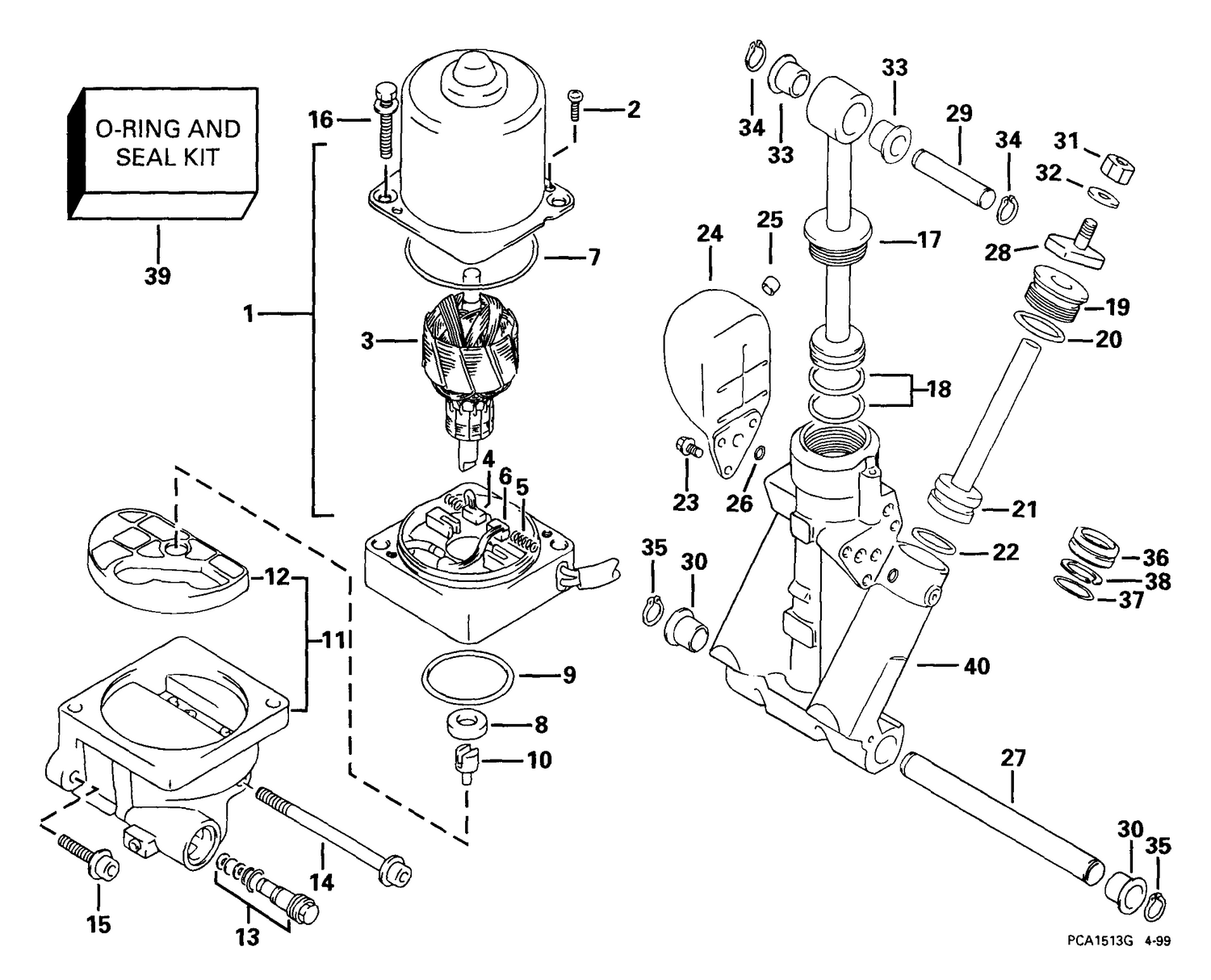

POWER TRIM/TILT HYDRAULIC
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 9 | 5031096 | O RING |
| 11 | 5030862 | PUMP ASSY. |
| 14 | 5030874 | BOLT |
| 15 | 5030875 | BOLT |
| 16 | 5030782 | BOLT, Through |
| 23 | 5030873 | BOLT, Reservoir |
| 27 | 5030856 | ROD, Tilt cylinder, lower |
| 28 | 5030857 | PAD, TRIM CYL RAM |
| 29 | 5030858 | PIN, Tilt cylinder, upper |
| 30 | 5030859 | BUSH |
| 31 | 5030052 | NUT This part replaces 5030342. |
| 33 | 5030554 | BUSHING |
| 34 | 5030570 | CIRCLIP, UPPER |
| 35 | 5030571 | CIRCLIP |
| 39 | 5031730 | O-RING & SEAL KIT |
