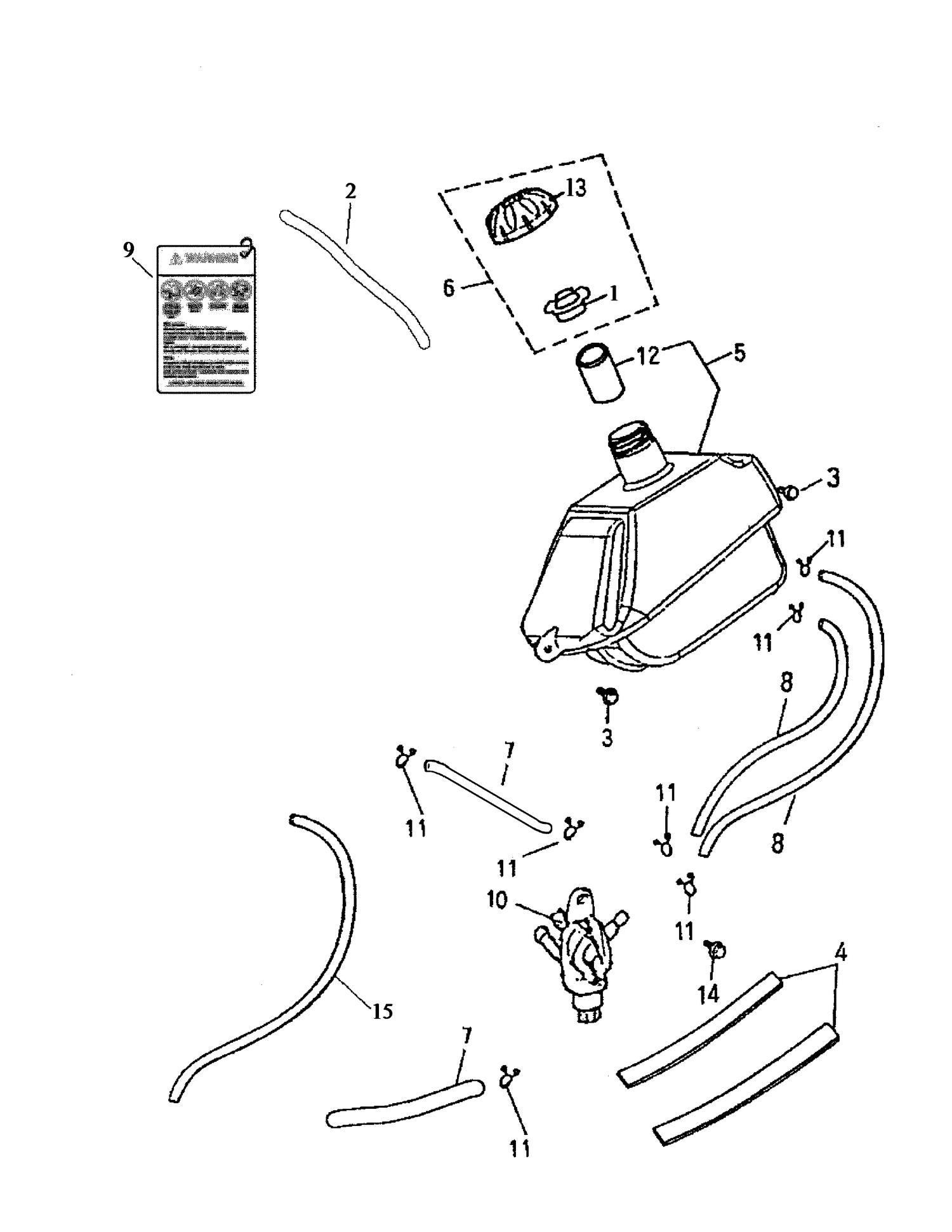

02- Fuel System
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A17631145000 | Fuel Tank Cap Gasket |
| 2 | A944000408355 | BREATHER HOSE - Call your local BRP dealership |
| 3 | A920000601410 | HEXAGONAL BOLT M6 X 14 - Call your local BRP dealership |
| 4 | A1750514500A | SPONGE PAD - Call your local BRP dealership |
| 5 | A17500166000 | FUEL TANK COMP - Call your local BRP dealership |
| 7 | A944000408182 | Fuel Tube |
| 8 | A17512145000 | Fuel Tube |
| 9 | Not | Available As Spare Part - Warning Label |
| 10 | A16950145000 | Fuel Cup |
| 11 | A9451008000 | Clip |
| 12 | A17633145000 | FUEL TANK TUBE - Call your local BRP dealership |
| 13 | Not | Available As Spare Part - Fuel Tank Cap Body |
| 14 | A960000601210G | HEXAGONAL WASHER FACE BOLT M6X12 - Call your local BRP dealership |
