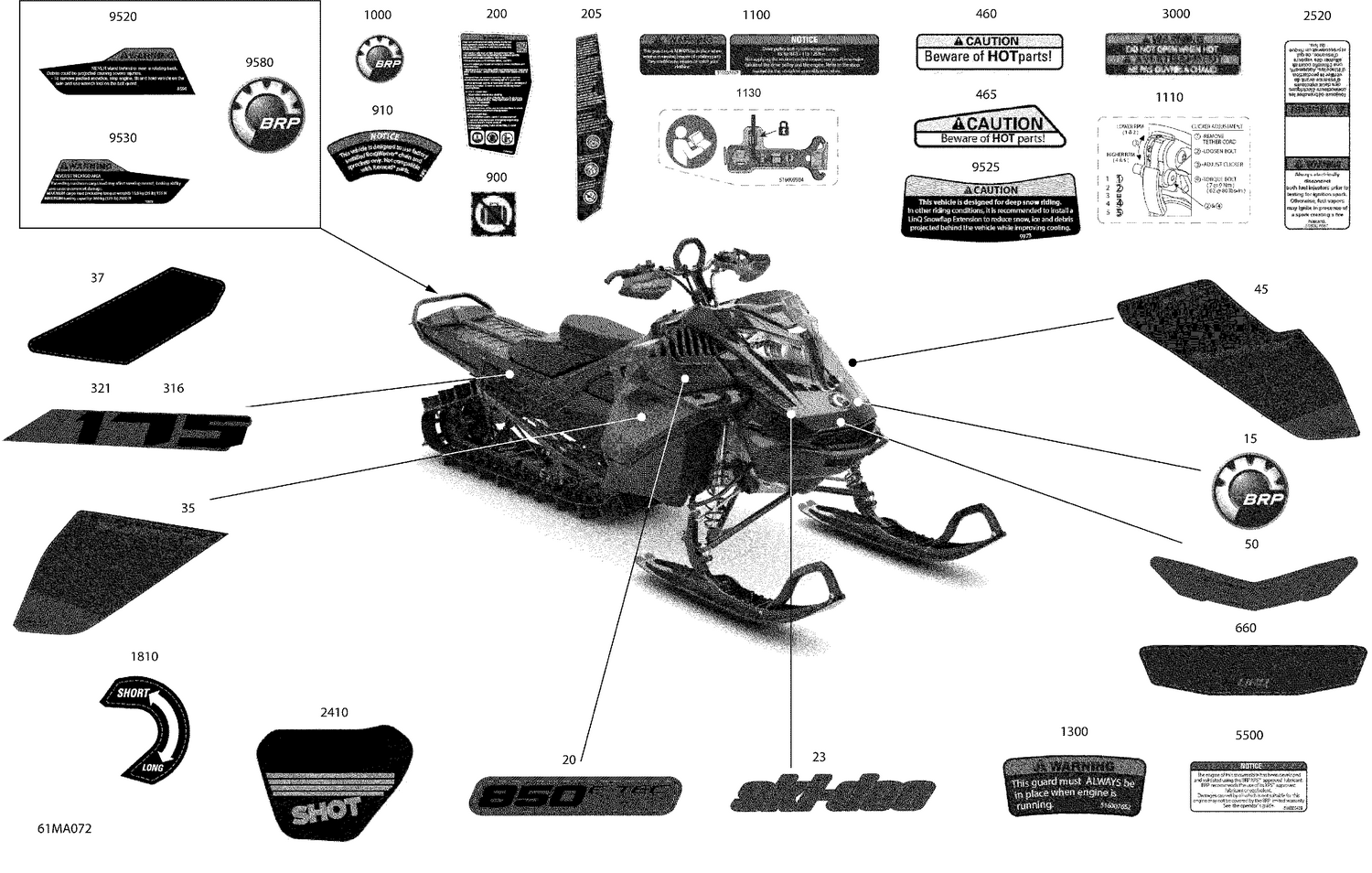

07- Body - Decals
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 516008739 | BRP Logo 68mm |
| 20 | 516010282 | Decal "850 E-TEC Turbo" |
| 23 | 516010283 | Decal "Ski-Doo" |
| 35 | 516010314 | RH Panel Decal Summit X ROTAX POWER |
| 37 | 516010545 | RH Upper Panel Decal |
| 45 | 516010313 | LH Panel Decal "850 E-TEC Summit X" |
| 50 | 516010277 | Front Hood Decal "Summit" |
| 200 | 516009232 | LH Warning Decal Security |
| 205 | 516010558 | RH Warning Decal Security |
| 316 | 516010324 | Decal RH Tunnel "175" |
| 321 | 516010323 | LH Decal Tunnel 175 |
| 460 | 516005280 | Caution Decal Hot Parts |
| 465 | 516009975 | Decal Caution Hot Parts |
| 660 | 516009856 | Standard Decal "Linq" |
| 900 | 516006866 | Restrictive Decal |
| 910 | 516009976 | Notice Label |
| 1000 | 704904615 | BRP Logo13 mm |
| 1100 | 516007667 | Warning Decal |
| 1110 | 516009265 | Decal Ramp Clicker |
| 1130 | 516009984 | Decal Tool |
| 1300 | 516007652 | Engine Guard Warning Decal |
| 1810 | 516009897 | Retaining Strap Decal |
| 2410 | 516008187 | Decal SHOT |
| 2520 | 516007661 | Warning Decal, Injectors |
| 3000 | 516005904 | Warning Decal |
| 5500 | 516008439 | Oil Warning Decal |
| 9520 | 516008594 | LH Safety Label |
| 9525 | 516009973 | Rear Caution Label |
| 9530 | 516010575 | Cargo Load Instruction Label |
