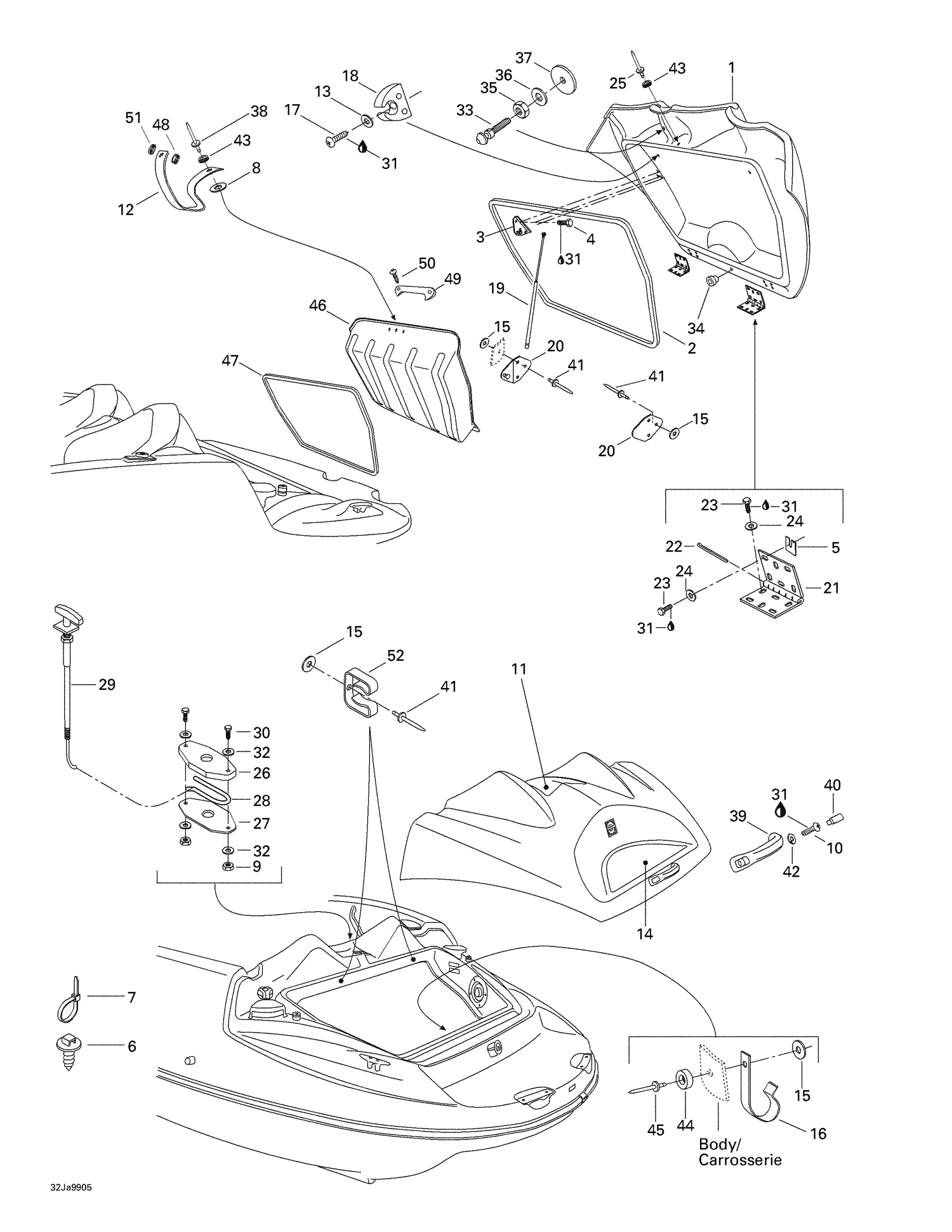

| Ref | Part Number | Description |
|---|
| 1 |
204070325 |
Engine Cover(5677) |
| 2 |
219704365 |
Was 293200017 Neoprene Seal |
| 3 |
291000654 |
CYLINDER SUPPORT - Call your local BRP dealership |
| 4 |
207151260 |
HEX. SCREW M6 X 12 - Call your local BRP dealership |
| 5 |
204070047 |
SPACER 3.2 MM - Call your local BRP dealership |
| 6 |
293730040 |
Mount Dart This part replaces 293730018. |
| 7 |
414115200 |
Tie-Rap 180 mm This part replaces 294000606. |
| 8 |
234032600 |
Flat Washer M3, Stainless |
| 9 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 10 |
205462560 |
SOCKET SCREW M6 X 25 - Call your local BRP dealership |
| 11 |
204070326 |
Upper Cover Carpet |
| 12 |
204000075 |
Nylon Strap (Black) (Meter) |
| 13 |
234040600 |
Flat Washer 4 mm |
| 14 |
204070328 |
Carpet - Speedster SK |
| 15 |
234051600 |
Flat Washer M5, Stainless |
| 16 |
414839700 |
Clip Cable |
| 17 |
208642560 |
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership |
| 18 |
291000642 |
Pole Support |
| 19 |
204070178 |
RH Retainer Cylinder |
| 20 |
204070252 |
Body Cylinder Support |
| 22 |
204070205 |
Cotter Pin M2.5 X 12 |
| 23 |
207162560 |
Hex. Screw M6 X 25 |
| 24 |
234061600 |
Stainless Flat Washer M6 |
| 25 |
293150015 |
Pop Rivet 1/8” |
| 26 |
204070037 |
LATCH BASE - Call your local BRP dealership |
| 27 |
204070036 |
LATCH COVER - Call your local BRP dealership |
| 28 |
204070038 |
SPRING - Call your local BRP dealership |
| 29 |
204070049 |
LATCH CABLE - Call your local BRP dealership |
| 30 |
207163560 |
Hex. Screw M6 X 35 |
| 31 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 32 |
234062600 |
Flat Washer M6, Stainless |
| 33 |
204700001 |
Latch Stud |
| 34 |
293720017 |
GROMMET - Call your local BRP dealership |
| 35 |
232100600 |
Hex. Jam Nut M10 |
| 36 |
234002600 |
Flat Washer 10 mm, Stainless |
| 37 |
291000628 |
RUBBER WASHER - Call your local BRP dealership |
| 38 |
293150023 |
RIVET_POP 1/8 X ,625 - Call your local BRP dealership |
| 40 |
204073190 |
GRIP HANDLE, BLACK - Call your local BRP dealership This part replaces 204070207. |
| 41 |
293150043 |
Pop Rivet 3/16" |
| 42 |
234061600 |
Stainless Flat Washer M6 |
| 43 |
204000084 |
BOTTOM SNAP - Call your local BRP dealership |
| 44 |
293830043 |
Rubber Stopper |
| 45 |
293150013 |
Pop Rivet 3/16" |
| 46 |
204050155 |
Access Cover |
| 47 |
219704368 |
Seal Tray 1000Mm Long |
| 48 |
204000085 |
SNAP COVER - Call your local BRP dealership |
| 49 |
204050159 |
HANDLE, BLACK - Call your local BRP dealership |
| 50 |
241141660 |
Hex. Flange Screw K40 X 16 |
| 51 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 204070368 |
Engine |
Cover(5681) 204070368 |
| 293750008 |
Tie |
Wrap 368 mm 293750008 |
