| Ref | Part Number | Description |
|---|
| 1 |
0391540 |

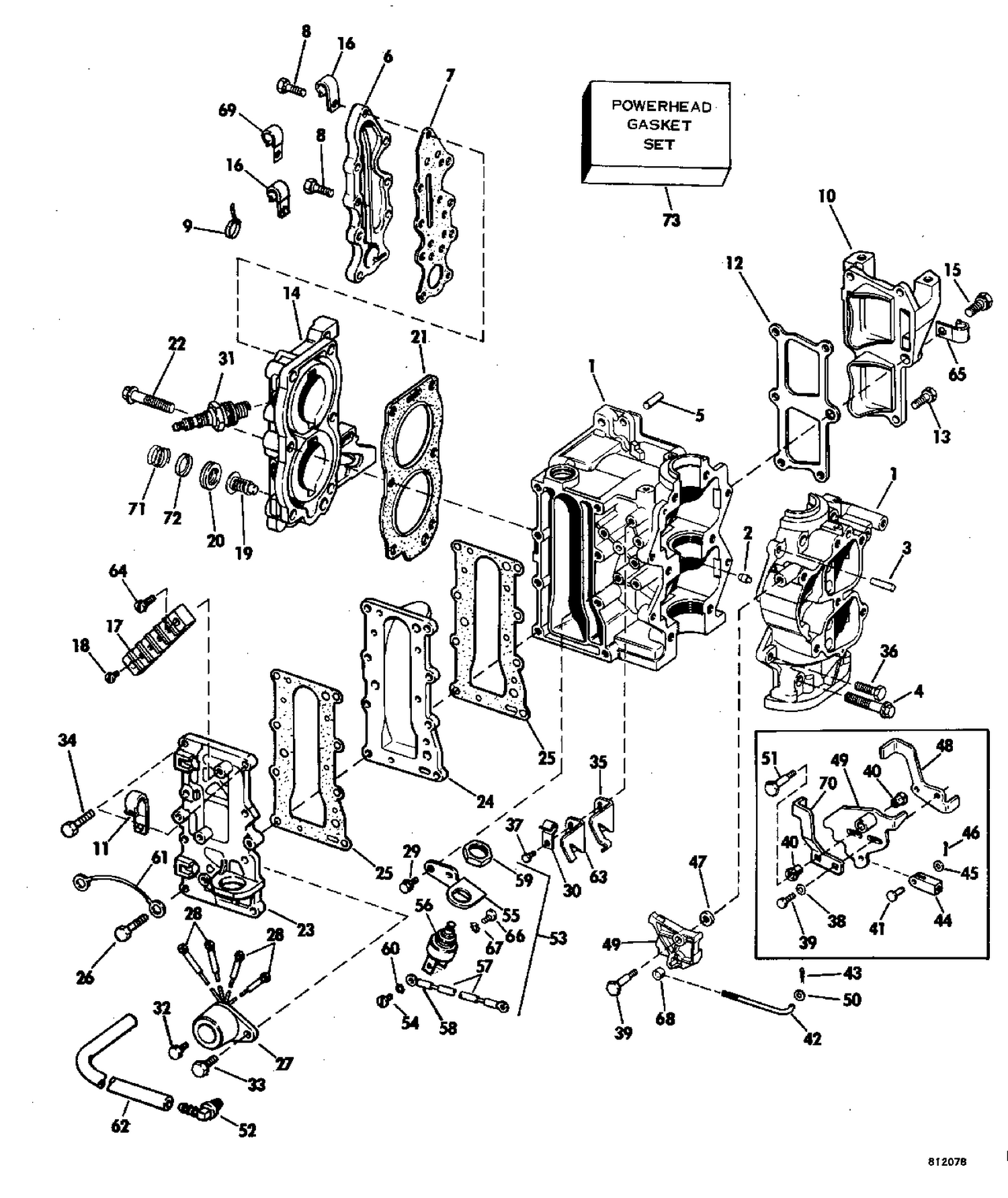

CYLINDER AND CRANKCASE ASSEMBLY |
| 6 |
0329919 |
WATER COVER, Cylinder head This part replaces 0325253. |
| 7 |
0329920 |
GASKET, Water cover This part replaces 0321387. |
| 8 |
0306409 |
VIS, collecteur vers carter-moteur |
| 9 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 10 |
0319350 |
BY-PASS COVER |
| 10 |
0336637 |
BYPASS COVER This part replaces 0318928. |
| 11 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 12 |
0319332 |
GASKET, By-pass cover |
| 13 |
0300646 |
VIS, ancrage |
| 14 |
0329917 |
CYLINDER HEAD This part replaces 0325255. |
| 15 |
0302479 |
VIS, démarreur vers bloc cylindres-carter |
| 15 |
0306322 |
BOLT, Water pump |
| 16 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 17 |
0582317 |
TERMINAL BLOCK |
| 18 |
0329182 |
VIS, borne This part replaces 0327569. |
| 19 |
5005440 |
THERMOSTAT This part replaces 0378065. |
| 20 |
0323582 |
SEAL, Thermostat |
| 21 |
0330818 |
GASKET, Cylinder head This part replaces 0320533. |
| 22 |
0322323 |
SCREW |
| 23 |
0322404 |
EXHAUST COVER, Outer |
| 24 |
0318926 |
EXHAUST COVER, Inner |
| 25 |
0318925 |
GASKET, Exhaust cover |
| 26 |
0306778 |
ECREW,Exhaust cover,1-3/8"long |
| 27 |
0581778 |
REDRESSEUR |
| 29 |
0315287 |
SCREW |
| 31 |
0386939 |
PARK PLUG,AC M40FFX |
| 31 |
0386941 |
SPARK PLUB,Champion L77J4 |
| 31 |
0502180 |
SPARK PLUG, Champion QL77JC4 This part replaces 0387633. |
| 34 |
0316491 |
SCREW, Anchor block to manifold |
| 35 |
0319414 |
DETENT, Shift hook |
| 36 |
0306409 |
VIS, collecteur vers carter-moteur |
| 37 |
0315287 |
SCREW |
| 41 |
0319127 |
PIN, Clevis lever to lock lever |
| 42 |
0319066 |
LINK, Shift lever to lock lever |
| 42 |
0323656 |
LINK, Shift lever to lock lever |
| 44 |
0318955 |
CLEVIS, Link to bellcrank |
| 47 |
0306407 |
LOCCKWASHER,Cover latch |
| 48 |
0322407 |
STOP, Shift lock |
| 49 |
0323657 |
SHIFT LEVER |
| 49 |
0387257 |
LEVER & HUB ASSY., Shift lock |
| 51 |
0319415 |
SCREW |
| 53 |
0581293 |
BRACKET & SWITCH, Netural start |
| 56 |
0395699 |
STARTER SWITCH This part replaces 0386457. |
| 61 |
0376349 |
FIL, masse |
| 62 |
0321887 |
HOSE, Indicator |
| 63 |
0320890 |
SUPPORT, Detent |
| 65 |
0314254 |
CLAMP This part replaces 0310620. |
| 68 |
0323655 |
PIVOT NUT, Link to shift lever |
| 69 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 70 |
0123024 |
SHIFT LOCK STOP |
| 71 |
0328051 |
SPRING, Pressure release This part replaces 0323586. |
| 72 |
0324314 |
RETAINER, Thermostat |
