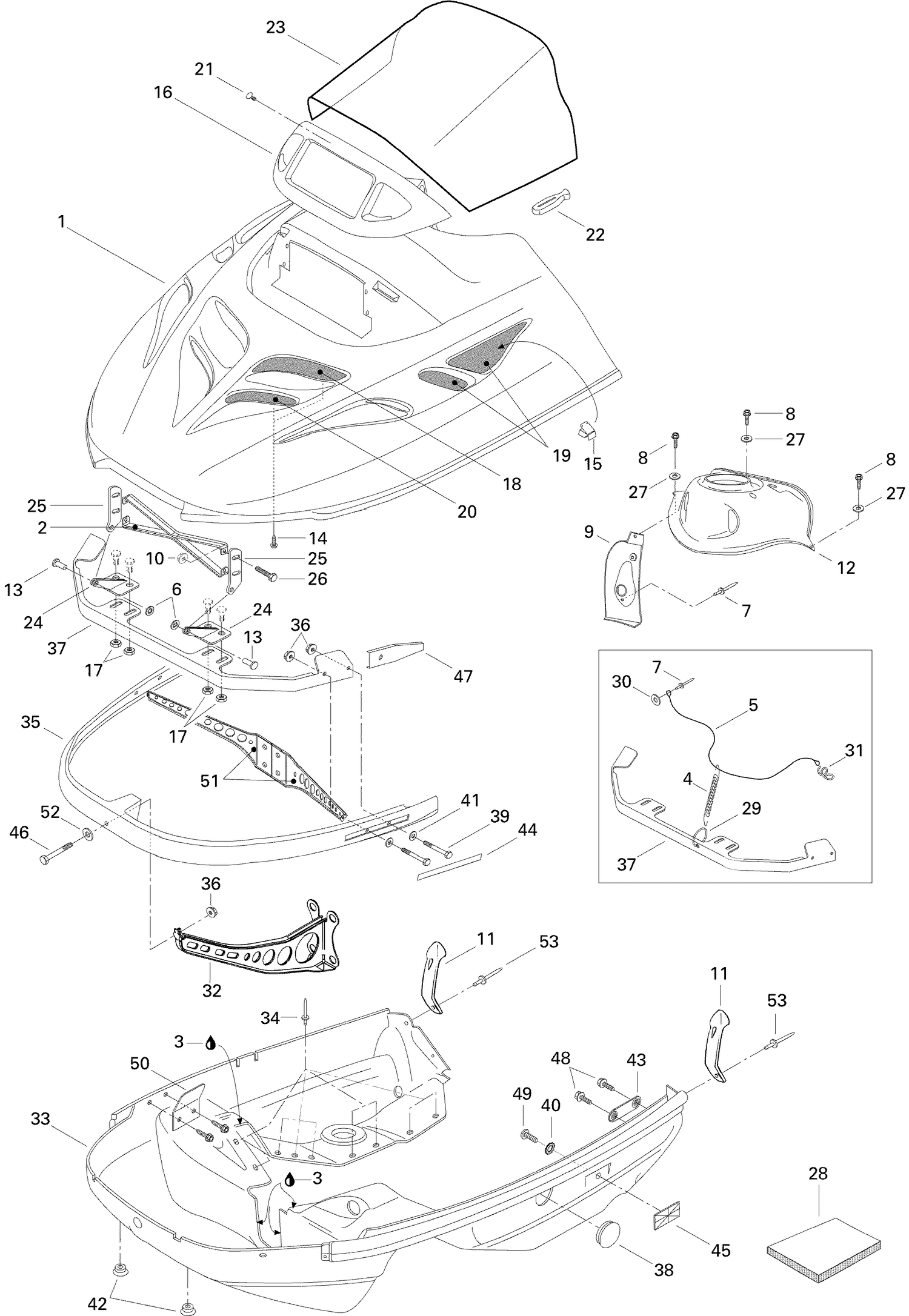

09- Cab And Console
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 572077138 | Cab (Yellow) |
| 2 | 517278100 | Hood Reinforcement |
| 3 | Not | Available As Spare Part - Silicone Sealant |
| 4 | 414763300 | Spring |
| 5 | 415007300 | Cab Retainer Cable |
| 6 | 389804300 | Push Nut |
| 7 | 390406500 | Pop Rivet 3/16" |
| 8 | 210251650 | Hex. Forming Screw M5 X 16 This part replaces 732600008. |
| 9 | 572052101 | Handle Dash |
| 10 | 233251434 | Flange Elastic Nut M5 This part replaces 228751045. |
| 11 | 570027100 | Hood Latch |
| 12 | 572052700 | Dash-Switch |
| 13 | 390906200 | FLAT HEAD STEEL RIVET - Call your local BRP dealership |
| 14 | 732601210 | HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership |
| 15 | 414227300 | Clip |
| 16 | 572079200 | Lamp Moulding |
| 17 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 18 | 517277000 | RH Upper Grill |
| 18 | 517277100 | LH Upper Grill |
| 19 | 517280200 | Side Grill (Black) |
| 20 | 517265800 | RH Front Grill |
| 20 | 517265900 | LH Front Grill |
| 21 | 414644300 | Black, Dart |
| 22 | 570023800 | Windshield Latch |
| 23 | 414976800 | Low Windshield |
| 24 | 517261000 | Lower Hinge |
| 25 | 517261100 | UPPPER HINGE - Call your local BRP dealership |
| 26 | 207151644 | Hex. Screw M5 X 16 This part replaces 222051665. |
| 27 | 391301600 | Washer |
| 28 | 414631900 | Acoustic Foam |
| 28 | 414632400 | Acoustic Foam |
| 29 | 414192100 | Ring |
| 30 | 517124300 | Washer |
| 31 | 517262800 | Bracket |
| 32 | 517281100 | Front Weld Support |
| 33 | 572076202 | Bottom Pan (Yellow) |
| 34 | 390906800 | Pop Rivet 3/16" This part replaces 390909400. |
| 35 | 517265400 | Front Bumper |
| 36 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 37 | 517265100 | Painted Bracket Hinge |
| 38 | 570053700 | Pan Bottom Cap (Yellow) |
| 39 | 207063544 | Hex. Flange Screw M6 X 35 This part replaces 222063565. |
| 40 | 224151101 | WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 41 | 224061121 | Flat Washer |
| 42 | 572072100 | CAP - Call your local BRP dealership |
| 43 | 517267100 | Side Bracket |
| 44 | 861805523 | Yellow, LH/RH Rear Reflector Kit This part replaces 414886000. |
| 45 | 414510200 | REFLECTOR, AMBER - Call your local BRP dealership |
| 46 | 207064544 | Hex. Screw M6 X 45 This part replaces 222064565. |
| 47 | 517278700 | Support |
| 48 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 732600002. |
| 49 | 208651041 | PHILLIPS SCREW M5 X 10 - Call your local BRP dealership This part replaces 222851065. |
| 50 | 518312500 | Hood-Guide |
| 51 | 517268000 | Support LH |
| 51 | 517268100 | Support RH |
| 52 | 224061201 | Flat Washer |
