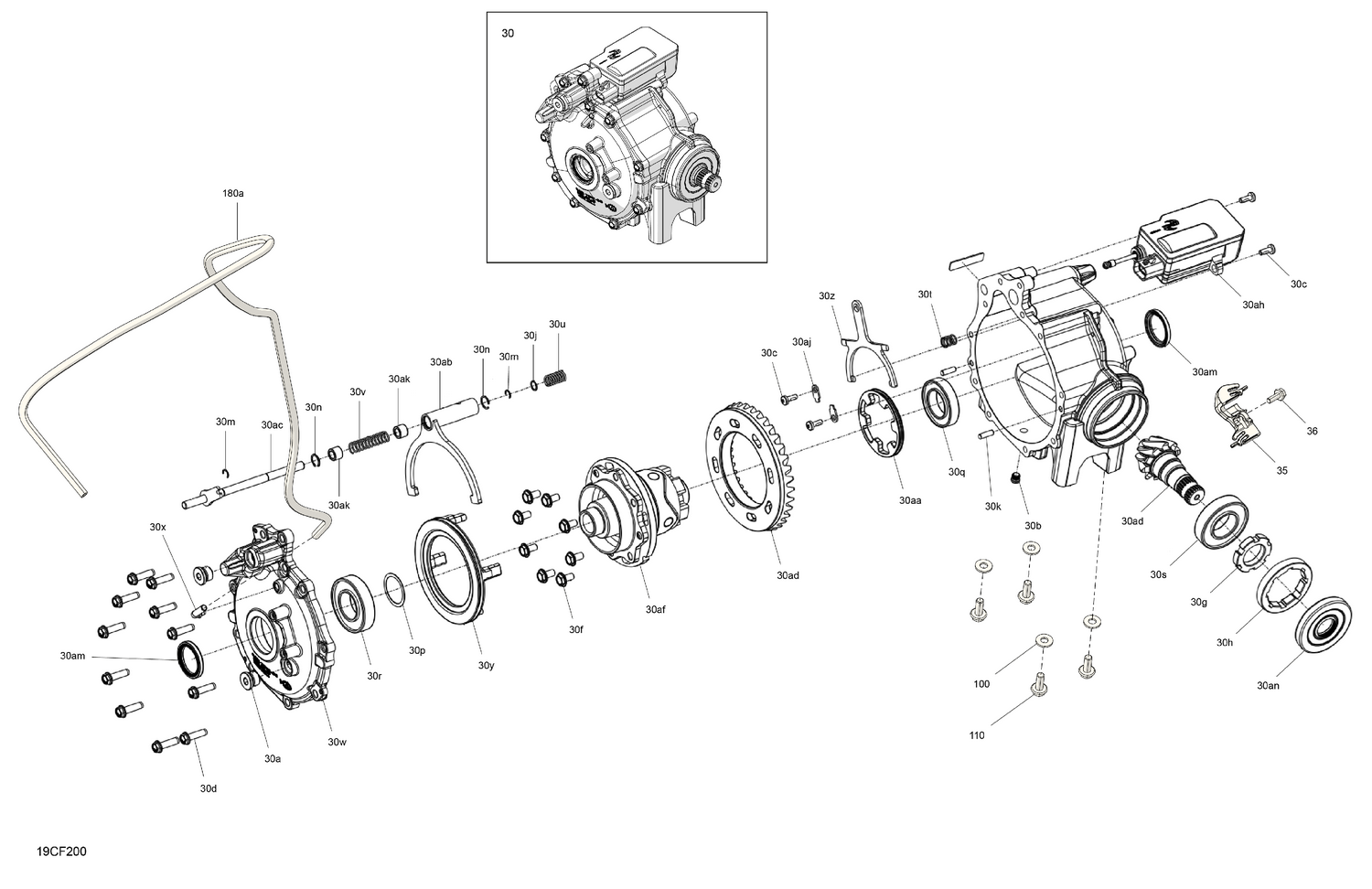

04- Drive - Front - Differential Parts
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 30a | 705501889 | Fill Level Plug |
| 30aa | 715900980 | Dog Lock |
| 30ab | 715900981 | Fork Disconnect |
| 30ac | 715900982 | Shift Rail |
| 30ad | 715900984 | Ring Gear And Pinion Set |
| 30af | 715900995 | Open Differential Subassembly |
| 30ah | 715900986 | Actuator |
| 30aj | 715900766 | Retainer Fork |
| 30ak | 715900987 | Bushing |
| 30am | 715900988 | Oil Seal |
| 30an | 715900880 | Seal Triple Lip 27.5x80.0x11.0 |
| 30b | 715900563 | Fill Level Plug M10 |
| 30c | 705402845 | Torx Screw M6 X 16 |
| 30d | 705501886 | Bolt |
| 30f | 715900798 | Custom Hex Screw Flange Head |
| 30g | 715900847 | Pinion Nut M32 |
| 30h | 715900848 | Pinion Nut M78 |
| 30j | 715900801 | Thrust Washer |
| 30k | 715900559 | Dowel Pin |
| 30m | 715900719 | Ring External Shaft |
| 30n | 715900720 | Ring, Internal Spiral Housing |
| 30p | 705402846 | Shim |
| 30q | 705402847 | Ball Bearing |
| 30r | 705502846 | Ball Bearing |
| 30s | 715901031 | Ball Bearing |
| 30t | 715900802 | Compression Spring |
| 30u | 715900803 | Locker Spring |
| 30v | 715900722 | Spring |
| 30w | 715900989 | Cover |
| 30x | 705401935 | Vent Valve |
| 30y | 715900978 | Disconnect |
| 30z | 715900979 | Front Differential Pivot Fork |
| 35 | 705403892 | ABS Connector Support |
| 36 | 207661654 | Hex. Flange Screw M6 X 16 |
| 100 | 207502546 | Hex. Flange Screw M10 X 25 |
| 110 | 234201474 | Conical Spring Washer 10 mm |
