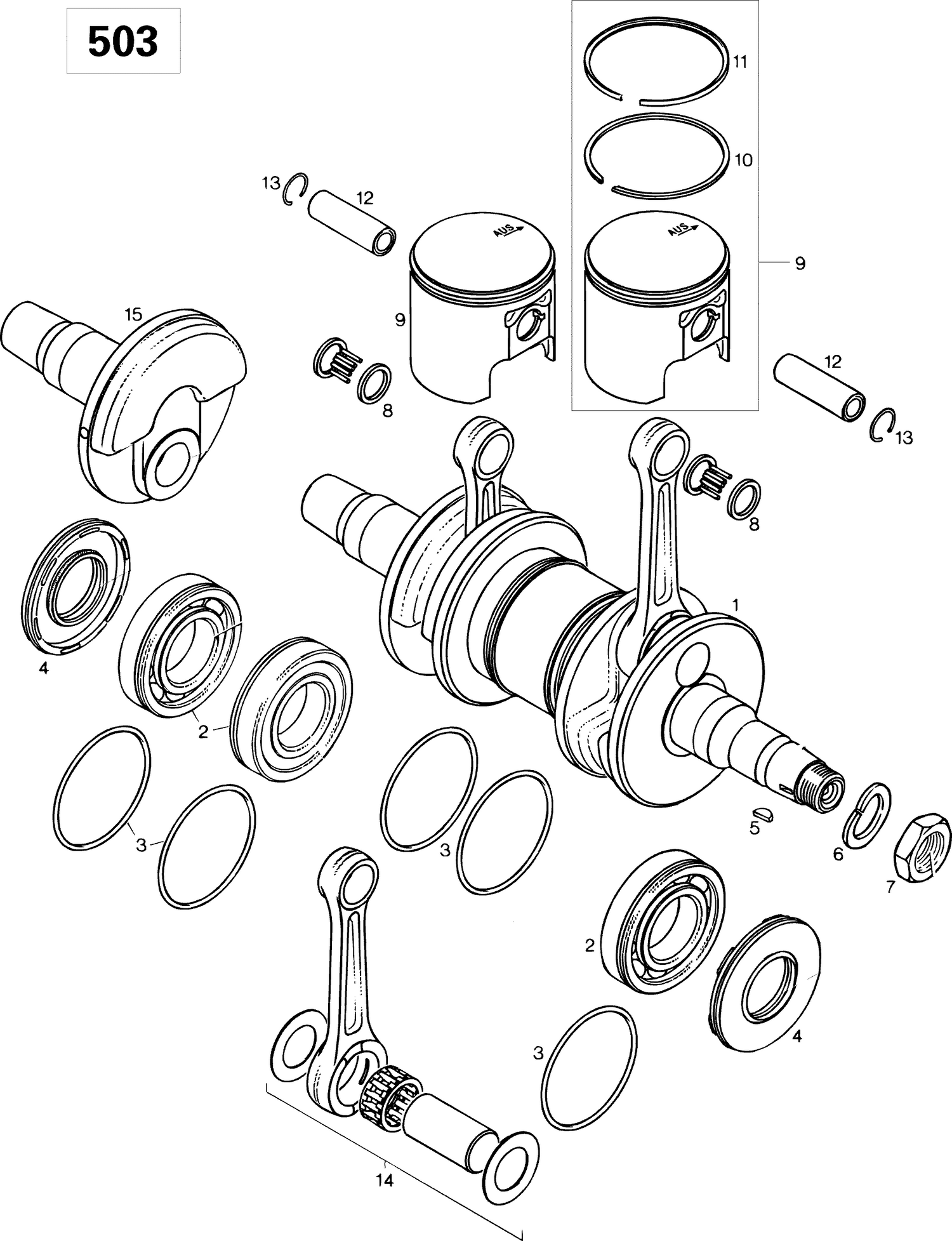

| Ref | Part Number | Description |
|---|
| 1 |
420996446 |
Crankshaft Ass’y |
| 2 |
420832584 |
Bearing_Ball This part replaces 420832231. |
| 3 |
293300022 |
O-Ring, 64 mm X 2 mm This part replaces 420250165. |
| 4 |
420831952 |
Oil Seal This part replaces 420831950. |
| 5 |
420246055 |
Woodruff Key |
| 6 |
420945759 |
Lock Washer, 22 mm |
| 7 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 8 |
420832320 |
Needle Bearing |
| 10 |
420915850 |
RECTANGULAR RING 72 MM, STD - Call your local BRP dealership |
| 10 |
420915851 |
RECTANGULAR RING 72.25 MM, 1ST - Call your local BRP dealership |
| 10 |
420915852 |
RECTANGULAR RING 72.5 MM, 2ND - Call your local BRP dealership |
| 11 |
420215235 |
Semi-Trapez Ring 72.00 mm |
| 11 |
420215236 |
Semi-Trapez Ring 72.25 mm |
| 11 |
420215237 |
Semi-Trapez Ring 72.50 mm |
| 12 |
420916185 |
PISTON PIN - Call your local BRP dealership |
| 13 |
420945735 |
Piston Circlip |
| 14 |
420994564 |
Crankshaft Repair Kit |
