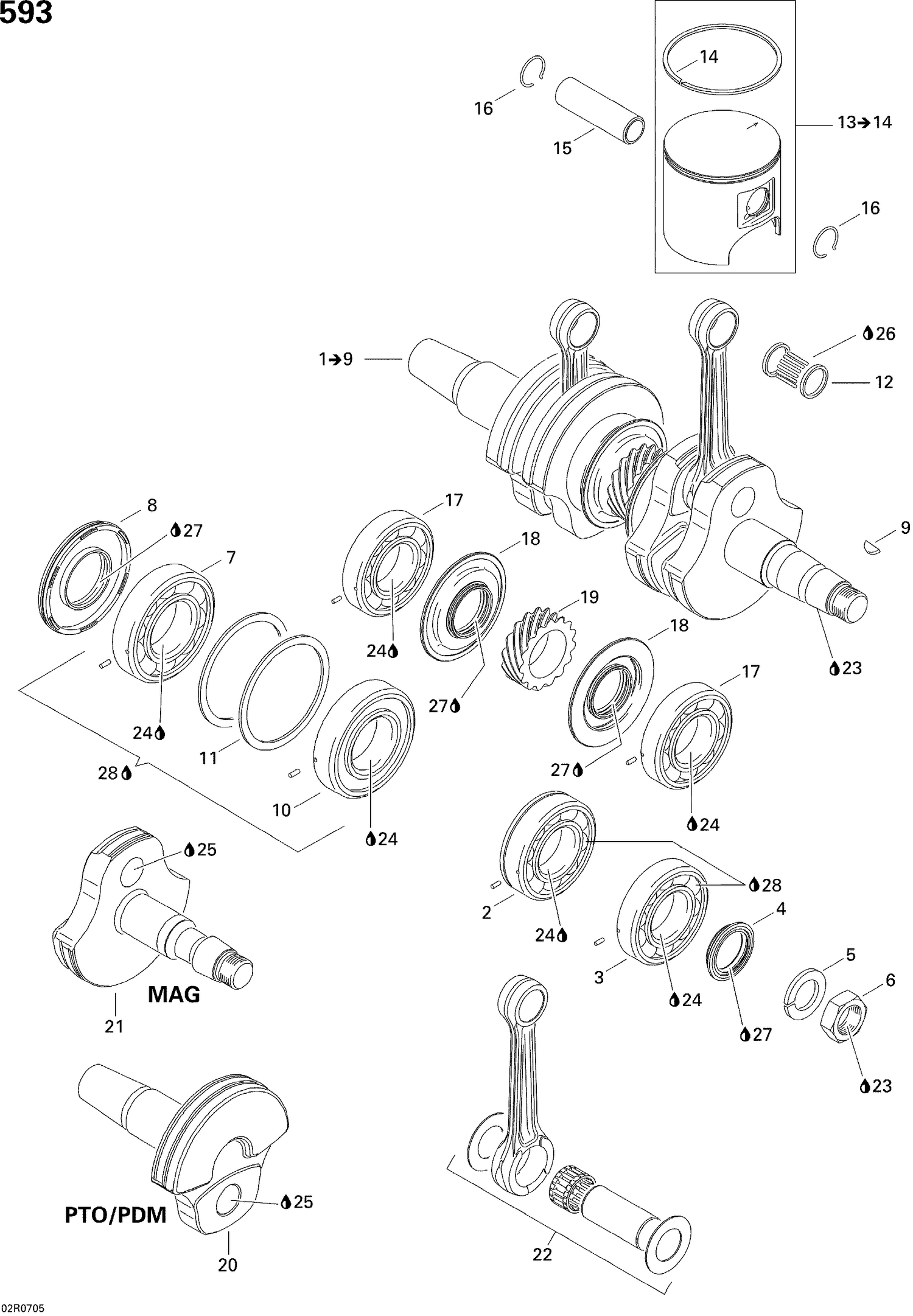

| Ref | Part Number | Description |
|---|
| 1 |
420890971 |
Crankshaft Ass'y This part replaces 421000611. |
| 2 |
420832596 |
Ball Bearing |
| 3 |
420832590 |
Ball Bearing 6206 |
| 4 |
420931795 |
Oil Seal This part replaces 420931792. |
| 5 |
420945759 |
Lock Washer, 22 mm |
| 6 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842234. |
| 7 |
420832575 |
Ball Bearing 6207 |
| 8 |
420831952 |
Oil Seal |
| 9 |
420246015 |
Woodruff Key |
| 10 |
420832673 |
Ball Bearing Sealed, 6207 This part replaces 420832638. |
| 11 |
420927710 |
Retaining Disk |
| 12 |
420832445 |
Needle Bearing This part replaces 420832428. |
| 14 |
420815155 |
Semi-Trapez Ring, Standard |
| 14 |
420815156 |
Semi-Trapez Ring, 1st |
| 15 |
420916412 |
Piston Pin This part replaces 420916410. |
| 16 |
420845106 |
Piston Circlip |
| 17 |
420832590 |
Ball Bearing 6206 |
| 18 |
420931940 |
Oil Seal |
| 19 |
420834350 |
Central Gear, 15 Teeth |
| 20 |
Not |
Available As Spare Part - Crankshaft, PTO Side |
| 21 |
Not |
Available As Spare Part - Crankshaft, MAG Side |
| 22 |
420890973 |
Rod Repair Kit, MAG Side This part replaces 420888753. |
| 22 |
420890974 |
Rod Repair Kit, PTO Side This part replaces 420888754. |
| 23 |
293800060 |
Loctite 243, 10 ml |
| 24 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 25 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 26 |
779119 |
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900. |
| 27 |
420899271 |
Petamo Grease, GHY133N, 400 g |
