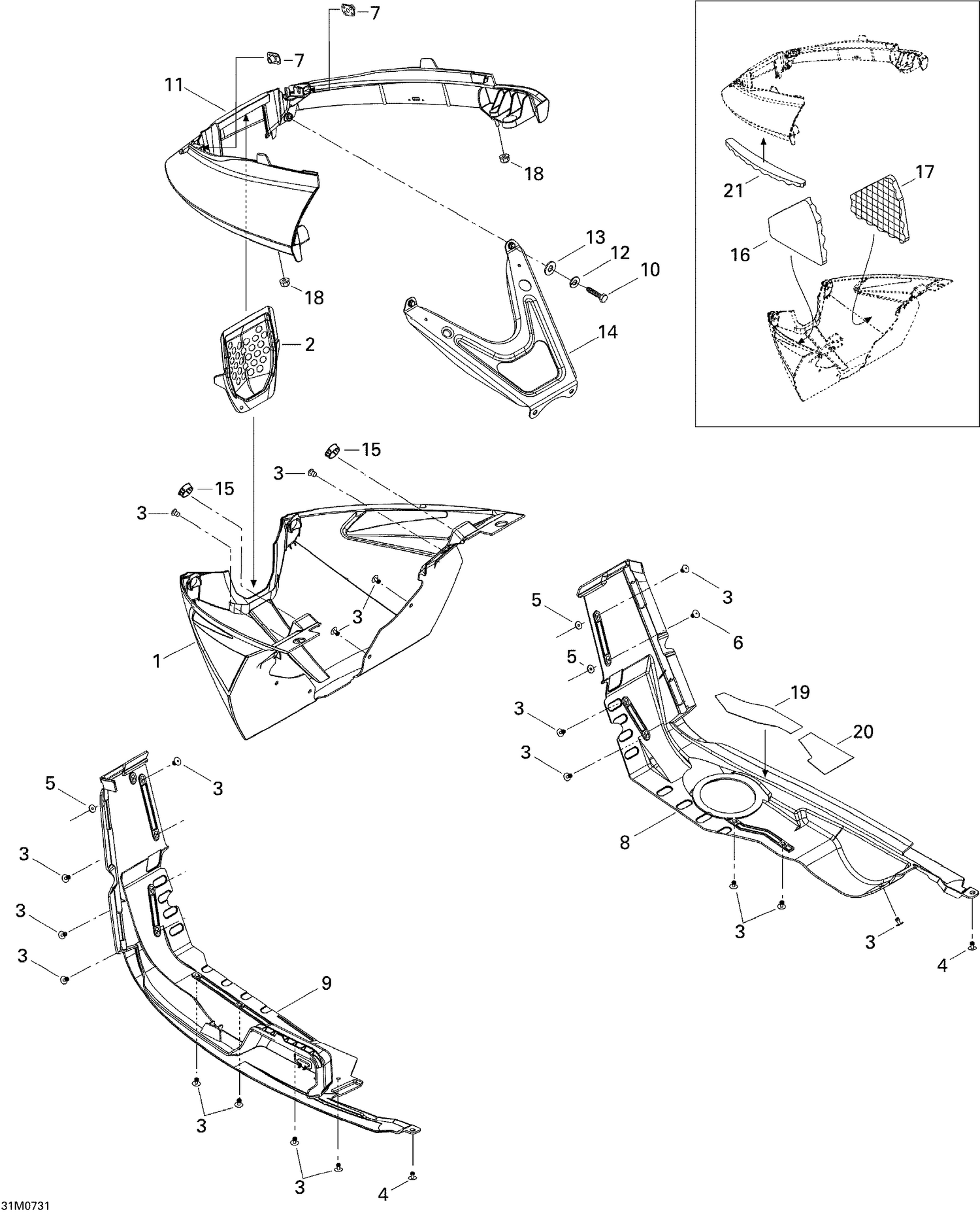

| Ref | Part Number | Description |
|---|
| 1 |
502006821 |
FRONT BOTTOM PAN - Call your local BRP dealership |
| 2 |
502006746 |
BOTTOM PAN GRILL, BLACK - Call your local BRP dealership |
| 3 |
293150104 |
Pop Rivet 3/16" |
| 4 |
293150103 |
Pop Rivet 3/16" |
| 5 |
517124300 |
Washer |
| 6 |
293150043 |
Pop Rivet 3/16" |
| 7 |
293100003 |
Nut Welded, M6 |
| 8 |
502006725 |
RH BOTTOM PAN, BLACK - Call your local BRP dealership |
| 9 |
502006726 |
LH BOTTOM PAN, BLACK - Call your local BRP dealership |
| 10 |
207161444 |
Hex. Screw M6 X 14 |
| 11 |
502006724 |
BUMPER, BLACK - Call your local BRP dealership |
| 12 |
234161471 |
Lock Washer M6, Black |
| 13 |
224061121 |
Flat Washer |
| 14 |
502006772 |
Support |
| 15 |
414916600 |
Black, Nylon Cap |
| 16 |
502006765 |
LH BOTTOM PAN FOAM - Call your local BRP dealership |
| 17 |
502006767 |
RH BOTTOM PAN FOAM - Call your local BRP dealership |
| 18 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 19 |
502006809 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 20 |
502006810 |
REFLECTIVE SHEET - Call your local BRP dealership |
