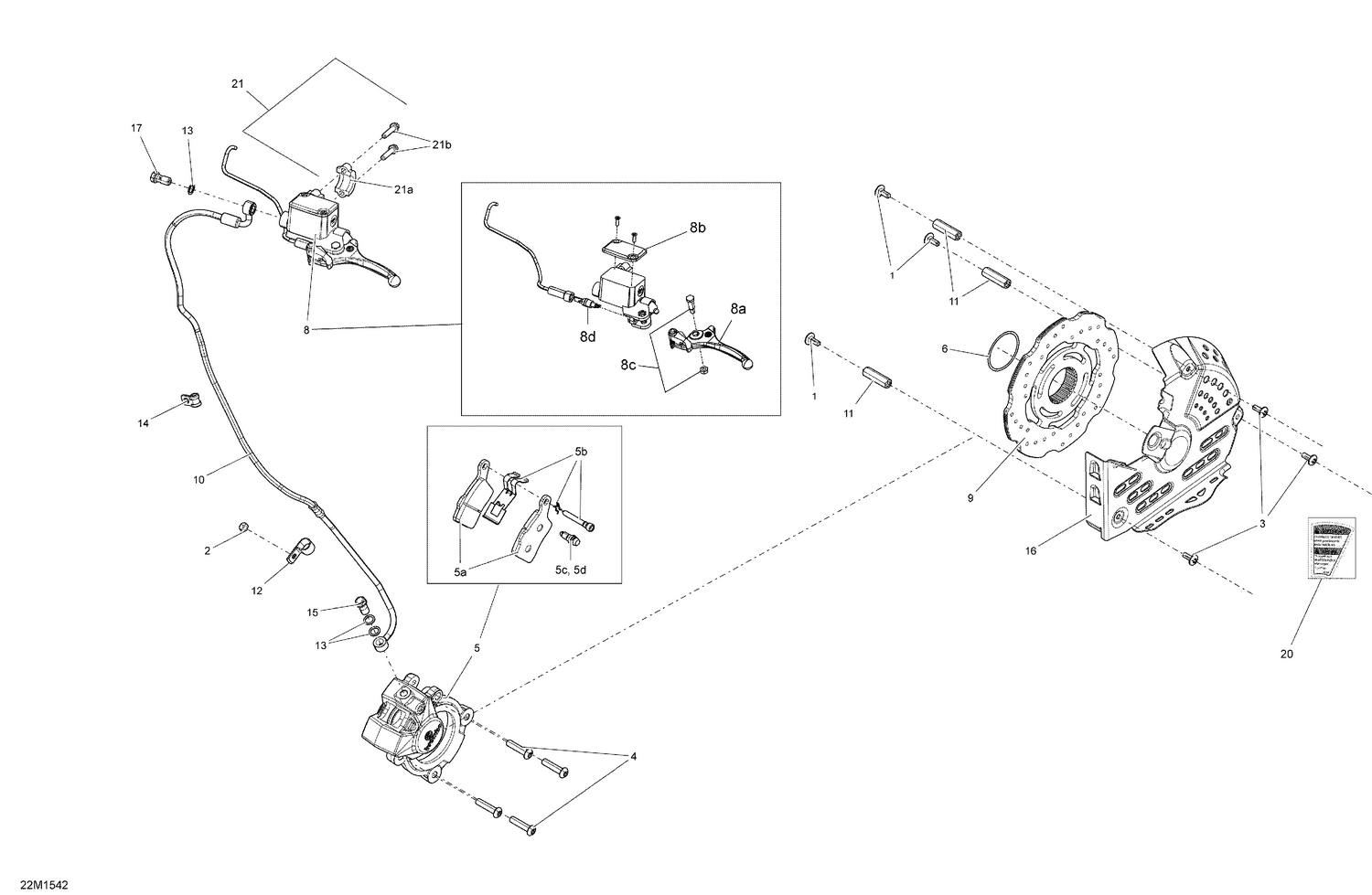

06- Hydraulic Brakes _22M1542
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207761644 | Carriage Bolt M6 X 1.0 X 16 |
| 2 | 232561434 | Elastic Stop Nut M6 |
| 3 | 250000223 | Torx Screw M6 X 16 |
| 4 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 This part replaces 250000301. |
| 5a | 507032489 | Brake Pads Kit |
| 5b | 507032722 | Brake Spring Kit This part replaces 507032474. |
| 5c | 507032475 | Bleeder |
| 5d | 414989700 | BOOT-QTS 20 - Call your local BRP dealership |
| 6 | 293300134 | O-Ring |
| 8a | 507032428 | LEVER - Call your local BRP dealership |
| 8b | 415029900 | Cap |
| 8c | 415030000 | Pin Ass'y |
| 8d | 507032526 | Microswitch |
| 9 | 507032513 | Disk |
| 10 | 507032528 | Hose |
| 11 | 507032533 | THREADED TUBE - Call your local BRP dealership |
| 12 | 518321570 | Open Clamp |
| 13 | 705601628 | Copper Washer This part replaces 705600310. |
| 14 | 293650256 | Clamp This part replaces 705600459. |
| 15 | 507032551 | Banjo Bolt |
| 16 | 507032531 | DISK PROTECTOR, ALUMINUM - Call your local BRP dealership |
| 17 | 507032551 | Banjo Bolt |
| 20 | 516005525 | Warning Decal |
| 21a | 719000049 | Clamps This part replaces 219800081. |
