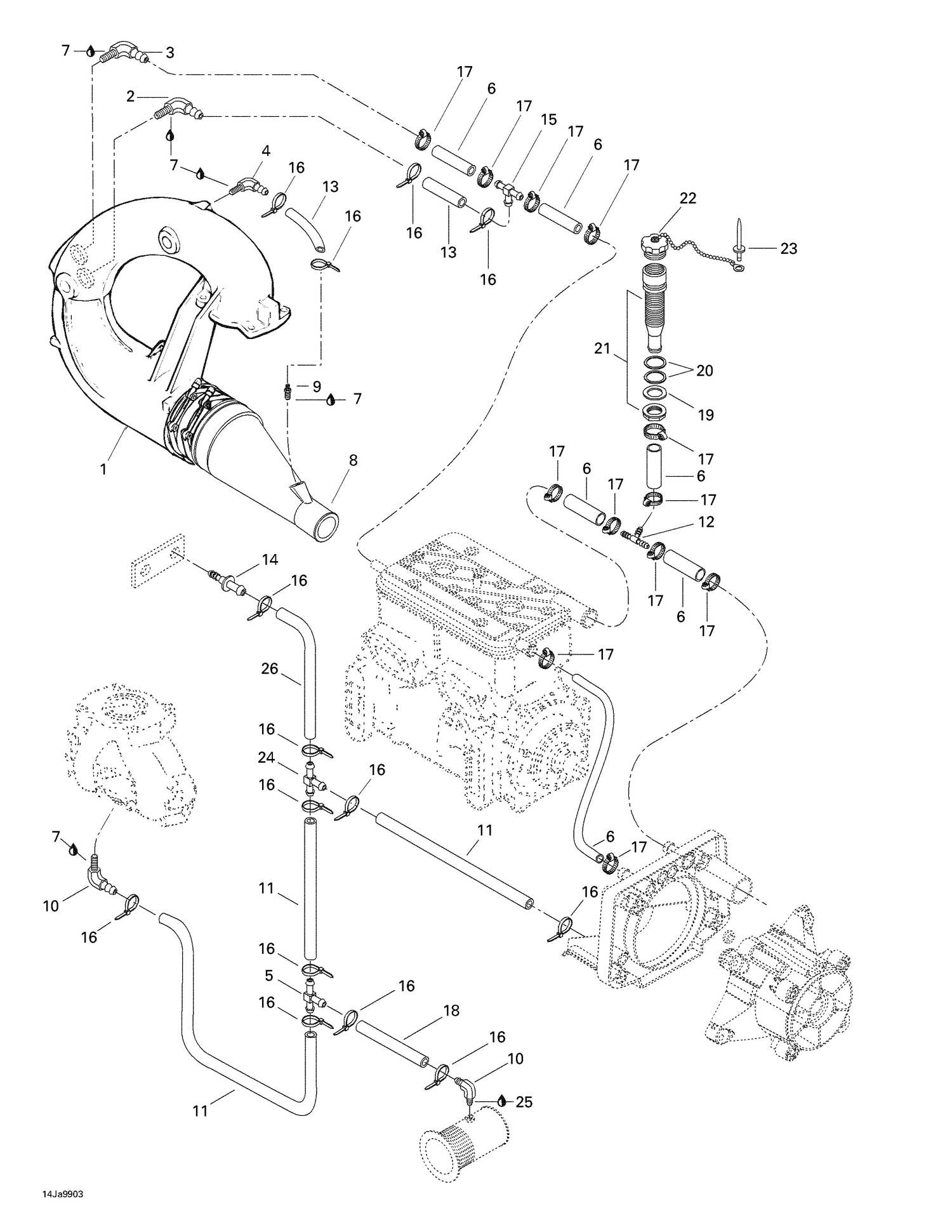

| Ref | Part Number | Description |
|---|
| 2 |
293710048 |
Elbow Fitting 90° |
| 3 |
293700023 |
Elbow Fitting 90° |
| 4 |
293710018 |
Elbow Fitting 90° |
| 5 |
293710061 |
T-FITTING - Call your local BRP dealership |
| 6 |
219704394 |
Was 276000001 Hose 12.5 mm |
| 7 |
219704454 |
Was 293800013 Loctite 56765 |
| 9 |
293710037 |
Male Connector |
| 10 |
293700016 |
Elbow Fitting |
| 11 |
219704412 |
Polyurethane Hose, 8 Mm 3000Mm Long |
| 12 |
293710053 |
T-FITTING - Call your local BRP dealership |
| 13 |
219704360 |
Hose 6 Mm 15000Mm Long |
| 14 |
291000306 |
BLEED FITTING - Call your local BRP dealership |
| 15 |
293710052 |
T-FITTING - Call your local BRP dealership |
| 16 |
293750001 |
Tie Wrap 94 mm |
| 17 |
293650172 |
Tridon Gear Clamp This part replaces 293650037. |
| 18 |
219704412 |
Polyurethane Hose, 8 Mm 3000Mm Long |
| 19 |
293050003 |
WASHER - Call your local BRP dealership |
| 20 |
293250028 |
GASKET - Call your local BRP dealership |
| 21 |
293710081 |
FITTING - Call your local BRP dealership |
| 22 |
293000055 |
PLUG - Call your local BRP dealership |
| 23 |
293150023 |
RIVET_POP 1/8 X ,625 - Call your local BRP dealership |
| 25 |
219704455 |
Was 293800018 Loctite 592, 50 ml |
