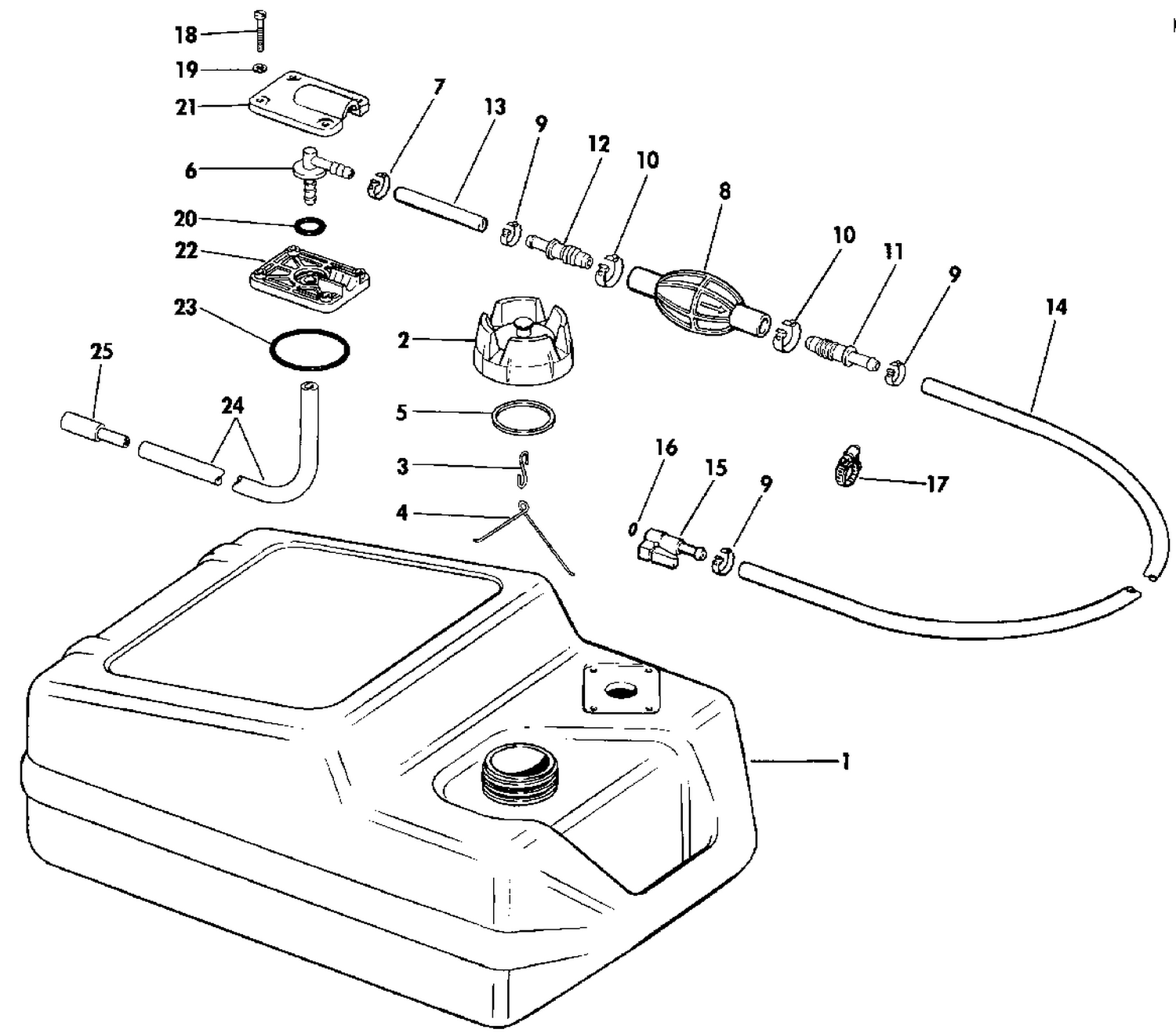

FUEL TANK - ASIA MARKET ONLY
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0173339 | FUEL TANK |
| 2 | 0173341 | CAP ASSY., Fuel tank |
| 6 | 0123232 | ELBOW |
| 13 | 0328787 | CLAMP, Hose, small |
| 14 | 0328491 | HOPE, Long, 72" |
| 18 | 0330336 | SCREW This part replaces 0307534. |
| 20 | 0123528 | O-RING |
| 21 | 0123238 | COVER Fuel outlet to tank |
| 22 | 0123234 | BASE, Fuel outlet |
| 23 | 0123529 | O-RING |
| 0173340 | 0173340 | FUEL TANK |
| 0173639 | 0173639 | FUEL CONNECTOR, Hose & bulb assy. |
| 0322654 | 0322654 | PINCE RAPIDE, flexible d'huile |
