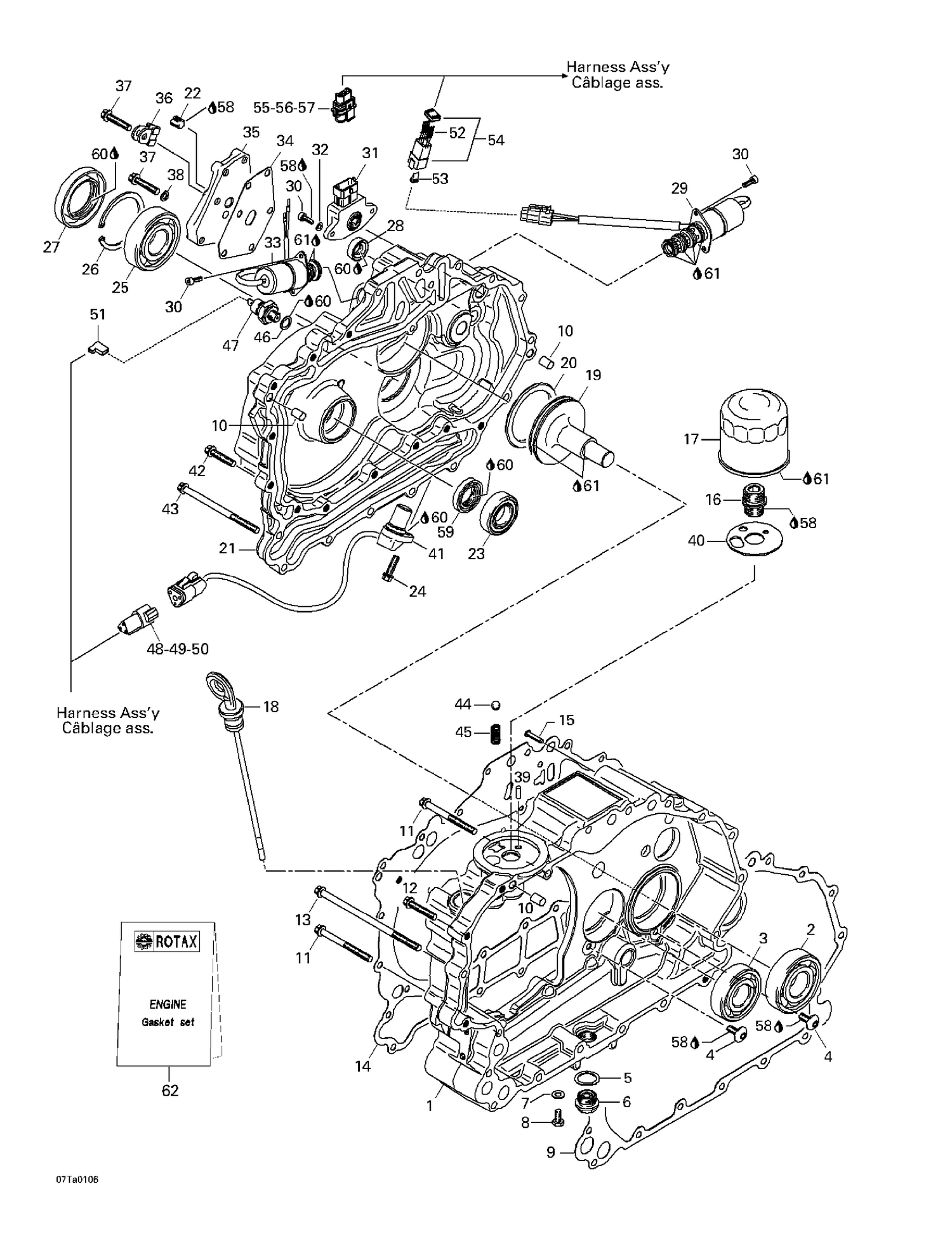

01- Clutch Housing And Cover
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 711211921 | Clutch Housing |
| 2 | 420932822 | Ball Bearing This part replaces 420932825. |
| 3 | 711632200 | Ball Bearing |
| 4 | 711241531 | Flat Head Screw M6 x 16 |
| 5 | 420552280 | Crush Washer This part replaces 711552280. |
| 6 | 420840278 | Drain Plug M18 X 1.5 This part replaces 711840277. |
| 7 | 404146600 | Sealing Washer |
| 8 | 711241751 | Hex. Flange Screw M6 x 16 |
| 9 | 711650582 | Clutch HousingGasket |
| 10 | 420632010 | Center Pin 8 X 12 This part replaces 290632010. |
| 11 | 711940576 | Hex. Flange Screw M6 x 70 |
| 12 | 711941126 | Hex. Flange Screw M6 x 35 |
| 13 | 711640371 | Hex. Flange Screw M6 x 130 |
| 14 | 711650592 | Clutch Cover Gasket |
| 15 | 711229170 | Groove Pin M4 x 20 |
| 16 | 711924420 | Oil Filter Nipple |
| 17 | 420256623 | FILTER OIL - Call your local BRP dealership This part replaces 711256620. |
| 18 | 711256610 | Oil Dipstick |
| 20 | 711650550 | K-Grooved Ring |
| 21 | 711211811 | Clutch Cover |
| 22 | 420240480 | PLUG SCREW - Call your local BRP dealership |
| 23 | 711232190 | Ball Bearing 6304 |
| 24 | 711241861 | Hex. Flange Screw M6 x 20 |
| 25 | 420932822 | Ball Bearing This part replaces 420932825. |
| 26 | 711445070 | RETAINING RING - Call your local BRP dealership |
| 27 | 420650682 | Oil Seal This part replaces 711650680. |
| 28 | 420250455 | Oil Seal This part replaces 711250455. |
| 29 | 711256550 | Soleno‹d Valve |
| 30 | 420440291 | SOCKET HEAD SCREW M4 X 12 - Call your local BRP dealership This part replaces 711440291. |
| 31 | 711265600 | Potentiometer (Sub Transmission) |
| 32 | 420244072 | Flat Washer 4 This part replaces 420244073. |
| 33 | 711256560 | Pressure Valve |
| 34 | 711650620 | Gasket |
| 35 | 711211935 | Oil Duct Cover |
| 36 | 414176000 | Open Clamp This part replaces 711853412. |
| 37 | 711241941 | Hex. Flange Screw M6 x 30 |
| 38 | 420230415 | Seal Washer This part replaces 711230415. |
| 39 | 711232710 | NEEDLE PIN - Call your local BRP dealership |
| 40 | 711627370 | Oil Filter Washer |
| 41 | 420265727 | Camshft Position Sensor Ass'y This part replaces 711265622. |
| 42 | 711241941 | Hex. Flange Screw M6 x 30 |
| 43 | 711640361 | Hex. Flange Screw M6 x 100 |
| 44 | 711232370 | Ball |
| 45 | 711238050 | Spring |
| 46 | 420230150 | Oil Seal This part replaces 711230150. |
| 47 | 710000313 | OIL PRESSURE SWITCH - Call your local BRP dealership This part replaces 711256640. |
| 48 | 409297000 | Male Housing Deutch |
| 49 | 278000631 | Male Terminal |
| 50 | 409207600 | Male Lock, 3 Circuits |
| 51 | 409010300 | Female Terminal |
| 52 | 409014800 | MALE TERMINAL - Call your local BRP dealership |
| 53 | 710000046 | MALE LOCK, 4 CIRCUITS - Call your local BRP dealership |
| 54 | 710000045 | MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 55 | 278000997 | Male Housing, 3 Circuits |
| 56 | 278000999 | Wire Seal |
| 57 | 278000998 | Female Terminal |
| 58 | 293800060 | Loctite 243, 10 ml |
| 59 | 420930392 | Oil Seal This part replaces 290930390. |
| 60 | 413707000 | Dow Corning 111, 150 g |
| 61 | Not | Available As Spare Part - Engine Oil |
