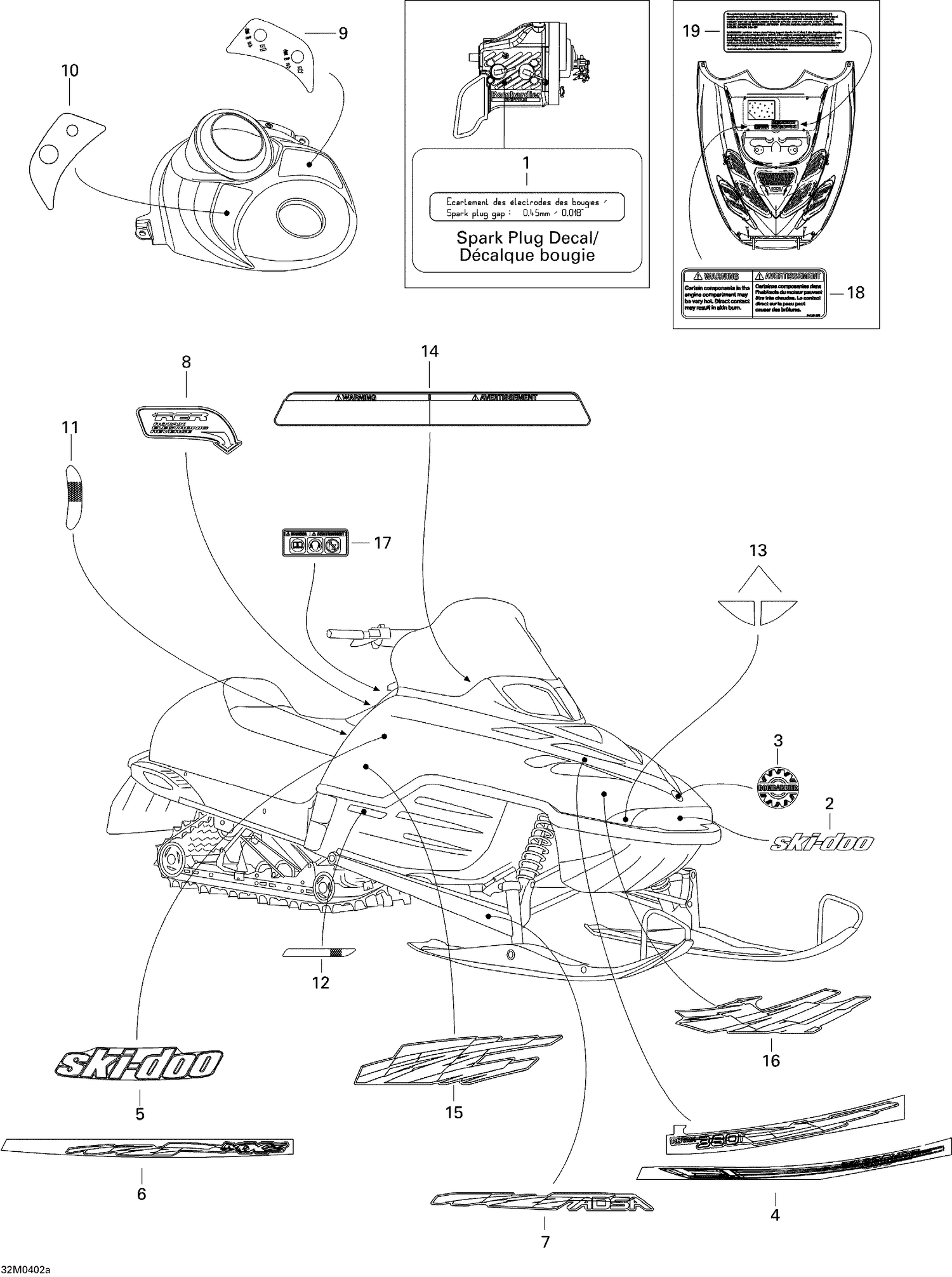

09- Decals (MX Z 550F)
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 516000986 | Spark Plug Decal |
| 2 | 516000261 | Ski-Doo Decal |
| 3 | 516008738 | BRP Logo 48mm This part replaces 516000983. |
| 4 | 415128712 | Kit - Decal «ROTAX 550F» |
| 5 | 415128713 | Kit - Side Decal «Ski-Doo» |
| 6 | 415128714 | Kit - «MX» Side Decal |
| 7 | 415128715 | Kit - Arm Decal |
| 8 | 516001002 | Rer Decal |
| 9 | 516000227 | Heat Thumb Decal |
| 10 | 516001227 | Ingnition Decal |
| 11 | 516000224 | Decal - Reflector Decal |
| 12 | 415064400 | Decal - RH Reflector |
| 12 | 415064401 | Decal - LH Reflector |
| 13 | 415127656 | Reflector Kit |
| 14 | 516002074 | Security Label, Starter Zx |
| 15 | 415128716 | Kit - Side Decal |
| 16 | 415128717 | Kit - Lower Front Decal |
| 17 | 516002703 | Decal, Europe This part replaces 516001296. |
| 18 | 516001297 | Security Label, Hot Parts |
