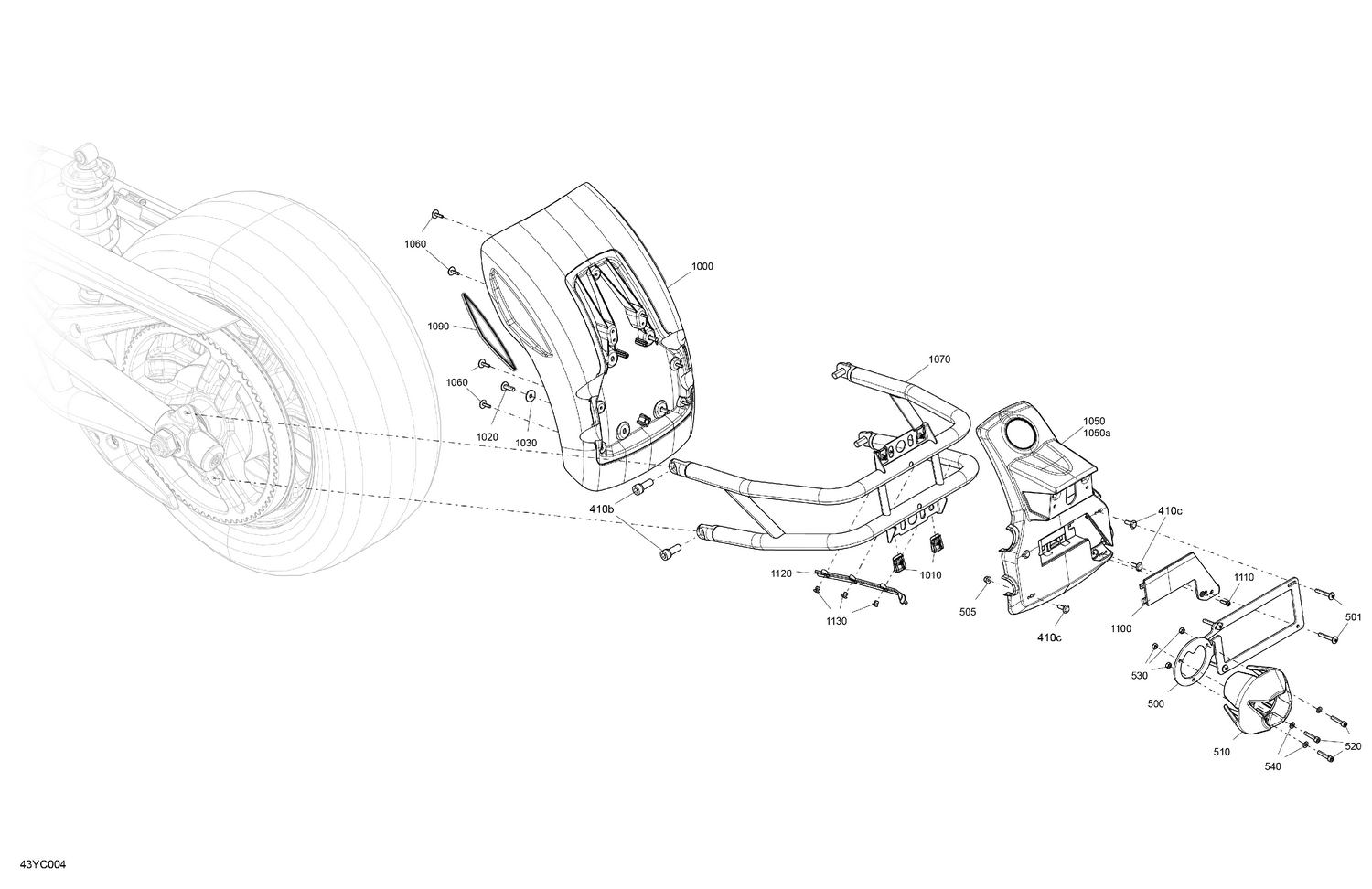

07- Body - Rear Fender
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 410b | 205502560 | Allen Screw S.GRIP M10 X 25 |
| 500 | 719000068 | Support, Fog Light Rear |
| 501 | 250000732 | Torx Screw Nylon |
| 505 | 233251494 | Elastic Flange Nut M5 |
| 510 | 719000067 | Rear Fog Light Guard |
| 520 | 205052588 | Socket Head Screw M5 X 25 |
| 530 | 232051600 | Hex. Nut M5 |
| 540 | 234051670 | Flat Washer M5 |
| 1000 | 705011661 | Rear Fender |
| 1010 | 250100208 | Panel Nut M6 X 1.0 |
| 1020 | 250000705 | Torx Truss Screw M6 X 20 |
| 1030 | 250200082 | Flat Washer |
| 1050a | 705008241 | Rear Fender Moulding |
| 1060 | 250000725 | Screw M4 X 16 |
| 1070 | 705008249 | Carbon Black Rear Fender Support |
| 1090 | 705002423 | Amber, Lateral Reflector |
| 1100 | 705015553 | Cover Moulding |
| 1110 | 250000287 | Flange Torx Screw K40 X 16 |
| 1120 | 706202219 | Cable Cap |
| 1130 | 293150102 | Rivet 3/16" |
