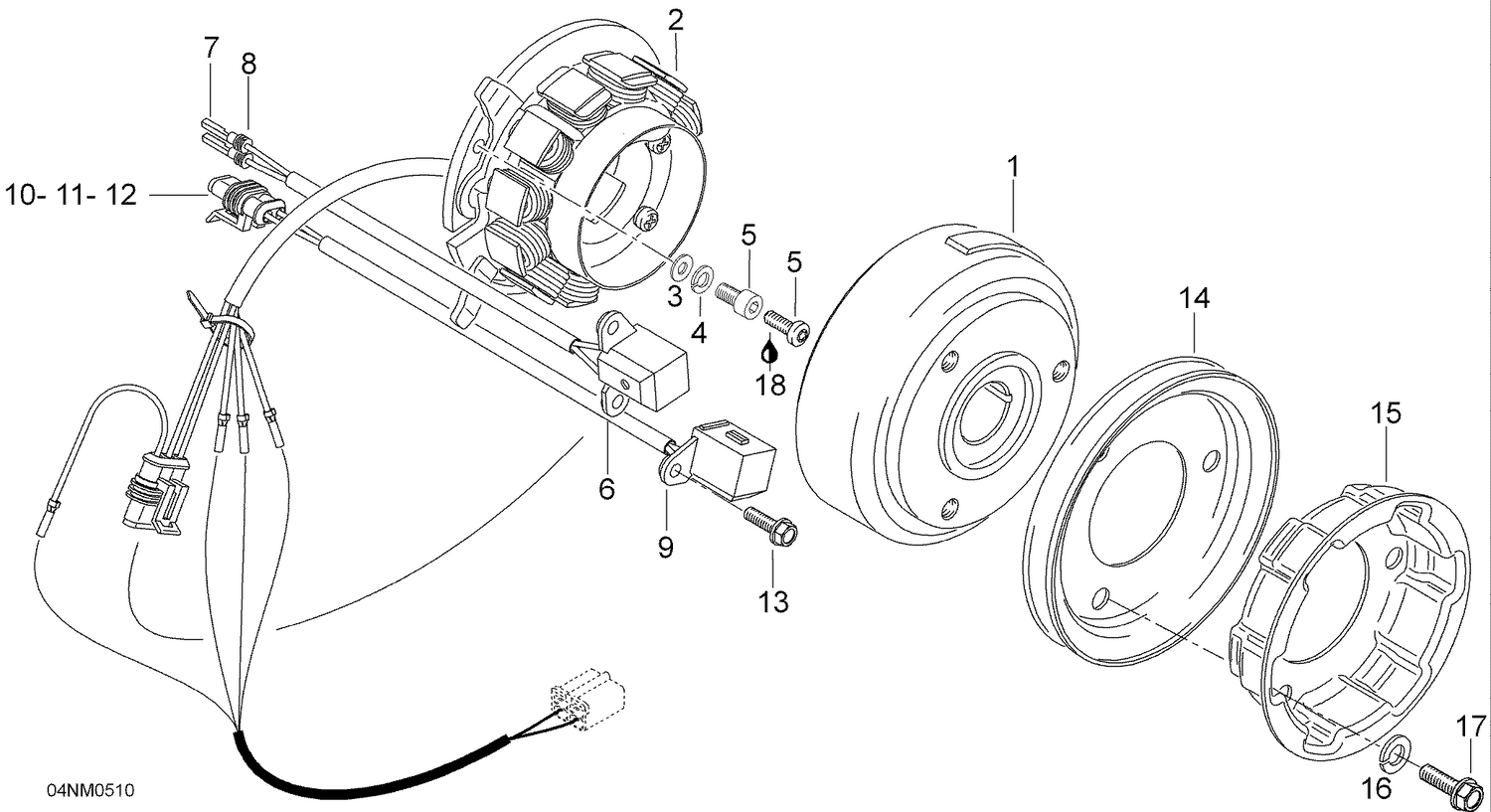

01- Ignition, 400RC
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 420927574 | Washer-5 This part replaces 420927571. |
| 4 | 20013 | Fjäder bricka A5 |
| 7 | 278001014 | Female Terminal |
| 8 | 278001013 | Wire Seal |
| 10 | 409209500 | Female Housing, 2 Circuits |
| 11 | 278001014 | Female Terminal |
| 12 | 278001013 | Wire Seal |
| 13 | 420941928 | Taptite Screw M5 X 16 This part replaces 420941925. |
| 15 | 420852414 | Starting pulley |
| 16 | 420845311 | Lock washer 8 mm |
| 17 | 420440852 | Flanged Torx Screw M8 X 16 |
