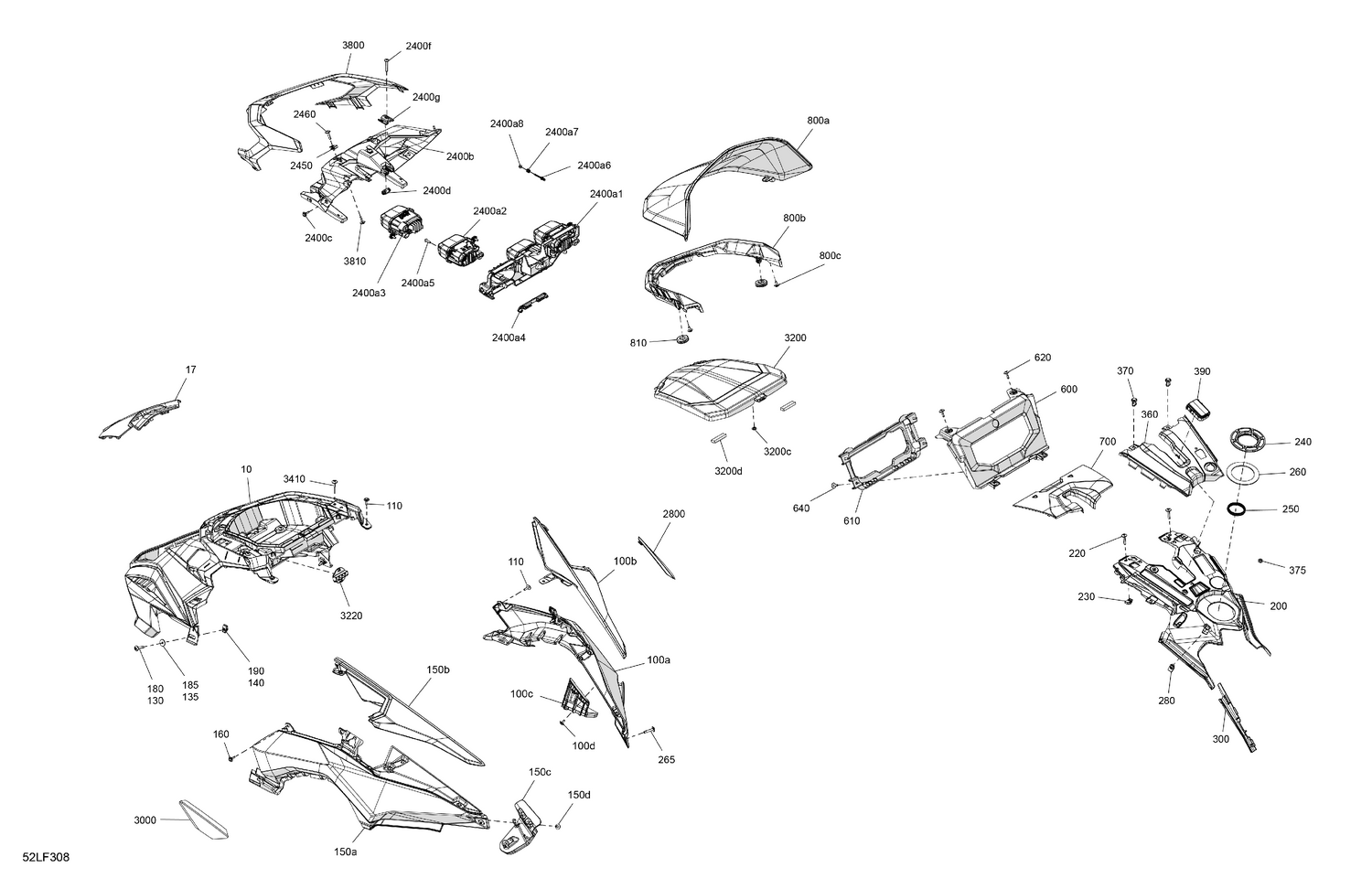

07- Body - Hood Section and WindShield
Parts (62)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 517307812 | Deep Black, Central Hood |
| 17 | 517307815 | Deep Black, Front Central Cover |
| 100a | 517307818 | Deep Black, RH Rear Hood |
| 100b | 517308647 | Deep Black, RH Rear Hood Trim |
| 100c | 517307816 | RH Mounting Clamp |
| 100d | 250000805 | Plastite Screw M4 X 10 |
| 110 | 250000725 | Screw M4 X 16 |
| 130 | 250000587 | Torx Screw M5 X 26 |
| 135 | 250200166 | Washer |
| 140 | 250000958 | Panel Nut M5 X 0.8 |
| 150a | 517307829 | Deep Black, LH Rear Hood |
| 150b | 517308648 | Deep Black, LH Rear Hood Trim |
| 150c | 517307827 | LH Mounting Clamp |
| 150d | 250000805 | Plastite Screw M4 X 10 |
| 160 | 250000725 | Screw M4 X 16 |
| 180 | 250000587 | Torx Screw M5 X 26 |
| 185 | 250200166 | Washer |
| 190 | 250000958 | Panel Nut M5 X 0.8 |
| 200 | 517309817 | Viper Red, Rear Console |
| 220 | 250000587 | Torx Screw M5 X 26 |
| 230 | 250000958 | Panel Nut M5 X 0.8 |
| 240 | 517309507 | Round Slotted Nut |
| 250 | 517309450 | Gasket |
| 260 | 517309451 | Joint |
| 265 | 250000587 | Torx Screw M5 X 26 |
| 280 | 250000958 | Panel Nut M5 X 0.8 |
| 300 | 517309073 | LH Under Console |
| 360 | 517309792 | Front Console |
| 370 | 293150230 | Tuflok Plastic Rivet |
| 375 | 732610072 | Push Nut |
| 390 | 517308759 | Connecting Plate |
| 600 | 517307750 | Gauge Support |
| 610 | 515179034 | Gauge Support |
| 620 | 250000889 | Screw M4 X 16 |
| 640 | 250000725 | Screw M4 X 16 |
| 700 | 517308111 | Access Cover |
| 800a | 517307975 | Low Windshield |
| 800b | 517307973 | Support |
| 800c | 250000805 | Plastite Screw M4 X 10 |
| 810 | 517303756 | Grommet |
| 2400a1 | 517307862 | Headlight Support |
| 2400a2 | 710008089 | Low Beam Light |
| 2400a3 | 710006911 | High Beam Light |
| 2400a4 | 517309294 | Pivot Support |
| 2400a5 | 250000759 | Torx Truss Pt K40 X 16 |
| 2400a6 | 517309133 | Threaded Rod |
| 2400a7 | 517309058 | Compression Spring |
| 2400a8 | 517309134 | Specialized Nut |
| 2400b | 517308162 | Deep Black, Headlight Trim |
| 2400c | 250000725 | Screw M4 X 16 |
| 2400d | 517308229 | Molded Housing Nut |
| 2400f | 250001286 | Torx Screw M5 X 40 |
| 2400g | 517309293 | Clip |
| 2450 | 250000958 | Panel Nut M5 X 0.8 |
| 2460 | 250000586 | Torx Truss M5 X 20 |
| 2800 | 517309208 | RH Rear Cap |
| 3000 | 517309209 | LH Rear Cap |
| 3200c | 732610072 | Push Nut |
| 3200d | 517308246 | Joint Seal |
| 3220 | 517308260 | Box Cap |
| 3410 | 250000889 | Screw M4 X 16 |
| 3800 | 517308755 | Platinum Silver, Headlight Trim |
