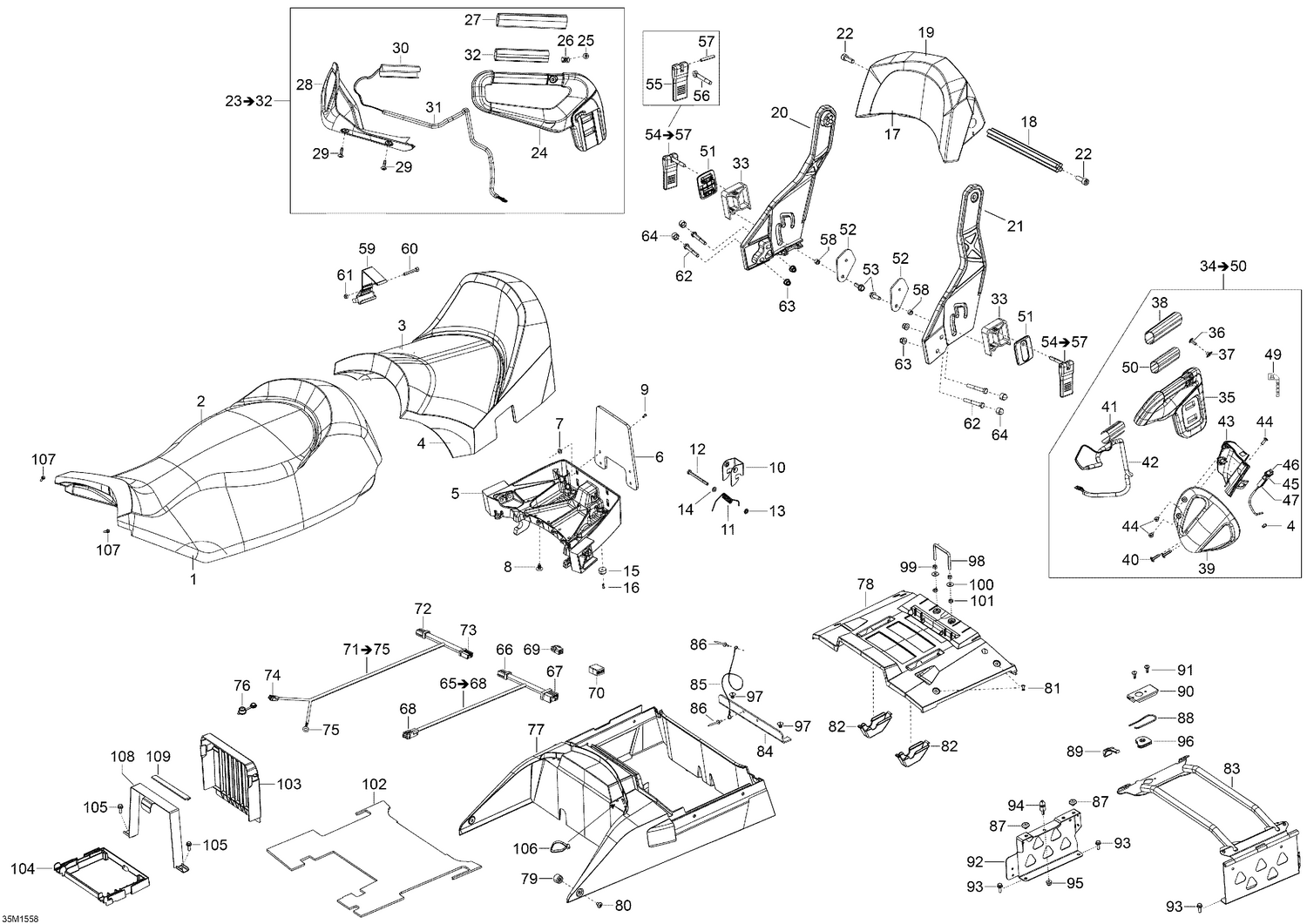

| Ref | Part Number | Description |
|---|
| 1 |
510005807 |
Front Seat Foam |
| 2 |
510005724 |
Cover, front |
| 3 |
510005256 |
Cover rear |
| 4 |
510005811 |
Rear Seat Foam |
| 5 |
510004816 |
Seat Base |
| 6 |
510005330 |
Backrest Plate |
| 7 |
234062410 |
Flat Washer 6 mm |
| 8 |
414644300 |
Black, Dart |
| 9 |
293150210 |
Rivet |
| 10 |
708000144 |
Latch, Black |
| 11 |
708000369 |
Spring |
| 12 |
207068044 |
Hex. Screw M6 X 80 |
| 13 |
732610072 |
Push Nut |
| 14 |
234061410 |
Flat Washer 6 mm |
| 15 |
510006005 |
Stopper Rubber |
| 16 |
293150015 |
Pop Rivet 1/8” |
| 17 |
510005833 |
FOAM BACKREST - Call your local BRP dealership |
| 18 |
605355357 |
BACKREST AXLE - Call your local BRP dealership |
| 19 |
510005259 |
Backrest Cover |
| 20 |
510005420 |
RH Arm |
| 21 |
510005419 |
LH Arm |
| 22 |
250000553 |
Forming Screw M10 x 25 |
| 24 |
510005865 |
RH HANDLE - Call your local BRP dealership |
| 25 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 26 |
293100003 |
Nut Welded, M6 |
| 27 |
510004449 |
Handle Grip |
| 28 |
510004415 |
RH Deflector |
| 29 |
250000961 |
Screw 25MM This part replaces 250000199. |
| 30 |
515176393 |
Heater |
| 31 |
219704426 |
Was 515175506 Tubing |
| 32 |
510004709 |
HANDLE REINFORFORCEMENT - Call your local BRP dealership |
| 33 |
510004939 |
Adapter |
| 35 |
510005862 |
LH Handle |
| 36 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 37 |
293100003 |
Nut Welded, M6 |
| 38 |
510004449 |
Handle Grip |
| 39 |
510004416 |
LH Deflector |
| 40 |
250000961 |
Screw 25MM This part replaces 250000199. |
| 41 |
515176393 |
Heater |
| 42 |
219704426 |
Was 515175506 Tubing |
| 43 |
510004566 |
Switch Housing |
| 44 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 45 |
510004413 |
Rocker Switch |
| 46 |
510004414 |
Switch Protector |
| 47 |
515176241 |
LH HANDLE HARNESS - Call your local BRP dealership |
| 48 |
414115200 |
Tie-Rap 180 mm |
| 49 |
516002835 |
HANDLE HEATER DECAL - Call your local BRP dealership |
| 50 |
510004709 |
HANDLE REINFORFORCEMENT - Call your local BRP dealership |
| 51 |
510006602 |
Passenger Handle Trim This part replaces 510004405. |
| 52 |
510004990 |
Counter Plate |
| 53 |
250000376 |
Hex Forming Screw DIN.7500D |
| 55 |
5243419 |
Lock |
| 56 |
510004993 |
Screw |
| 57 |
414821400 |
Pin |
| 58 |
510005507 |
Sleeve |
| 59 |
510005139 |
Security Lock |
| 60 |
205064044 |
Socket Screw HD.DIN.912 |
| 61 |
232561434 |
Elastic Stop Nut M6 |
| 62 |
207686044 |
Hex. Flange Screw M8 x 60 |
| 63 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 64 |
28056 |
Cover |
| 66 |
515175231 |
Female Terminal |
| 66 |
515175495 |
Female Housing, 3 Circuits |
| 67 |
515175231 |
Female Terminal |
| 67 |
515175819 |
Female Terminal Housing, 8 Circuits |
| 68 |
Not |
Available As Spare Part - RCA Plug |
| 69 |
515175494 |
Male Housing, 3 Circuits |
| 70 |
515175817 |
Male Terminal Housing, 8 Circuits |
| 72 |
515175231 |
Female Terminal |
| 72 |
515175495 |
Female Housing, 3 Circuits |
| 73 |
515175232 |
Male Terminal |
| 73 |
515175494 |
Male Housing, 3 Circuits |
| 74 |
Not |
Available As Spare Part - RCA Plug |
| 75 |
515175172 |
OPEN BARREL - Call your local BRP dealership |
| 76 |
572103300 |
Cap |
| 77 |
510006243 |
Storage Box This part replaces 510004874. |
| 78 |
510006244 |
Storage Box Cover This part replaces 510005604. |
| 79 |
510005147 |
Bushing |
| 80 |
250000675 |
Torx Truss Screw M6 x 12 |
| 81 |
293150104 |
Pop Rivet 3/16" |
| 82 |
510004999 |
Cover |
| 83 |
510005714 |
Lock tube |
| 84 |
510005156 |
Cable Support Plate |
| 85 |
293750070 |
Seat Retainer Cable |
| 86 |
390402200 |
Pop Rivet 3/16" |
| 87 |
605452114 |
Plug |
| 88 |
269700017 |
Latch Spring |
| 89 |
510005072 |
Puller |
| 90 |
510005698 |
Lock Pin Cover |
| 91 |
250000676 |
Forming Screw M5 x 16 |
| 92 |
510005845 |
Locking Plate |
| 93 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 94 |
605452035 |
LOCK PIN - Call your local BRP dealership |
| 95 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 96 |
510005044 |
Lock Pin Guide |
| 97 |
293150104 |
Pop Rivet 3/16" |
| 98 |
510004876 |
FASTENER PIN - Call your local BRP dealership |
| 99 |
250000135 |
Hex. Nut M6 |
| 100 |
20117 |
Washer |
| 101 |
232561434 |
Elastic Stop Nut M6 |
| 102 |
510005043 |
Foam |
| 103 |
510005079 |
Battery Cover |
| 104 |
515176804 |
Battery Support |
| 105 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 106 |
605627000 |
Tie-Rap |
| 107 |
250000676 |
Forming Screw M5 x 16 |
| 108 |
510005250 |
Battery Strap |
