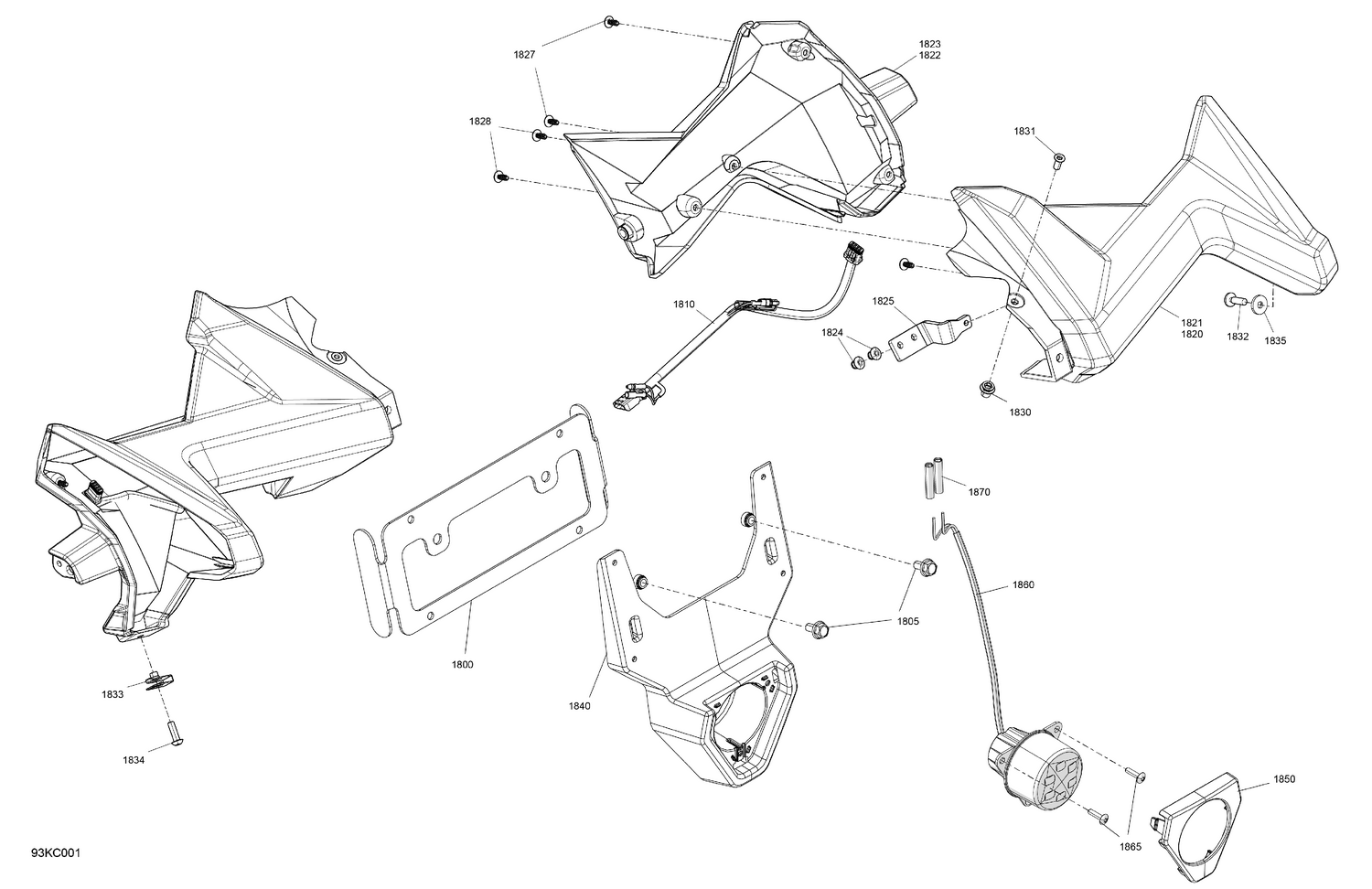

09- Miscellaneous - Taillight - Japan - Conformity Kit
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1800 | 706004834 | Rear Licence Plate Support Ass'y |
| 1805 | 207661254 | Hex. Flange Screw M6 X 12 |
| 1810 | 710006493 | Taillight Wiring Harness |
| 1820 | 710008238 | LH Rear Taillight Support |
| 1821 | 710008239 | RH Taillight Support |
| 1822 | 710006342 | LH Taillight Trim This part replaces 710008240. |
| 1823 | 710008241 | RH Taillight Trim |
| 1824 | 293150102 | Rivet 3/16" |
| 1825 | 710006572 | RH Reinforcement |
| 1827 | 250001034 | Torx-Truss Screw K40 X 10 |
| 1828 | 250000759 | Torx Truss Pt K40 X 16 |
| 1830 | 293450267 | Insert M5 - 0.8 |
| 1831 | 250000319 | Phillips Screw M5 x 12 |
| 1832 | 250000720 | Torx Screw K50 X 16 |
| 1833 | 250100176 | Panel Nut M5 X 0.8 |
| 1834 | 250000578 | Torx Truss Screw M5 X 16, T25 |
| 1835 | 234052400 | Flat Washer 5 mm, Stainless |
| 1840 | 710006547 | Support Back-up Light |
| 1850 | 710006564 | Trim Back-up Light |
| 1860 | 710006390 | Back-up Light |
| 1865 | 250000759 | Torx Truss Pt K40 X 16 |
