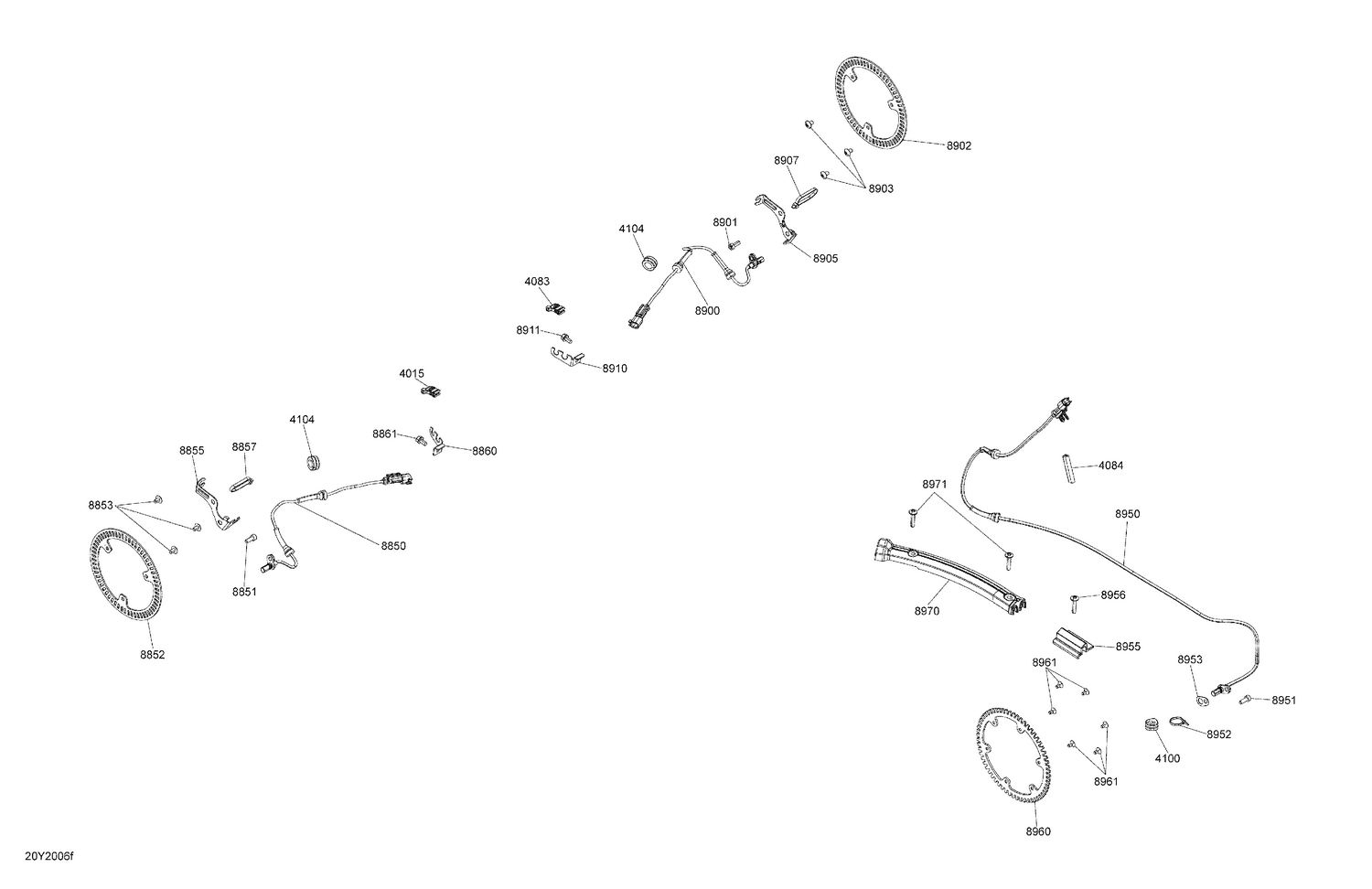

10- Electrical System ABS Speed Sensors
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 4015 | 710005037 | Clip Tie-Rap |
| 4083 | 710005037 | Clip Tie-Rap |
| 4084 | 219704354 | Trim 1000Mm Long |
| 4100 | 293720084 | Grommet |
| 4104 | 293720095 | Grommet |
| 8850 | 710006981 | Speed Sensor |
| 8851 | 205561660 | Socket Head Screw M6 X 16, Scotch Grip |
| 8852 | 705601512 | Front Sensor Wheel |
| 8853 | 250000995 | Torx-truss M/s M6 X 10 |
| 8855 | 710004860 | LH Support Wire |
| 8857 | 414115200 | Tie-Rap 180 mm |
| 8860 | 710003156 | Speed Sensor Holder |
| 8861 | 210261250 | Hex. Flange Screw M6 X 12 |
| 8900 | 710006981 | Speed Sensor |
| 8901 | 205561660 | Socket Head Screw M6 X 16, Scotch Grip |
| 8902 | 705601512 | Front Sensor Wheel |
| 8903 | 250000995 | Torx-truss M/s M6 X 10 |
| 8905 | 710004861 | RH Support Wire |
| 8907 | 414115200 | Tie-Rap 180 mm |
| 8910 | 710003157 | Speed Sensor Holder |
| 8911 | 210261250 | Hex. Flange Screw M6 X 12 |
| 8950 | 710006982 | Speed Sensor |
| 8951 | 205561660 | Socket Head Screw M6 X 16, Scotch Grip |
| 8952 | 293750001 | Tie Wrap 94 mm |
| 8953 | 710002023 | Shim |
| 8955 | 710002145 | Hose Support |
| 8956 | 250000843 | Torx Truss Screw M6 X 30 |
| 8960 | 705601372 | Sensor Wheel |
| 8961 | 205851036 | Socket Head Screw M5 X 10 |
| 8970 | 710004281 | Protector |
